Android’s architecture extends beyond application execution into defense-in-depth security, trusted boot, vendor integration, AI acceleration and cross-device computing.

Category: Mobile Operating Systems / Android / Operating System Architecture

Updated: August 17, 2026
Reading Time: 11 minutes

In One Sentence

Modern Android is increasingly defined not only by its application and hardware architecture but by a security model spanning the entire platform and an emerging AI architecture that connects system services, specialized processors, applications and multiple device categories.



Key Highlights

  • Android uses defense in depth rather than relying on a single security mechanism.
  • The Android application sandbox isolates applications using Linux-based process and identity mechanisms.
  • SELinux provides mandatory access control across Android processes, including privileged processes.
  • Verified Boot establishes a chain of trust from a hardware-protected root of trust through the bootloader and verified partitions.
  • Android uses cryptographic verification and update mechanisms to protect system integrity.
  • Hardware-backed security provides stronger protection for keys and sensitive operations.
  • Vendor and OEM customization extends into multiple Android partitions and interfaces rather than being limited to a visual “skin.”
  • Modern Android is increasingly integrating AI capabilities into system-level services and specialized hardware.
  • AOSP documentation now describes an NPU Manager as a framework system service for coordinating NPU model loading and execution priorities.
  • Android’s architecture increasingly spans smartphones, tablets, foldables, watches, vehicles, TVs and XR devices.
  • The long-term direction is toward a more intelligent, secure and cross-device computing platform.

Introduction: Security Is Part of the Architecture

The first two parts of this series examined how Android is constructed.

We began with the foundation:

AOSP → Linux → ACK/GKI → HAL → Native Components → ART

We then moved upward:

Framework → System Services → Binder/AIDL → Applications

But the architecture would be incomplete without one additional dimension:

Security.

Android connects applications to highly sensitive resources.

A smartphone contains:

  • personal photographs;
  • messages;
  • contacts;
  • location history;
  • microphones;
  • cameras;
  • financial applications;
  • authentication credentials;
  • private documents;
  • biometric information.

A secure operating system therefore cannot simply make these resources available.

It must control them.

Android’s security model uses multiple mechanisms, including application isolation, permissions, secure IPC, application signing, SELinux and trusted boot mechanisms.

This is known as defense in depth.

1. Application Sandbox

The Android application sandbox is one of the foundational security mechanisms.

AOSP explains that Android uses Linux user-based protection to identify and isolate application resources, assigning each application a unique UID and running it within its own process.

Conceptually:

Application A
     │
     └── Isolated Process / Identity

Application B
     │
     └── Isolated Process / Identity

Application C
     │
     └── Isolated Process / Identity

The objective is straightforward:

One application should not automatically be able to access another application’s private resources.

This protects both applications and the operating system from malicious or compromised software.

2. Permissions

Sandboxing is not sufficient by itself.

Legitimate applications sometimes need access to sensitive resources.

A navigation application requires location.

A camera application requires camera access.

A video-conferencing application may require camera and microphone access.

Android therefore uses permissions to regulate access to protected capabilities.

The security architecture becomes:

APPLICATION
      ↓
SANDBOX
      ↓
PERMISSION MODEL
      ↓
PROTECTED SYSTEM RESOURCE

This creates multiple control points.

3. Binder Security

Binder also participates in Android’s security architecture.

Applications and system services communicate through IPC.

The system can associate requests with the calling process and apply appropriate authorization controls.

Conceptually:

Application
      ↓
Binder Request
      ↓
System Service
      ↓
Identity / Authorization
      ↓
Allow / Reject

Binder is therefore not merely a convenience for software communication.

It is part of Android’s process and privilege architecture.

4. SELinux

Android uses Security-Enhanced Linux, or SELinux, to enforce mandatory access control.

AOSP explicitly states that Android uses SELinux to enforce MAC over all processes, including processes running with root or superuser privileges.

This is extremely important.

Traditional Unix-style permissions alone do not provide sufficient protection for a modern mobile operating system.

SELinux adds another policy layer.

Conceptually:

PROCESS
   ↓
SELINUX POLICY
   ↓
PERMITTED / DENIED
   ↓
RESOURCE

Even a process with significant privileges can be constrained by SELinux policy.

5. Mandatory Access Control

The distinction between discretionary and mandatory access control matters.

Traditional discretionary access control allows permissions to be associated with users, groups and resources.

SELinux introduces mandatory policy enforcement.

The system’s security policy determines what a process is permitted to do.

This provides stronger system-wide restrictions.

Android therefore combines:

Linux process isolation + permissions + SELinux

rather than depending on one mechanism.

6. Verified Boot

Security must begin before Android itself starts.

That is the role of Verified Boot.

AOSP describes Verified Boot as establishing a full chain of trust beginning from a hardware-protected root of trust and extending through the bootloader and verified partitions such as boot, system and vendor.

A simplified chain is:

Hardware Root of Trust
        ↓
Boot ROM / Bootloader
        ↓
Verified Boot
        ↓
Boot / System / Vendor
        ↓
Android

Each stage verifies the integrity and authenticity of the next stage before execution continues.

This protects against unauthorized system modification and certain forms of persistent compromise.

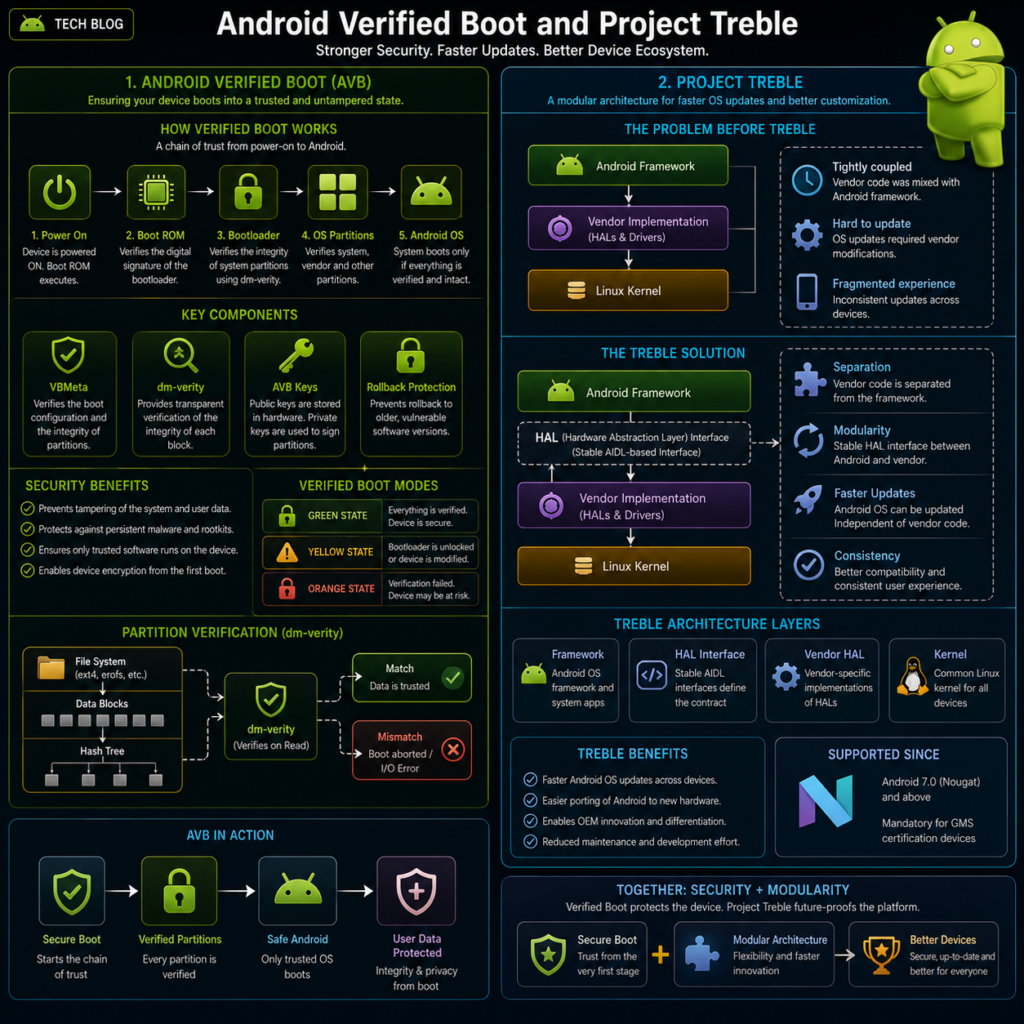

7. Android Verified Boot and Project Treble

Android Verified Boot is closely related to the architecture introduced with Project Treble.

AOSP describes AVB as the Verified Boot implementation designed to work with the Treble architecture, which separates the Android Framework from the underlying vendor implementation.

This is architecturally important because it combines:

Software modularity

with

system integrity

Android therefore attempts to separate platform and vendor responsibilities while maintaining a chain of trust across the resulting system.

8. Rollback Protection

Integrity is not the only problem.

An attacker could potentially attempt to install an older but vulnerable software version.

Android’s verified-boot architecture therefore includes mechanisms for rollback protection.

The objective is to prevent devices from silently returning to software versions that should no longer be trusted.

This is especially important when a vulnerability has already been patched.

9. Encryption and Hardware-Backed Security

Modern Android devices can use hardware-backed security mechanisms to protect cryptographic keys and sensitive operations.

The exact implementation depends on the hardware platform.

The architecture can involve:

  • trusted execution environments;
  • secure elements;
  • hardware-backed key storage;
  • cryptographic accelerators;
  • biometric security components.

This creates another boundary between ordinary application execution and highly sensitive security operations.



10. Security Updates

Security architecture is only effective if it is maintained.

Vulnerabilities are discovered continuously.

Google’s Android security team manages vulnerabilities in the Android platform and many core Android applications, while device manufacturers integrate applicable fixes into their products.

This creates an important distinction:

Security architecture

versus

security maintenance

A smartphone may contain excellent security mechanisms but still become increasingly exposed if it stops receiving security updates.

For consumers, software-support duration is therefore part of the device’s security specification.

11. Vendor and OEM Integration

Android’s architecture has to accommodate hardware manufacturers.

A commercial smartphone contains vendor-specific:

  • drivers;
  • firmware;
  • HAL implementations;
  • kernel modules;
  • hardware configurations;
  • security policies.

OEMs also add their own:

  • user interfaces;
  • applications;
  • services;
  • AI;
  • camera processing;
  • device-management tools.

Therefore, the commercial Android architecture is better represented as:

AOSP / ANDROID PLATFORM
        │
        ├── Framework
        ├── System Services
        ├── ART
        ├── Native Components
        └── Kernel Foundation
               │
               ▼
        VENDOR IMPLEMENTATION
        │
        ├── HALs
        ├── Kernel Modules
        ├── Drivers
        ├── Firmware
        └── Hardware
               │
               ▼
        OEM EXPERIENCE
        │
        ├── UI
        ├── Apps
        ├── AI
        └── Services

The actual implementation can overlap these boundaries, but this model better reflects the architecture than describing OEM software as merely a “skin.”

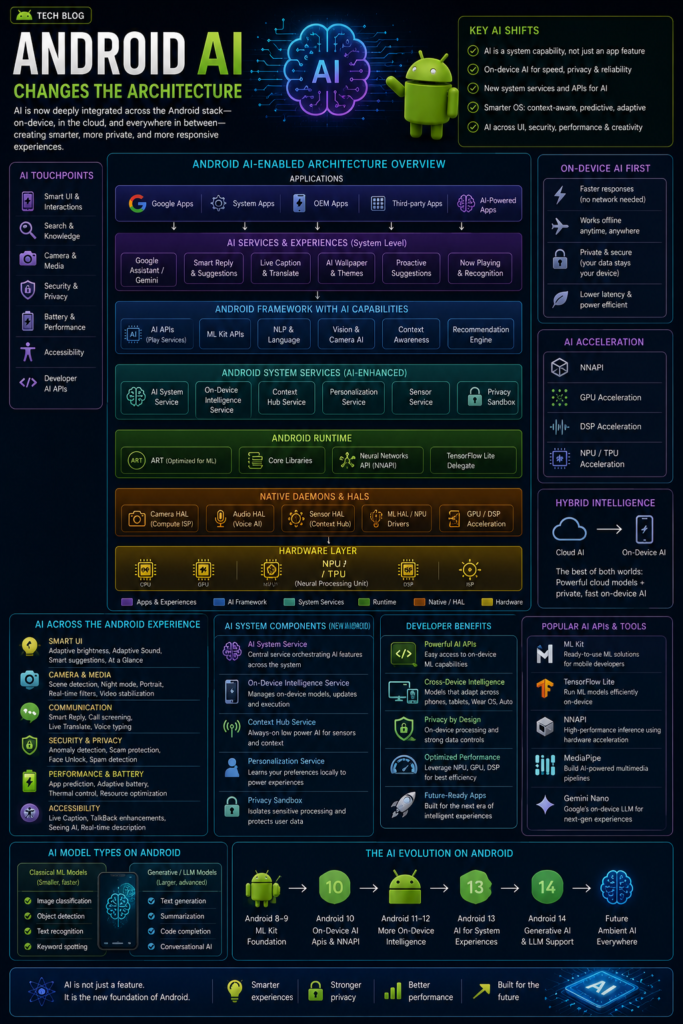

12. Android AI Changes the Architecture

Artificial intelligence introduces a new challenge.

Traditional applications request resources from the operating system.

AI increasingly needs coordinated access to:

  • CPU;
  • GPU;
  • NPU;
  • memory;
  • camera;
  • microphone;
  • storage;
  • networking;
  • personal context.

This means AI increasingly interacts with the operating system itself.

The architecture is moving toward:

USER
 ↓
AI / SYSTEM INTERACTION
 ↓
ANDROID FRAMEWORK
 ↓
SYSTEM SERVICES
 ↓
AI RUNTIME / ACCELERATOR INTERFACE
 ↓
CPU / GPU / NPU

AI is therefore becoming an operating-system concern.

13. The NPU Becomes a System Resource

Modern smartphone SoCs increasingly contain specialized neural-processing hardware.

Android now has architecture for managing NPU resources at the system level.

AOSP documentation describes an NPU Manager implemented as an Android Framework system service named npu. It coordinates model-loading requests and execution priorities and communicates toward an NPU scheduling HAL through an AIDL-based interface.

This is a significant architectural development.

It indicates that AI acceleration is not necessarily being treated simply as an isolated application feature.

Instead, the operating system can participate in managing AI hardware resources.

14. NPU Scheduling

Imagine several applications requesting AI acceleration simultaneously.

For example:

  • camera enhancement;
  • speech recognition;
  • translation;
  • generative AI;
  • image processing.

The NPU has finite capacity.

The operating system therefore needs to consider:

  • priority;
  • memory;
  • thermal state;
  • power;
  • application state;
  • workload duration.

A system-level NPU manager can act as an arbiter between high-level applications and lower-level hardware implementations. AOSP’s current NPU Manager architecture explicitly describes this type of scheduling and model-loading coordination.

This is an early example of AI becoming integrated into OS resource management.

15. On-Device AI

On-device AI provides several potential advantages:

  • lower latency;
  • reduced network dependency;
  • improved privacy;
  • offline operation;
  • potentially better responsiveness.

But it also consumes:

  • compute;
  • memory;
  • storage;
  • battery;
  • thermal capacity.

The operating system therefore becomes responsible for managing AI workloads alongside conventional applications.

16. AI and Privacy

AI creates an unusual security challenge.

A conventional application may request access to one or two resources.

An intelligent system may need contextual access to many:

  • messages;
  • photos;
  • calendar;
  • location;
  • contacts;
  • applications;
  • notifications.

The more capable the AI becomes, the more important operating-system permissions and isolation become.

This means the future Android security model cannot treat AI as merely another application category.

It may need to treat AI as a privileged system capability requiring carefully controlled access.

17. AI Agents and the Application Model

The traditional smartphone interaction model is:

User
 ↓
Open App
 ↓
Perform Task

An emerging model is:

User
 ↓
Express Intent
 ↓
AI Agent
 ↓
Multiple Apps / Services
 ↓
Task Completed

This could fundamentally alter Android’s application architecture.

Instead of manually navigating through several applications, a user might ask the system to coordinate the task.

That creates new requirements for:

  • authentication;
  • permissions;
  • identity;
  • transaction authorization;
  • application interoperability;
  • user confirmation;
  • auditability;
  • privacy.

The operating system becomes an orchestrator.

18. Android Beyond Smartphones

Android’s architecture increasingly extends across device categories.

The broader ecosystem includes:

  • smartphones;
  • tablets;
  • foldables;
  • watches;
  • televisions;
  • automobiles;
  • XR devices.

Each category introduces different constraints.

A watch prioritizes power efficiency.

A car requires automotive-specific integration.

An XR device requires spatial tracking and low-latency graphics.

A television prioritizes large-screen media interaction.

Android’s layered architecture makes it possible to adapt platform technologies to these different environments.

19. Android Automotive

Android Automotive OS is designed to run directly on vehicle hardware.

This is fundamentally different from merely projecting smartphone content into a car.

The operating system must interact with vehicle-specific computing systems and interfaces.

That expands Android’s architectural responsibility from:

personal mobile computing

to:

embedded automotive computing

The security requirements also become substantially more demanding because software interacts with a physical vehicle environment.

20. Wear OS

Wear OS applies Android technologies to watches and wearable devices.

The architecture must account for:

  • small displays;
  • limited battery;
  • continuous sensors;
  • health-related data;
  • wireless connectivity;
  • lightweight interaction.

This demonstrates the adaptability of Android’s software model.

21. Android TV and Large Screens

Android-based television environments change the interaction model again.

The user may interact through:

  • remote controls;
  • voice;
  • large-screen interfaces;
  • streaming applications;
  • connected-device controls.

The underlying Android platform concepts remain useful while the user interface and device services adapt to the environment.

22. Android XR

XR introduces another architectural frontier.

An XR platform must coordinate:

  • cameras;
  • depth sensors;
  • motion tracking;
  • spatial audio;
  • GPUs;
  • displays;
  • low-latency rendering;
  • gesture input;
  • spatial interfaces.

The operating system therefore becomes a spatial-computing coordinator.

Android’s architecture is increasingly evolving from:

screen computing

toward:

contextual and spatial computing.

23. Cross-Device Android

The future is unlikely to consist of isolated devices.

A user may simultaneously operate:

                 SMARTPHONE
                    │
        ┌───────────┼───────────┐
        │           │           │
      TABLET       WATCH       PC
        │           │           │
        └───────────┼───────────┘
                    │
                 VEHICLE
                    │
                SMART HOME

The operating system ecosystem must coordinate:

  • identity;
  • notifications;
  • files;
  • applications;
  • calls;
  • media;
  • AI context;
  • authentication.

The boundary between devices therefore becomes increasingly important.

24. Android’s Architectural Challenge: Fragmentation

Android’s flexibility produces a difficult trade-off.

The platform supports:

  • many manufacturers;
  • many processors;
  • many displays;
  • many hardware configurations;
  • many software experiences.

But this diversity can create fragmentation.

Different devices can have different:

  • OS versions;
  • security-update schedules;
  • OEM interfaces;
  • AI capabilities;
  • hardware acceleration;
  • software-support periods.

Android’s compatibility architecture exists partly to manage this complexity.

25. The Modern Android Architecture

After combining all three parts, the architecture can be represented more accurately as:

                         ANDROID PLATFORM
                                │
                ┌───────────────┴───────────────┐
                │                               │
          APPLICATIONS                    SYSTEM / OEM APPS
                │                               │
                └───────────────┬───────────────┘
                                │
                         ANDROID FRAMEWORK
                                │
                         SYSTEM SERVICES
                                │
                         BINDER / AIDL
                                │
                ┌───────────────┴───────────────┐
                │                               │
               ART                    NATIVE DAEMONS & LIBRARIES
                │                               │
                └───────────────┬───────────────┘
                                │
                         HARDWARE ABSTRACTION
                                │
                         VENDOR IMPLEMENTATION
                                │
                         ANDROID COMMON KERNEL
                                │
                           GKI / MODULES
                                │
                           LINUX KERNEL
                                │
                             HARDWARE

And surrounding this architecture:

SECURITY
├── Application Sandbox
├── Permissions
├── SELinux
├── Binder Security
├── Application Signing
├── Encryption
├── Hardware-Backed Security
├── Verified Boot
└── Update Integrity

While increasingly integrated across it:

AI
├── AI APIs
├── AI Frameworks
├── NPU Management
├── On-Device Inference
├── CPU / GPU / NPU Scheduling
└── AI Agents

This is the architecture Digital Plaza should use as its reference model.

Digital Plaza Analysis

The most important conclusion from the three-part series is that Android should no longer be conceptualized simply as:

Linux + user interface + applications

That description is inadequate for modern Android.

Android is a layered, modular computing platform.

At the bottom, it abstracts highly diverse hardware.

In the middle, it provides runtimes, native services, system services and Framework APIs.

At the application layer, it provides the environment developers and users interact with.

Around the entire architecture, security establishes boundaries.

And increasingly, AI is becoming a cross-layer capability.

This is the most important architectural change underway.

The operating system is evolving from a resource manager into an intelligence and orchestration platform.

The appearance of an NPU Manager in the current AOSP architecture is an especially useful illustration. AOSP describes it as a Framework system service that coordinates NPU model loading and execution priorities, with an AIDL-based interface connecting toward the NPU scheduling HAL.

That is conceptually significant.

It means specialized AI hardware is becoming something the operating system itself must understand and manage.

The Five Architectural Directions

Digital Plaza should track Android’s future through five major architectural directions.

1. Platform Modularity

GKI, HAL interfaces and modular system components are designed to reduce unnecessary coupling between Android and vendor hardware.

2. Security by Architecture

Sandboxing, SELinux, Verified Boot and hardware-backed security make security part of the platform rather than an application add-on.

3. AI as a System Resource

CPU, GPU and NPU resources increasingly have to be coordinated at the operating-system level.

4. Cross-Device Computing

Android technologies are expanding across smartphones, tablets, watches, cars, TVs and XR.

5. Intent-Based Computing

AI agents could eventually shift interaction from manually operating applications toward expressing goals to the operating system.

What This Means for Consumers

The architecture has direct consequences for smartphone buyers.

Consumers should increasingly evaluate:

  • Android version;
  • security-update duration;
  • kernel/platform support;
  • OEM software quality;
  • AI capabilities;
  • NPU capabilities;
  • privacy controls;
  • application ecosystem;
  • cross-device integration;
  • update reliability.

A smartphone is no longer adequately described by:

CPU + RAM + camera + display + battery.

The software architecture determines how effectively those components work together.

What to Watch Next

The most important developments to follow include:

  1. Android 17 and subsequent Android platform releases.
  2. GKI and Android kernel evolution.
  3. AIDL-based HAL expansion.
  4. Vendor interface modularity.
  5. System-level NPU management.
  6. On-device generative AI.
  7. AI agents and application orchestration.
  8. Android security and privacy architecture.
  9. Long-term software-support policies.
  10. Android Automotive and Android XR.
  11. Cross-device Android experiences.
  12. The evolution of the application model itself.

The key question is no longer simply:

“What Android version does this smartphone run?”

The more important question is becoming:

“What can this Android platform securely understand, coordinate, execute and connect across the user’s computing environment?”

Conclusion

The Android operating system is a layered architecture built to solve several difficult problems simultaneously:

hardware diversity, application compatibility, security, performance, power management and increasingly artificial intelligence.

AOSP provides the open-source platform.

The Linux-based kernel establishes the foundation.

ACK and GKI provide a structured kernel architecture.

HALs separate hardware implementation from higher Android layers.

AIDL provides modern interface definitions for IPC and HAL architecture.

Native libraries and daemons provide low-level services.

ART provides the application runtime.

System Services and the Framework provide the operating-system environment.

Applications provide the user-facing software ecosystem.

Security mechanisms operate throughout the stack.

And AI is increasingly becoming another system-level resource that Android must schedule, protect and expose.

That makes modern Android far more than a smartphone operating system.

It is increasingly a general-purpose personal computing platform capable of coordinating software, specialized silicon, connected devices and intelligent services.

The visible Android interface is only the surface.

Beneath it is a carefully structured architecture of kernels, interfaces, runtimes, services, security boundaries, vendor implementations and hardware.

And above it, increasingly, is a new layer of AI-driven interaction and orchestration.

That is the real architecture of Android in the modern era.



Related Articles

  • Android Operating System Architecture Part I: AOSP, Linux Kernel, GKI, HAL and Android Runtime
  • Android Operating System Architecture Part II: Android Framework, System Services, Binder and Application Architecture
  • What Is AOSP? Android Open Source Project Explained
  • Android Common Kernel and GKI Explained
  • Android HAL Architecture Explained
  • AIDL vs HIDL: Android Hardware Interface Architecture
  • Android Security Architecture Explained
  • Android Verified Boot Explained
  • SELinux in Android Explained
  • Android Runtime (ART) Explained
  • Android Binder IPC Explained
  • Android AI Architecture and NPU Computing
  • Android Automotive OS Explained
  • Android XR Explained
  • Android vs iOS Architecture
  • The Future of Mobile Operating Systems

Sources / References

  • Android Open Source Project
  • AOSP Architecture Documentation
  • AOSP Kernel Documentation
  • AOSP HAL Documentation
  • AOSP AIDL Documentation
  • Android Security Documentation
  • Android Verified Boot Documentation
  • Android SELinux Documentation
  • Android Application Sandbox Documentation
  • Android NPU Manager Documentation

Editorial Note: Android architecture changes across releases, device classes and vendor implementations. This series uses the current AOSP architecture as the technical reference point and distinguishes the open-source Android platform from vendor-specific implementations and proprietary ecosystem services. Architecture diagrams are conceptual representations intended to explain relationships between components rather than reproduce every internal process or device-specific implementation.
