HDR & Image Processing Technology Explained: HDR10, HDR10+, Dolby Vision, Tone Mapping, EOTF, PQ and Display Processing

Meta Description

Understand HDR and modern display image processing, from HDR10, HDR10+ and Dolby Vision to HLG, PQ, EOTF, metadata and tone mapping. Learn how peak and sustained brightness, contrast, local dimming, OLED and Mini-LED architectures, wide color gamut, color volume and display processors affect real-world HDR performance. Explore how smartphones, tablets, laptops, monitors and TVs process HDR content through scaling, upscaling, tone mapping, motion processing and AI image enhancement, and why HDR support alone does not guarantee high-quality HDR image reproduction.

In One Sentence

HDR is not simply a “brighter display” feature; it is a content-to-display system involving brightness, contrast, transfer functions, metadata, tone mapping, color volume and image processing, all working together to reproduce a wider range of luminance and color.

Introduction: HDR Is More Than Brightness

HDR stands for:

High Dynamic Range.

The simplest explanation is:

HDR allows an imaging system to represent a much wider range between dark and bright image information than conventional Standard Dynamic Range (SDR).

But that explanation is incomplete.

HDR involves the entire chain:

HDR Content
     ↓
Codec / Format
     ↓
Operating System / Player
     ↓
GPU / SoC
     ↓
Display Processor
     ↓
Tone Mapping
     ↓
Display Driver
     ↓
Panel
     ↓
Backlight / OLED / MicroLED
     ↓
Visible Image

Therefore:

HDR is a system capability, not simply a panel specification.

1. What Is Dynamic Range?

Dynamic range describes the range between the darkest and brightest meaningful image information.

A conventional SDR image has a relatively limited luminance range.

HDR expands that range.

Conceptually:

SDR

Dark ─────────────── Bright


HDR

Dark ─────────────────────────────── Bright

The goal is to preserve more information in:

shadows
highlights
reflections
sunlight
flames
metallic surfaces
bright skies

without sacrificing detail in darker regions.

2. HDR vs SDR

A simplified comparison:

Characteristic	SDR	HDR
Dynamic range	Lower	Higher
Highlight detail	More limited	Greater potential
Shadow detail	More limited	Greater potential
Peak luminance	Lower	Higher
Color representation	More limited	Wider possibilities
Transfer functions	Traditional	HDR-oriented
Metadata	Usually simpler	May include metadata

HDR is therefore not simply:

SDR + higher brightness.

It is a different image-reproduction framework.

3. Why HDR Needs a Capable Display

HDR content can contain extremely bright highlights.

But if the display cannot reproduce those brightness levels, it has to adapt the content.

For example:

HDR Content
   ↓
10,000-nit highlight
   ↓
Display capable of 1,000 nits
   ↓
Tone Mapping
   ↓
Reproduced highlight

The display cannot simply output 10,000 nits if its hardware is physically limited to a much lower level.

This is where tone mapping becomes essential.

4. Peak Brightness

Peak brightness is the maximum luminance a display can produce under a specified measurement condition.

It is commonly expressed in:

nits

or:

cd/m²

These units are numerically equivalent.

A display might advertise:

500 nits
1,000 nits
2,000 nits
4,000 nits

But the number alone does not tell the whole story.

You also need to know:

window size
duration
display mode
temperature
power limits
whether the measurement is full-screen or partial-screen

5. Sustained Brightness

This is different from peak brightness.

A display may produce:

2,000 nits

for a small highlight for a short period.

But it may not maintain that brightness across the entire screen.

Sustained brightness depends on:

thermal limits
power delivery
panel efficiency
backlight
OLED emission
system cooling

Therefore:

Peak brightness tells you what the display can briefly achieve under specified conditions; sustained brightness tells you more about what it can maintain.

6. HDR and Contrast

HDR also requires strong control over dark regions.

A display must reproduce:

very bright highlights

and:

very dark shadows

within the same image.

This is where display architecture becomes critical.

OLED

Can control light at the pixel level.

Mini-LED LCD

Can control light at the backlight-zone level.

Conventional LCD

May have much less precise light control.

Thus, HDR performance depends on both:

brightness

and:

dark-level control.

7. HDR Formats

Several HDR formats are important.

The major ones include:

HDR10
HDR10+
Dolby Vision
HLG

They use different approaches to describing and processing HDR content.

8. HDR10

HDR10 is one of the most widely adopted HDR formats.

It uses:

10-bit video
PQ transfer function
static metadata

The metadata describes the content at the title/program level rather than dynamically changing for every scene.

HDR10 became a foundational HDR format because it is relatively straightforward and broadly supported.

9. HDR10+

HDR10+ builds on HDR10 by adding:

Dynamic metadata.

This allows brightness-related instructions to change across scenes or frames according to the implementation.

Conceptually:

HDR10

Content
  ↓
One metadata set
  ↓
Display


HDR10+

Scene 1 → Metadata 1
Scene 2 → Metadata 2
Scene 3 → Metadata 3

This can provide more sophisticated adaptation to displays with different capabilities.

10. Dolby Vision

Dolby Vision is another HDR ecosystem using dynamic metadata and a broader set of technologies and profiles.

It is designed to preserve HDR information across different display capabilities.

A content master may target a much higher brightness capability than a consumer display can reproduce.

The playback system can then adapt the content through tone mapping and other processing.

11. HLG

HLG = Hybrid Log-Gamma.

It was developed primarily with broadcast and live-content workflows in mind.

One important characteristic is that HLG does not depend on the same metadata model as HDR10 or Dolby Vision.

This makes it particularly useful for:

television broadcasting
live events
HDR broadcast workflows

12. HDR Metadata

Metadata provides additional information about how HDR content should be interpreted.

It can include information about:

mastering display
luminance
content characteristics
color characteristics

Static metadata applies broadly to the content.

Dynamic metadata can vary through the content.

This matters because displays have widely different capabilities.

500-nit laptop

and:

2,000-nit premium TV

cannot reproduce the same HDR master identically.

Metadata and tone mapping help bridge that difference.

13. Tone Mapping

Tone mapping is one of the most important HDR concepts.

Suppose the source contains:

4,000-nit highlight information.

But the display can produce:

1,000 nits.

The system must map the original luminance range into the display’s available range.

Conceptually:

SOURCE
0 ───────────────────── 4000 nits

             ↓

TONE MAPPING

             ↓

DISPLAY
0 ─────────── 1000 nits

A good tone-mapping algorithm attempts to preserve:

highlight detail
overall contrast
artistic intent
shadow information

while staying within the display’s physical capabilities.

14. Static vs Dynamic Tone Mapping

Static approach

The display uses one overall mapping strategy.

Dynamic approach

The system can change the mapping based on:

scene
frame
metadata
display capability

Dynamic approaches can better adapt to rapidly changing content.

But implementation quality matters enormously.

A poor algorithm can cause:

clipped highlights
crushed shadows
excessive brightness
dull images
unnatural contrast

15. EOTF

One of the most technical but important HDR concepts is:

EOTF — Electro-Optical Transfer Function.

It describes the relationship between the encoded signal and the physical light output of the display.

Conceptually:

Digital Signal
      ↓
     EOTF
      ↓
Physical Luminance

A correctly implemented HDR system needs the display to follow the intended transfer relationship closely.

This is essential for accurate reproduction.

16. PQ

PQ = Perceptual Quantizer.

It is an HDR transfer function standardized as part of the HDR ecosystem associated with standards such as SMPTE ST 2084.

PQ maps signal values to absolute luminance levels.

This is different from a traditional relative gamma curve.

That makes PQ particularly suitable for HDR systems where absolute brightness is important.

17. Gamma vs PQ

Traditional SDR gamma

Primarily represents relative luminance relationships.

HDR PQ

Maps signal values toward absolute luminance.

Conceptually:

SDR
Signal → Relative Brightness


HDR PQ
Signal → Absolute Luminance

This is one reason HDR requires a different way of thinking about image encoding.

18. Color Volume

HDR is not only about luminance.

As brightness increases, maintaining saturated colors becomes increasingly important.

This leads to:

Color volume

Color volume describes the range of colors a display can reproduce across different luminance levels.

A display may have a wide color gamut at moderate brightness but struggle to maintain highly saturated colors at extreme brightness.

Therefore:

Wide color gamut + high brightness ≠ automatically high color volume.

19. HDR and Wide Color Gamut

HDR systems are frequently associated with wider color gamuts such as:

DCI-P3

and:

BT.2020

BT.2020 defines a very large color space.

Most consumer displays do not reproduce the entire BT.2020 gamut natively.

Instead, many displays cover a substantial portion of it using technologies such as:

quantum dots
advanced OLED emitters
improved color filters

20. Image Processing

Modern displays rarely show the incoming signal completely untouched.

Image processors can perform:

scaling
noise reduction
sharpening
tone mapping
color management
motion processing
HDR conversion
contrast enhancement
frame interpolation

The exact processing depends heavily on the device.

A modern television can contain a sophisticated dedicated image processor.

A smartphone may rely on a combination of:

SoC display engine
GPU
dedicated display processing
software

21. TV Image Processors

Televisions often perform extensive image processing because their sources can vary enormously.

Inputs may include:

broadcast TV
streaming
Blu-ray
gaming
low-resolution content

The processor may therefore need to:

upscale → denoise → sharpen → map HDR → manage color → output

This can dramatically influence perceived picture quality.

22. Upscaling

Suppose the source is:

1920 × 1080

but the display is:

3840 × 2160.

The system must create additional pixels.

This is called:

Upscaling

Conceptually:

1080p
 ↓
Upscaling
 ↓
4K Panel

Simple scaling can interpolate pixels.

Advanced processors can use:

edge detection
texture analysis
motion information
machine learning

to produce more sophisticated results.

23. AI Image Processing

Modern SoCs and televisions increasingly use AI or machine-learning techniques for image processing.

Potential applications include:

object recognition
scene recognition
super-resolution
noise reduction
texture reconstruction
face enhancement
HDR optimization

However:

AI processing is not inherently better processing.

The quality depends on:

algorithm
training
source material
processing power
tuning

24. HDR and Local Dimming

For Mini-LED LCD displays, HDR processing has to coordinate with local dimming.

The chain becomes:

HDR Image
    ↓
Tone Mapping
    ↓
Brightness Analysis
    ↓
Local-Dimming Algorithm
    ↓
Backlight Zones
    ↓
LCD Pixels

The system has to decide:

Which backlight zones should become brighter or darker?

Poor coordination can produce:

blooming
black crush
brightness pumping
haloing

Advanced algorithms attempt to optimize this in real time.

25. HDR and OLED

OLED has a different architecture.

There is no conventional backlight.

Instead:

HDR Image
    ↓
Tone Mapping
    ↓
Pixel Brightness
    ↓
OLED Emission

This enables extremely precise dark-level control.

But OLED still has physical brightness limitations.

For example, large bright areas can create significant power and thermal demands.

26. ABL : Automatic Brightness Limiting

OLED displays can employ Automatic Brightness Limiting, commonly called ABL.

The basic principle is:

Reduce overall brightness when a very large portion of the screen becomes bright.

For example:

Small HDR highlight
       ↓
Very high brightness


Full-screen white
       ↓
Lower sustainable brightness

The purpose is to manage:

power
heat
panel stress
lifetime

ABL behavior varies significantly by panel and implementation.

27. HDR and Mini-LED

Mini-LED has a different limitation.

It can produce very high brightness across large areas, but its local-dimming zones are not individual pixels.

Therefore:

Bright object + dark background

can still produce:

blooming.

The display processor has to balance:

highlight brightness
black level
zone size
zone response
halo suppression

This makes Mini-LED HDR heavily dependent on processing quality.

28. HDR and Gaming

Gaming HDR adds another set of requirements.

The system must coordinate:

game engine
GPU
operating system
HDR format
display interface
tone mapping
panel brightness
local dimming
refresh

A gaming display therefore needs more than:

“HDR supported.”

Readers should examine:

peak brightness
sustained brightness
HDR format
local dimming
contrast
color gamut
response
latency

29. HDR and Smartphones

Smartphone HDR is increasingly important because mobile displays are viewed at relatively close distances.

Modern phones may combine:

OLED
high brightness
wide color gamut
HDR decoding
tone mapping
ambient-light adaptation

But smartphone HDR behavior can differ substantially between:

video playback
photographs
games
UI

The software stack plays a particularly important role.

30. HDR and Laptops

Laptop HDR has historically been complicated because:

power is limited
thermal headroom is limited
screen size is moderate
brightness varies significantly

Premium Mini-LED laptops can deliver strong HDR through sophisticated local dimming.

OLED laptops provide excellent contrast but have different brightness and power characteristics.

Therefore:

“HDR laptop” does not describe a single performance level.

31. HDR Certification vs Real Performance

A display may support an HDR format without delivering impressive HDR quality.

For example, format compatibility does not automatically tell you:

peak brightness
black level
local dimming quality
color volume
tone mapping quality

Therefore:

HDR support is a compatibility feature; HDR performance is a system-quality characteristic.

This distinction is extremely important for product reviews.

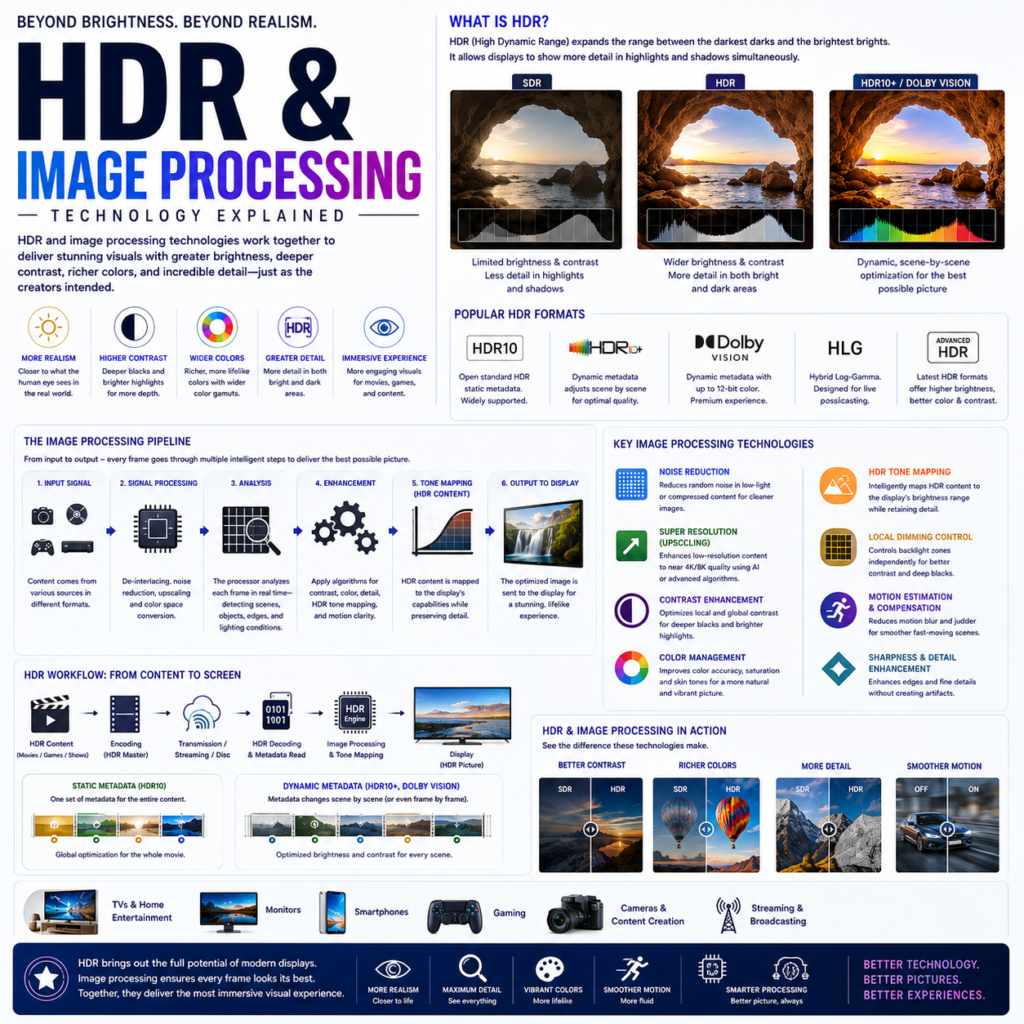

32. The HDR Signal Chain

A useful Digital Plaza diagram is:

HDR SOURCE
     ↓
Codec
     ↓
OS / Player
     ↓
GPU / SoC
     ↓
HDR Processing
     ↓
Tone Mapping
     ↓
Display Interface
     ↓
TCON / DDIC
     ↓
Panel
     ↓
Backlight / OLED / MicroLED
     ↓
Visible HDR Image

Every stage can influence the final result.

33. The Image-Processing Stack

We can organize modern display processing as:

IMAGE PROCESSING
│
├── Scaling
├── Upscaling
├── Noise Reduction
├── Sharpening
├── Color Management
├── Gamma / EOTF
├── HDR Processing
├── Tone Mapping
├── Local Dimming Control
├── Motion Processing
├── Frame Interpolation
└── AI / ML Processing

This is why two displays using the same panel can still produce noticeably different images.

34. Same Panel, Different Image

Suppose two manufacturers use the same OLED panel.

Their displays can still look different because of:

image processing
tone mapping
calibration
color management
brightness management
gamma/EOTF tracking
software

Therefore:

Panel quality does not completely determine display quality.

The implementation matters.

35. HDR and the Display Hardware Stack

We can now connect our previous articles.

HDR Content
     ↓
Image Processing
     ↓
Display Driver
     ↓
Backplane
     ↓
Pixel Architecture
     ↓
Emissive / Backlight System
     ↓
Light

This is the point where our Display Technology series begins to behave like a complete system rather than a collection of isolated technologies.

36. What Readers Should Look For

When evaluating an HDR display, don’t stop at:

HDR10 supported

Instead ask:

Brightness

How bright can it actually get?

Sustained brightness

How long can it maintain that brightness?

Black level

How dark can it go?

Local dimming

How precisely can it control dark and bright regions?

Color gamut

How much of the target color space can it reproduce?

Color volume

Can it maintain saturation at high brightness?

Tone mapping

How does it adapt HDR content to the display?

EOTF

How accurately does it follow the intended luminance curve?

Processing

How well does the display handle real-world content?

This is a much stronger review methodology than simply checking for an HDR logo.

37. The Reader’s Mental Model

Think of HDR as:

MORE DARK DETAIL
        +
MORE BRIGHT DETAIL
        +
MORE COLOR
        +
BETTER PROCESSING
        +
DISPLAY HARDWARE CAPABLE OF REPRODUCING IT

If one component is weak, the HDR experience suffers.

38. The HDR Technology Hierarchy

HDR
│
├── Formats
│   ├── HDR10
│   ├── HDR10+
│   ├── Dolby Vision
│   └── HLG
│
├── Transfer Functions
│   ├── PQ
│   └── HLG
│
├── Metadata
│   ├── Static
│   └── Dynamic
│
├── Image Processing
│   ├── Tone Mapping
│   ├── Scaling
│   ├── Upscaling
│   └── AI Processing
│
├── Display Capability
│   ├── Peak Brightness
│   ├── Sustained Brightness
│   ├── Contrast
│   ├── Local Dimming
│   └── Color Volume
│
└── Output
    ├── LCD
    ├── OLED
    ├── QD-OLED
    └── MicroLED
