In One Sentence

A CPU core is an independent instruction-execution engine within a processor, and modern CPUs combine multiple cores—often with different performance and efficiency characteristics—to execute workloads concurrently while balancing performance, responsiveness, power consumption and thermal limits.

Introduction: What Is a CPU Core?

The word “core” appears in almost every modern processor specification:

  • 4-core
  • 6-core
  • 8-core
  • 12-core
  • 16-core
  • 24-core

But core count is one of the most misunderstood processor specifications.

A core is not simply a “mini CPU.”

A modern CPU core contains a sophisticated collection of hardware that can independently fetch, decode, schedule and execute instructions.

Conceptually:

CPU
│
├── Core 1
├── Core 2
├── Core 3
└── Core 4

Each core can execute its own stream of instructions.



1. Full Definition: What Is a CPU Core?

A CPU core is an independently functioning instruction-processing unit within a central processing unit, containing the architectural and microarchitectural resources required to fetch, decode, schedule and execute instructions, access memory and maintain architectural state.

A modern core typically contains or has access to:

  • instruction-fetch hardware
  • instruction decoders
  • registers
  • execution units
  • branch-prediction logic
  • load/store units
  • caches
  • scheduling hardware
  • retirement logic

A multi-core CPU combines multiple such execution resources into one processor package or integrated processor design.

2. Why Do CPUs Have Multiple Cores?

A single CPU core can execute instructions sequentially, while modern software frequently contains independent work that can be performed concurrently.

Multiple cores allow the system to execute multiple instruction streams simultaneously.

Instead of:

Core
 ↓
Task A
 ↓
Task B
 ↓
Task C

a multi-core processor can do:

Core 1 → Task A
Core 2 → Task B
Core 3 → Task C
Core 4 → Task D

This is parallel processing at the CPU-core level.

3. Single-Core Processor

A single-core processor contains one physical CPU execution core.

Conceptually:

CPU
│
└── Core 1

Single-core designs were once common but are now largely confined to simpler embedded and specialized systems.

The limitation is straightforward:

Only one physical CPU core is available for concurrent instruction execution.

The operating system can still switch between many software tasks, but those tasks share the same physical execution resource.

4. Dual-Core Processor

A dual-core CPU contains:

CPU
├── Core 1
└── Core 2

Two cores can execute independent workloads concurrently.

This can improve performance in workloads capable of parallel execution.

However, performance does not automatically double.

Why?

Because software may contain:

  • sequential sections
  • synchronization overhead
  • shared-resource limitations
  • memory bottlenecks

5. Quad-Core Processor

A quad-core CPU contains four physical cores:

CPU
├── Core 1
├── Core 2
├── Core 3
└── Core 4

Quad-core processors became common across PCs and mobile devices and remain perfectly adequate for many workloads.

Again:

Four cores do not necessarily mean four times the performance of one core.

6. Six-Core, Eight-Core and Higher-Core CPUs

Modern processors can contain many more cores.

Examples include:

  • 6 cores
  • 8 cores
  • 10 cores
  • 12 cores
  • 16 cores
  • 24 cores
  • 32 cores
  • 64 cores
  • more in specialized processors

The usefulness of additional cores depends heavily on workload.

Highly parallel workloads can benefit substantially.

Poorly parallelized workloads may benefit much less.

7. Physical Core vs Logical Processor

This distinction is extremely important.

Physical core

A real hardware CPU core.

Logical processor

A hardware-visible execution context presented to the operating system.

One physical core can sometimes expose more than one logical processor through technologies such as Simultaneous Multithreading (SMT).

For example:

4 Physical Cores
        ↓
SMT
        ↓
8 Logical Processors

This does not mean the CPU has eight physical cores.

8. What Is a Thread?

A software thread is an execution sequence managed by an operating system and application.

A program can contain multiple threads:

Application
│
├── Thread 1
├── Thread 2
├── Thread 3
└── Thread 4

The operating system schedules these threads onto available CPU execution resources.

Threads are therefore software abstractions.

9. Physical Cores vs Threads

TermDefinitionExample
Physical CoreActual CPU execution core8 cores
Software ThreadExecution stream created by software16 application threads
Logical ProcessorHardware execution context visible to OS16 logical CPUs
SMTTechnology allowing multiple instruction streams to share one physical core8 cores / 16 threads

This distinction should always be made when interpreting processor specifications.

10. What Is SMT?

SMT : Simultaneous Multithreading is a processor technology that allows one physical CPU core to maintain and execute instructions from multiple hardware threads simultaneously.

The objective is to improve utilization of execution resources.

Conceptually:

Physical Core
│
├── Thread A
└── Thread B

Instead of leaving some execution resources unused while one thread waits, the processor can potentially execute useful work from another thread.

11. SMT Does Not Double CPU Performance

This is a crucial point.

If:

8 physical cores → 16 threads

it does not mean:

16 physical cores.

Nor does it guarantee:

2× performance.

The two threads share many resources inside the physical core.

The performance gain depends on workload and processor architecture.

12. Hyper-Threading

Hyper-Threading is Intel’s commercial name for its implementation of simultaneous multithreading in processors that support it.

Therefore:

Hyper-Threading is an SMT technology, not a different kind of physical CPU core.

Other processor vendors use different terminology or implementations.

13. Performance Cores

Modern heterogeneous processors may contain performance cores, commonly abbreviated as P-cores.

These cores are designed to prioritize:

  • high single-thread performance
  • high instruction throughput
  • demanding workloads
  • latency-sensitive tasks

They generally use more transistor resources and can consume more power when operating at high performance.

14. Efficiency Cores

Efficiency cores, commonly called E-cores, are designed to provide useful CPU performance with lower power and area requirements than high-performance cores.

They are particularly suitable for:

  • background tasks
  • lightweight applications
  • system services
  • parallel workloads
  • lower-intensity processing

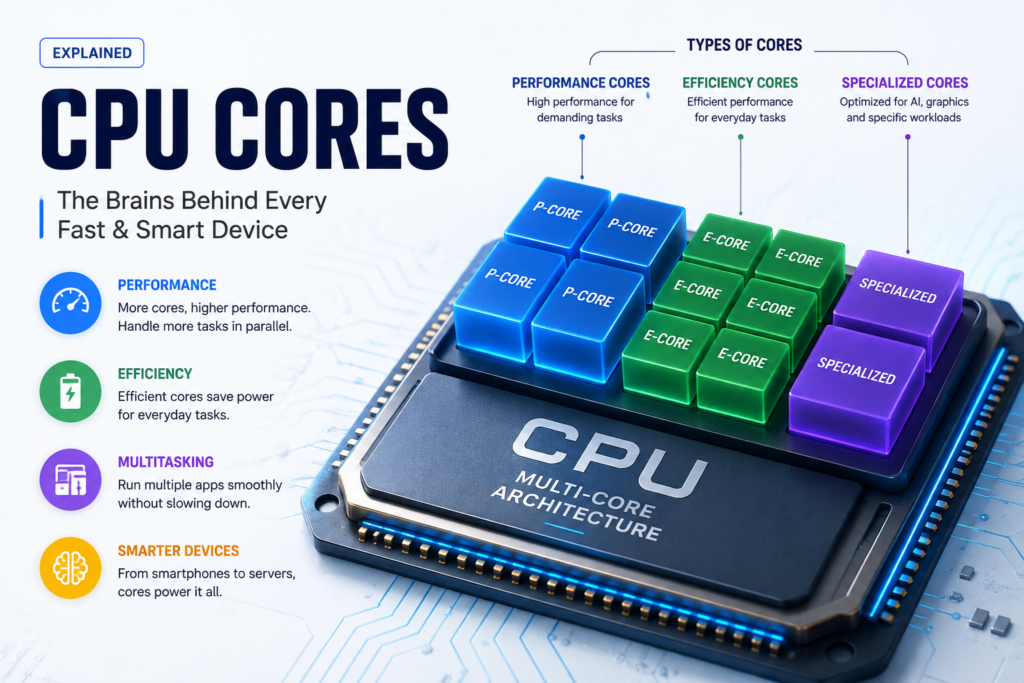

A heterogeneous CPU may therefore look like:

CPU
│
├── P-Core
├── P-Core
├── P-Core
├── P-Core
├── E-Core
├── E-Core
├── E-Core
└── E-Core

The exact architecture varies by processor.

15. Why Use Different Types of Cores?

A processor has a fundamental trade-off:

Performance
     ↕
Power Consumption
     ↕
Thermal Output

Making every core extremely powerful can increase:

  • power consumption
  • heat
  • silicon area
  • cost

Instead, manufacturers can combine different core types.

Heavy Work
   ↓
P-Core

Light Work
   ↓
E-Core

This is one of the foundations of modern heterogeneous CPU design.

16. Hybrid CPU Architecture

A hybrid CPU architecture combines different classes of CPU cores within the same processor.

A simplified model:

             CPU
              │
       ┌──────┴──────┐
       │             │
    P-Cores        E-Cores
       │             │
   Performance     Efficiency

This approach is particularly important in:

  • smartphones
  • tablets
  • laptops
  • modern desktop processors

17. Mobile CPU Core Clusters

Smartphone SoCs often use several CPU core types.

A simplified architecture might be:

Mobile CPU
│
├── High-Performance Core
├── High-Performance Core
├── Performance Cores
└── Efficiency Cores

The actual implementation depends on the SoC vendor and generation.

The operating system dynamically determines where workloads should run.

18. CPU Scheduling

The operating system’s scheduler determines which threads run on which logical CPU resources.

Conceptually:

Applications
     ↓
Threads
     ↓
Operating System Scheduler
     ↓
CPU Cores

The scheduler considers factors such as:

  • workload priority
  • CPU utilization
  • power state
  • core availability
  • responsiveness
  • thermal conditions

Modern mobile systems can dynamically migrate workloads between core types.

19. Core Affinity

CPU affinity refers to restricting or preferring execution of a thread or process on particular CPU cores.

This can be useful for:

  • performance tuning
  • real-time workloads
  • benchmarking
  • system optimization

Ordinary users typically do not manually manage affinity on smartphones.

The operating system generally handles it automatically.

20. Core Frequency

Each CPU core may operate at a particular frequency depending on workload and power conditions.

A processor may advertise:

up to 4.5 GHz

but that does not mean:

  • every core always runs at 4.5 GHz
  • all cores reach that frequency simultaneously
  • sustained workloads maintain that frequency

This is why maximum clock speed should not be confused with sustained performance.

21. Boost Frequency

A processor can temporarily increase frequency when:

  • thermal conditions permit
  • power budget permits
  • workload requires it

This is commonly called:

boost frequency

or:

turbo frequency

depending on vendor terminology.

22. Base Frequency

A processor may also specify a base or nominal frequency.

This should not necessarily be interpreted as:

“the speed the processor always runs at.”

Modern CPUs dynamically adjust frequency based on workload, power and temperature.

23. Core Count vs Performance

This is one of the most important concepts in processor analysis.

Consider two processors:

ProcessorCoresMaximum Frequency
A84.5 GHz
B124.0 GHz

You cannot determine the winner from these two numbers alone.

You also need:

  • architecture
  • IPC
  • cache
  • memory subsystem
  • power limits
  • software
  • workload

24. Single-Core Performance

Single-core performance measures how effectively one CPU core handles a workload.

It is particularly important for:

  • application responsiveness
  • web browsing
  • lightly threaded software
  • many everyday tasks
  • workloads with significant sequential components

Architecture and IPC are particularly important here.

25. Multi-Core Performance

Multi-core performance measures how effectively multiple CPU cores work together on parallel workloads.

It is especially relevant to:

  • rendering
  • compilation
  • scientific computing
  • video processing
  • data processing
  • heavily threaded applications

But software must be capable of using multiple cores effectively.

26. Parallelism Has Limits

A program cannot always be divided perfectly among CPU cores.

Suppose:

Workload
│
├── 80% Parallel
└── 20% Sequential

Adding more cores can accelerate the 80%, but the 20% sequential portion remains a bottleneck.

This is described by Amdahl’s Law.

The fundamental lesson is:

More CPU cores cannot eliminate inherently sequential work.

27. Core-to-Core Communication

CPU cores frequently need to exchange data.

They may communicate through:

  • shared cache
  • interconnects
  • memory subsystem
  • coherence mechanisms

A simplified architecture:

Core 1 ──┐
Core 2 ──┼── Interconnect ── Memory
Core 3 ──┤
Core 4 ──┘

As core counts increase, maintaining efficient communication becomes increasingly important.

28. Cache Sharing

Different CPU architectures organize cache differently.

For example:

Core 1 → L1
Core 2 → L1
Core 3 → L1
Core 4 → L1
       ↓
    Shared L3

Some processors use private caches at certain levels and shared caches at others.

Cache organization affects:

  • latency
  • bandwidth
  • scalability
  • inter-core communication

29. Core Cluster

Mobile and many heterogeneous CPUs often group cores into clusters.

A conceptual design:

CPU Cluster
│
├── Performance Core
├── Performance Core
└── Performance Core

Another cluster may contain efficiency cores.

Cluster organization can simplify:

  • power management
  • frequency control
  • voltage control
  • interconnect design

30. CPU Core Specification Table

SpecificationWhat It MeansWhat It Does Not Mean
Core CountNumber of physical CPU coresGuaranteed performance
Thread CountNumber of supported hardware/software execution contextsNumber of physical cores
Base FrequencyNominal operating frequency under defined conditionsConstant operating speed
Boost FrequencyMaximum/peak frequency under defined conditionsSustained all-core speed
Core TypePerformance/efficiency classAutomatic ranking of the entire CPU
CacheFast memory associated with CPU architectureDirect measure of CPU speed
TDP / Power RatingThermal/power design parameterGuaranteed maximum power consumption
IPCWork/instructions per cycleComplete benchmark performance
SMTMultiple hardware threads sharing a physical coreAdditional physical cores

31. Physical Cores vs Logical Threads

A useful example:

8 Physical Cores
        ↓
SMT × 2
        ↓
16 Logical Processors

The operating system may report:

16 logical CPUs

while the physical processor contains:

8 CPU cores.

These are not contradictory.

32. Symmetric vs Heterogeneous Cores

Symmetric multicore

All cores are broadly similar.

CPU
├── Core A
├── Core A
├── Core A
└── Core A
Heterogeneous multicore

Different core classes coexist.

CPU
├── P-Core
├── P-Core
├── E-Core
├── E-Core
└── E-Core

The second architecture can improve energy efficiency for mixed workloads.

33. Why Smartphones Use Heterogeneous Cores

Smartphones have extremely tight power and thermal constraints.

A phone needs to:

  • remain responsive
  • conserve battery
  • handle background tasks
  • execute demanding applications
  • control heat

Therefore:

Background Task
      ↓
Efficiency Core

Heavy App
      ↓
Performance Core

This approach helps balance performance and battery life.



34. Why Laptops Use Hybrid CPUs

Laptops face similar constraints.

They need:

desktop-class performance

inside:

a portable, battery-powered device.

Hybrid CPU architectures can allow:

  • powerful cores for demanding workloads
  • efficient cores for background workloads

This can improve battery efficiency without eliminating high-performance capability.

35. Desktop CPUs and Core Diversity

Modern desktop processors can also use heterogeneous designs.

Desktop systems have greater thermal capacity than phones, but efficiency remains valuable.

Different core types can improve:

  • performance
  • multitasking
  • background processing
  • power management

36. Server CPU Cores

Server processors emphasize different priorities.

Important characteristics include:

  • very high core counts
  • memory bandwidth
  • cache
  • virtualization
  • reliability
  • scalability
  • power efficiency

A server CPU may contain substantially more cores than a consumer laptop processor.

But again:

Core count is only one part of server performance.

37. CPU Cores and AI

AI workloads are increasingly distributed across:

  • CPU
  • GPU
  • NPU
  • dedicated accelerators

CPU cores remain important for:

  • orchestration
  • preprocessing
  • application logic
  • scheduling
  • unsupported operations

So even AI-focused systems still require capable CPU cores.

38. Core Count vs Workload

Different workloads respond differently to additional cores.

WorkloadBenefit From More Cores
Basic web browsingLow to moderate
Office applicationsModerate
GamingModerate to high, workload dependent
Video encodingHigh
3D renderingHigh
Software compilationHigh
Scientific computingPotentially very high
AI inferenceOften accelerator-dependent
Background servicesHigh parallelism potential

The software’s parallelization determines how much additional hardware can be utilized.

39. What Makes One CPU Core Better Than Another?

Core count is not enough.

A core can be stronger because of:

  • higher IPC
  • wider execution
  • better branch prediction
  • larger or faster caches
  • better execution units
  • better memory handling
  • improved prefetching
  • higher sustained frequency
  • better power efficiency

This is where microarchitecture becomes important.

40. Core Architecture vs Core Count

Consider:

CPU A
4 advanced cores

CPU B
8 older cores

CPU A can potentially outperform CPU B in some workloads.

Therefore:

Four strong cores can outperform eight weaker cores.

The reverse can also occur in highly parallel workloads.

There is no universal answer without considering architecture and workload.

41. CPU Core Performance Model

A simplified conceptual model is:

Core Performance
≈
IPC
×
Frequency
×
Useful Work

Whole-processor performance then depends on:

Core Performance
+
Number of Cores
+
Parallelism
+
Memory
+
Power
+
Thermals
+
Software

42. CPU Core Power States

Modern processors can place cores into different power states.

A core may:

  • run actively
  • reduce frequency
  • reduce voltage
  • enter an idle state
  • power down when unnecessary

This is essential for battery-powered devices.

43. Dynamic Voltage and Frequency Scaling



DVFS : Dynamic Voltage and Frequency Scaling

allows processors to dynamically adjust operating voltage and frequency.

Conceptually:

Light Work
 ↓
Lower Frequency
 ↓
Lower Power

Heavy Work
 ↓
Higher Frequency
 ↓
Higher Performance

The system continuously balances workload and energy.

44. Thermal Throttling

If CPU temperature becomes too high, the system may reduce:

  • frequency
  • voltage
  • power

This protects the hardware.

High Workload
     ↓
High Power
     ↓
Temperature Rises
     ↓
Thermal Limit
     ↓
Frequency Reduction

This is why sustained performance can differ from short benchmark performance.

45. Core Count and Battery Life

More cores do not automatically mean worse battery life.

A heterogeneous CPU can use efficient cores for light workloads while activating powerful cores only when necessary.

Therefore the relationship is:

architecture + workload + power management

rather than simply:

more cores = more battery drain.

46. The Modern CPU Core Architecture

Combining the previous article with this one:

                     CPU
                      │
        ┌─────────────┼─────────────┐
        │             │             │
     P-Core         P-Core        E-Core
        │             │             │
   ┌────┴────┐   ┌────┴────┐   ┌────┴────┐
   │         │   │         │   │         │
 Fetch     Decode ...      Execute ...  Cache
   │
 Branch Prediction
   │
 Scheduler
   │
 Execution Units
   │
 Load / Store
   │
 Retirement

Each core operates as an execution engine, while the processor coordinates resources across the entire CPU.

47. Core Types Across Devices

DeviceTypical Core Strategy
SmartphoneHeterogeneous performance/efficiency cores
TabletHeterogeneous or high-performance mobile cores
Thin LaptopHybrid CPU architecture increasingly common
Gaming LaptopHigh-performance CPU cores + optional efficiency cores
DesktopHigh-performance and/or hybrid multicore
WorkstationHigh-core-count performance-oriented CPUs
ServerHigh core count, scalability and efficiency
Embedded DeviceOften simpler low-power cores

These are broad categories; individual architectures vary significantly.

48. What Core Count Tells You

Core count tells you:

How many physical CPU execution cores the processor contains.

It does not tell you:

  • how fast each core is
  • how efficient each core is
  • whether cores are identical
  • how much cache they have
  • how well software scales
  • how long peak performance can be sustained

This is why core count must always be interpreted in context.

49. What Thread Count Tells You

Thread count tells you about the number of hardware execution contexts available to the operating system.

It does not tell you:

  • number of physical cores
  • guaranteed performance
  • independent execution resources

SMT threads share substantial physical resources within a core.

50. The Most Important Reader Lesson

When reading a processor specification:

Don’t ask only:

“How many cores?”

Also ask:

What cores?

What architecture?

What IPC?

What frequency?

What cache?

What power limit?

What thermal design?

What workload?

How well does the software scale?

That is the correct way to interpret CPU specifications.

51. Digital Plaza Core Analysis Framework

For future processor reviews and comparisons, CPU cores should be analyzed across:

DimensionQuestion
ArchitectureWhat generation and microarchitecture?
Core TypePerformance, efficiency or homogeneous?
Core CountHow many physical cores?
ThreadsHow many logical execution contexts?
FrequencyWhat are base/boost characteristics?
IPCHow much work per cycle?
CacheHow much and what hierarchy?
PowerWhat operating power range?
ThermalsCan peak performance be sustained?
SoftwareHow effectively are cores utilized?
WorkloadWhat applications benefit most?
Measured PerformanceWhat happens in real tests?

This framework is much more informative than simply listing specifications.

52. Final Takeaway

A CPU core is the fundamental general-purpose instruction-execution building block of a processor.

Modern CPUs use multiple cores because workloads can often be executed concurrently.

But modern CPU design has moved beyond simply adding more identical cores.

Today’s processors increasingly combine:

performance cores + efficiency cores + SMT + shared caches + sophisticated scheduling + dynamic power management.

The result is a CPU capable of adapting itself to dramatically different workloads.

The fundamental progression is:

Single Core
    ↓
Multi-Core
    ↓
SMT
    ↓
Heterogeneous Cores
    ↓
Dynamic Scheduling
    ↓
Highly Integrated CPU Architecture

And the most important principle is:

Core count measures quantity; architecture determines capability; workload determines how much of that capability can actually be used.
