In One Sentence

Display driver technology is the electronic pathway that moves image data from a processor to the display’s pixels, coordinating interfaces, timing, voltage/current signals, row and column addressing, and pixel control so that digital images become physical light.

Introduction: How Does an Image Reach the Screen?

When a smartphone displays a photograph or a laptop renders a webpage, the image appears almost instantaneously.

But the data has to travel through a complex chain.

A simplified pathway is:

Application
     ↓
Operating System
     ↓
CPU / GPU / SoC
     ↓
Display Engine
     ↓
Display Interface
     ↓
TCON / Controller
     ↓
DDIC
     ↓
Source + Gate Drivers
     ↓
TFT Backplane
     ↓
Pixels
     ↓
Light

This is the display data path.

Understanding it allows us to connect two worlds that are often discussed separately:

software and graphics

with:

semiconductors and display hardware.

1. What Is a Display Driver?

The phrase display driver can mean several different things.

That creates considerable confusion.

There are at least three important concepts:

Software display driver

Software that allows an operating system or graphics subsystem to communicate with display hardware.

Display controller

Hardware responsible for managing display data and timing.

Display Driver IC : DDIC

A physical semiconductor chip that drives the electrical signals required by the display panel.

They are related, but they are not the same thing.

This article primarily focuses on the hardware side.

2. The Complete Display Chain

Let’s start with the complete system.

User Application
       ↓
Operating System
       ↓
Graphics / Display Stack
       ↓
GPU / SoC Display Engine
       ↓
Display Interface
       ↓
Timing / Control
       ↓
Display Driver IC
       ↓
Row + Column Drivers
       ↓
TFT Backplane
       ↓
Pixel Circuit
       ↓
Light

Every layer performs a different function.

The important lesson is:

A display is not connected directly to the GPU in the simplistic sense.

There is an entire electronics chain between image generation and pixel emission/modulation.

3. The GPU Does Not Directly Drive Every Pixel

A GPU can generate enormous amounts of image data.

For example, a 4K display operating at high refresh rates requires the system to process and transmit billions of pixel-related values over time.

The GPU or display engine generates the required digital image stream.

But it does not physically provide the analog electrical drive required by every TFT and pixel.

That is where display electronics take over.



4. Display Engine

Modern SoCs and GPUs often contain dedicated display engines.

The display engine handles tasks such as:

  • composing image layers
  • scaling
  • timing
  • output formatting
  • color processing
  • frame management
  • interface transmission

This is distinct from the GPU’s general-purpose rendering function.

A smartphone SoC, for example, may contain:

SoC
│
├── CPU
├── GPU
├── NPU
├── ISP
└── Display Engine

The display engine is specifically concerned with getting visual information to the display.

5. Display Interface

The display engine needs a high-speed pathway to the panel.

The interface depends on the device.

Common technologies include:

  • MIPI DSI
  • eDP
  • DisplayPort
  • HDMI

These are not interchangeable technologies.

Each is optimized for different environments.



6. MIPI DSI

MIPI DSI stands for:

MIPI Display Serial Interface.

It is widely used for internal displays in:

  • smartphones
  • tablets
  • embedded devices
  • other mobile systems

The simplified path is:

SoC
 ↓
MIPI DSI
 ↓
Display Electronics
 ↓
Panel

MIPI DSI uses high-speed serial communication to transfer display information while supporting mobile-oriented power requirements.

7. Why MIPI DSI Is Important for Smartphones

Smartphones have strict constraints:

  • battery capacity
  • physical space
  • heat
  • thinness
  • high resolution
  • high refresh

MIPI DSI is designed for embedded display applications and can support high-speed data transfer without requiring the type of external connector ecosystem used by desktop monitors.

This makes it highly suitable for mobile devices.



8. eDP

eDP = Embedded DisplayPort.

It is widely used to connect internal displays in:

  • laptops
  • notebooks
  • PCs
  • all-in-one systems

Simplified:

GPU / Display Engine
       ↓
      eDP
       ↓
Laptop Panel

eDP is based on DisplayPort technology but is designed specifically for internal display connections.

9. DisplayPort

DisplayPort is a digital display interface widely used for external connections.

Typical applications include:

  • desktop PCs
  • monitors
  • docking stations
  • professional displays

A simplified system:

GPU
 ↓
DisplayPort
 ↓
Monitor Electronics
 ↓
Panel

DisplayPort can carry high-resolution, high-refresh video and audio.

10. HDMI

HDMI is another major digital audiovisual interface.

It is widely used for:

  • TVs
  • monitors
  • laptops
  • game consoles
  • media devices
  • home theater

Simplified:

GPU / Console / Media Device
            ↓
           HDMI
            ↓
          Display

HDMI and DisplayPort serve overlapping but different ecosystems.

11. MIPI DSI vs eDP vs DisplayPort vs HDMI

InterfaceTypical environmentPrimary role
MIPI DSISmartphones, tablets, embeddedInternal mobile display connection
eDPLaptops, internal PC displaysInternal display connection
DisplayPortPCs, monitorsExternal display connection
HDMITVs, consoles, PCsExternal audiovisual connection

The interface is only one component of the display system.

It does not by itself determine:

  • panel quality
  • brightness
  • contrast
  • OLED vs LCD
  • refresh capability

Those depend on the complete system.

12. TCON : Timing Controller

The Timing Controller, commonly called TCON, is responsible for organizing the timing and delivery of display data to the panel.

A simplified role is:

Incoming Image Data
        ↓
      TCON
        ↓
Correct timing / sequencing
        ↓
Panel Drivers

It manages the temporal relationship between:

  • frames
  • lines
  • rows
  • columns
  • pixel data

The exact architecture varies between display systems, and some functions may be integrated into other chips.

13. Why Timing Matters

A display is not simply sent one giant image.

The panel receives data according to carefully controlled timing.

Conceptually:

Frame 1
 ├── Row 1
 ├── Row 2
 ├── Row 3
 ├── ...
 └── Row N

Frame 2
 ├── Row 1
 ├── Row 2
 ├── ...
 └── Row N

The system has to coordinate:

  • when a row is selected
  • when pixel data is applied
  • when the next row is addressed
  • when a frame begins
  • when a frame ends

That is a timing problem.

14. Source Driver

The source driver handles column-side pixel data.

Think of the display matrix as:

             Columns
        C1   C2   C3   C4

R1      ●    ●    ●    ●
R2      ●    ●    ●    ●
R3      ●    ●    ●    ●
R4      ●    ●    ●    ●

The source driver supplies the appropriate electrical information to the columns.

Depending on the panel technology, this may involve precise voltage or current control.

15. Gate Driver

The gate driver controls the rows.

Conceptually:

Gate Driver
     ↓
 R1 ─────────────
 R2 ─────────────
 R3 ─────────────
 R4 ─────────────

The gate driver selects which row of TFTs should respond to the source-driver data.

The simplified sequence is:

Select Row
    ↓
Send Column Data
    ↓
Pixel Circuit Responds
    ↓
Move to Next Row

This happens extremely rapidly.

16. Source + Gate Drivers Together

The display can therefore be understood as a two-dimensional addressing system.

              SOURCE DRIVER
        ↓       ↓       ↓       ↓
       C1      C2      C3      C4
       │       │       │       │
R1 ────●───────●───────●───────●
       │       │       │       │
R2 ────●───────●───────●───────●
       │       │       │       │
R3 ────●───────●───────●───────●
       │       │       │       │
R4 ────●───────●───────●───────●
       ↑
   GATE DRIVER

The intersection of row and column control identifies the relevant pixel circuitry.

This is the fundamental principle behind active-matrix display addressing.

17. How One Pixel Gets Its Data

A simplified sequence looks like:

Step 1

The display selects a row.

Step 2

The source driver presents the required values on the columns.

Step 3

The TFT circuits capture the appropriate electrical state.

Step 4

The pixel maintains or produces the desired optical output.

Step 5

The system advances to the next row.

This process repeats across the entire panel.



18. LCD vs OLED Driving

The electrical drive requirements are not identical.

LCD

The driver controls the TFT and liquid-crystal cell to regulate light transmission.

TFT
 ↓
Liquid Crystal
 ↓
Light Transmission
OLED

The driver controls the OLED pixel circuit and its emissive current.

TFT
 ↓
OLED Pixel Circuit
 ↓
Current
 ↓
Light

OLED therefore places particularly important demands on accurate current control.

19. Why OLED Pixel Driving Is Complex

OLED brightness depends strongly on the electrical conditions of the emissive device.

But OLED pixels are not perfectly identical.

They can vary because of:

  • manufacturing tolerances
  • transistor characteristics
  • OLED aging
  • temperature
  • operating history

Display systems therefore use compensation and calibration techniques to maintain uniformity.

This is one reason advanced OLED displays require sophisticated driver electronics.

20. Display Driver IC : DDIC

The DDIC is a semiconductor device that interfaces between the incoming display information and the electrical requirements of the panel.

Depending on the architecture, a DDIC can integrate functions related to:

  • source driving
  • gate driving
  • signal conversion
  • voltage generation
  • gamma
  • timing
  • power management

Not every display uses the same level of integration.

Some functions may be separate.

Others can be integrated into one or more ICs.

21. What Is Gamma in a DDIC?

Display systems need to translate digital image values into electrical drive values that produce the desired optical output.

The relationship between:

digital value → electrical signal → emitted/transmitted light

is not necessarily linear.

Gamma and related correction systems help establish the desired luminance response.

This is why display driver electronics are involved not merely in transmitting data, but also in accurate image reproduction.

22. Voltage and Current Generation

A display panel requires multiple electrical operating conditions.

The driver electronics may generate or manage different voltage rails needed by:

  • TFTs
  • source drivers
  • gate drivers
  • OLED circuits
  • other panel electronics

OLED also requires accurate current-driving behavior.

This means the DDIC sits at the intersection of:

digital electronics + analog electronics + display physics.



23. Analog and Digital Domains

This is an important semiconductor concept.

The image arriving from the SoC is fundamentally digital.

But the physical display requires electrical signals that control:

  • transistor gates
  • liquid-crystal behavior
  • OLED current
  • LED/backlight electronics

Therefore the display system crosses between:

DIGITAL DATA
     ↓
Display Electronics
     ↓
ANALOG / ELECTRICAL DRIVE
     ↓
PHYSICAL DISPLAY
     ↓
OPTICAL OUTPUT

Display driver ICs are therefore mixed-signal semiconductor components.

24. Display Driver and Refresh Rate

Suppose a display supports:

120Hz

That means it can update its image at up to 120 frames per second under the relevant operating conditions.

The driver system must coordinate:

  • data transmission
  • frame timing
  • row scanning
  • pixel updates
  • panel electrical operation

At 120Hz:

1 second
│
├─ Frame 1
├─ Frame 2
├─ Frame 3
├─ ...
└─ Frame 120

Each frame must be handled within approximately:

8.33 milliseconds.

At 60Hz:

16.67 milliseconds per frame.

The driver system therefore becomes increasingly demanding as refresh rate rises.

25. Variable Refresh Rate

Modern displays increasingly support variable refresh.

Instead of updating at one fixed frequency, the system can change refresh according to:

  • content
  • user interaction
  • application
  • power state

For example:

Static content
     ↓
Low refresh

Scrolling
     ↓
High refresh

Gaming
     ↓
Very high refresh

This requires coordination between:

  • operating system
  • display engine
  • interface
  • timing controller
  • DDIC
  • panel
  • backplane

This is why LTPO alone does not create adaptive refresh.

LTPO provides a backplane capability.

The complete system must support and control the variable-refresh behavior.

26. Display Compression

High-resolution displays require enormous amounts of bandwidth.

Consider:

3840 × 2160

at:

120Hz

with:

10-bit color

The raw data requirement can become enormous.

Display systems may therefore use technologies such as:

Display Stream Compression : DSC

to reduce transmission bandwidth while preserving visually lossless image quality under supported implementations.

This becomes increasingly important for:

  • 4K high refresh
  • 5K
  • 8K
  • high-bit-depth displays

27. Display Bandwidth

A simplified relationship is:

Resolution ↑
    +
Refresh Rate ↑
    +
Color Depth ↑
    ↓
Bandwidth Requirement ↑

For example, increasing from:

60Hz → 120Hz

roughly doubles the frame-rate component of the data requirement.

Moving from:

8-bit → 10-bit

increases the amount of color information per channel.

This is why high-end displays require increasingly sophisticated interfaces and controllers.

28. Display Driver and Resolution

Higher resolution means more pixels must be addressed.

For example:

1920 × 1080

≈ 2.07 million pixels.

2560 × 1440

≈ 3.69 million pixels.

3840 × 2160

≈ 8.29 million pixels.

The driver architecture must support the panel’s required:

  • pixel count
  • scanning
  • data rate
  • timing
  • electrical characteristics.

29. Display Driver and Power Efficiency

Display electronics consume power themselves.

Power can be influenced by:

  • data rate
  • refresh rate
  • driver circuitry
  • voltage
  • panel technology
  • backplane
  • brightness
  • interface activity

Mobile devices therefore need extremely careful power management.

This is particularly important when combining:

high resolution + high refresh + HDR + always-on functionality.

30. Panel Self Refresh

Laptop display systems can use Panel Self Refresh (PSR) technologies to reduce system activity when the displayed image does not change.

The basic idea:

Static Image
     ↓
Panel retains image
     ↓
GPU/system can reduce activity
     ↓
Lower power

This is particularly useful for:

  • documents
  • desktop applications
  • static webpages
  • idle interfaces

It demonstrates an important principle:

Display power efficiency is partly a system-level problem, not simply a panel-material problem.

31. Display Driver and HDR

HDR introduces another layer of complexity.

The driver system must support the relevant:

  • bit depth
  • luminance information
  • color information
  • timing
  • panel capabilities

But HDR performance ultimately depends on the complete chain:

HDR Content
     ↓
OS / Graphics
     ↓
GPU / Display Engine
     ↓
Interface
     ↓
Display Controller
     ↓
DDIC
     ↓
Panel
     ↓
Backlight / Emissive Pixel
     ↓
Light

A panel cannot display HDR information correctly if the rest of the chain does not support it.

32. Display Driver and Color

Driver electronics can also be involved in:

  • gamma
  • grayscale
  • color correction
  • calibration
  • compensation
  • voltage mapping

The actual color accuracy depends on the complete system.

That includes:

  • panel materials
  • color filters
  • OLED emission
  • quantum dots
  • backlight
  • driver electronics
  • calibration
  • software

33. Driver-on-Panel Technology

Modern display manufacturing increasingly integrates driver circuitry directly into or onto the panel structure.

Examples include:

  • GOA — Gate on Array
  • integrated gate drivers
  • narrower bezels
  • more compact panel electronics

Instead of using separate driver components around every part of the panel, some circuitry can be fabricated as part of the display substrate.

This can help enable:

  • thinner borders
  • fewer external components
  • simplified assembly

34. Chip-on-Glass and Chip-on-Film

Display driver ICs can be attached using different packaging approaches.

Two important concepts are:

Chip-on-Glass : COG

The driver IC is attached directly to the glass substrate.

Chip-on-Film : COF

The driver IC is mounted on a flexible film.

COF can help with:

  • narrow bezels
  • flexible routing
  • compact packaging

These packaging technologies are especially important in modern narrow-bezel displays.

35. Display Driver Technology in Smartphones

A smartphone can be simplified as:

Application
    ↓
Android / iOS
    ↓
SoC
    ↓
Display Engine
    ↓
MIPI DSI
    ↓
DDIC
    ↓
TFT Backplane
    ↓
OLED Pixel
    ↓
Light

The exact implementation varies by manufacturer and panel.

But this is the conceptual architecture.

36. Display Driver Technology in Laptops

A laptop commonly follows:

Application
    ↓
OS
    ↓
GPU / Integrated Graphics
    ↓
Display Engine
    ↓
eDP
    ↓
Panel Electronics
    ↓
TFT
    ↓
Pixel

The internal connection is optimized for:

  • high bandwidth
  • low power
  • thin systems
  • variable refresh
  • panel self-refresh

37. Display Driver Technology in Desktop Monitors

A desktop monitor may receive data through:

  • DisplayPort
  • HDMI
  • USB-C DisplayPort Alt Mode

Then:

Input
 ↓
Monitor Controller
 ↓
Scaler / Processing
 ↓
TCON
 ↓
DDIC
 ↓
Panel

The monitor may additionally perform:

  • scaling
  • overdrive
  • HDR processing
  • color management
  • adaptive synchronization

This is why a monitor is itself a computer-like electronics system rather than merely a passive panel.



38. USB-C and Display

USB-C deserves special attention because it can carry display information using:

DisplayPort Alternate Mode

This allows one physical connector to carry multiple functions.

For example:

USB-C
│
├── Power
├── USB Data
└── DisplayPort

This is one reason USB-C has become so important for laptops, tablets and mobile computing.

39. Display Driver vs Graphics Processor

These components solve different problems.

GPU

Generates and processes graphics.

Display Engine

Organizes the final image for output.

Display Interface

Transports the data.

TCON

Coordinates panel timing/data.

DDIC

Converts and drives panel electrical signals.

TFT Backplane

Controls pixel circuits.

Pixel

Produces or modulates light.

This is the complete chain.

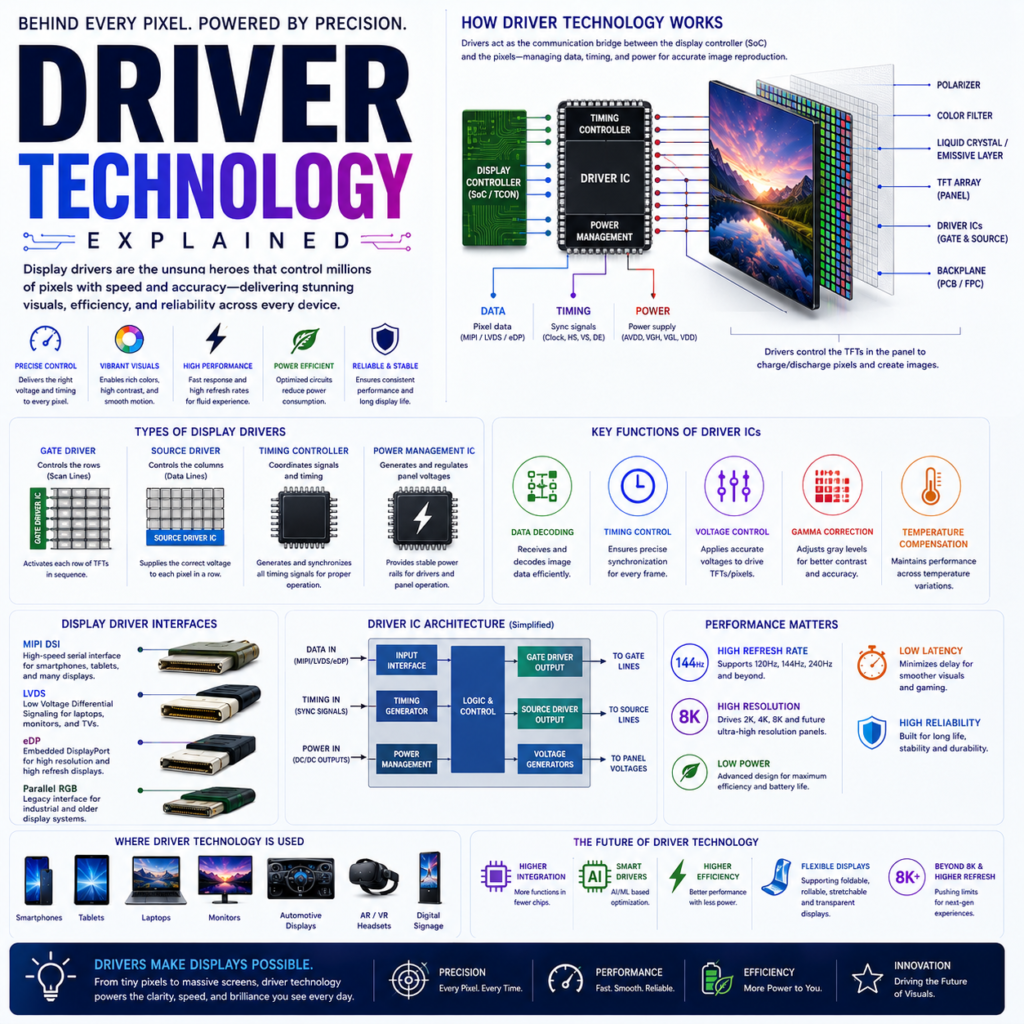

40. The Display Driver Technology Map

                 SYSTEM
                   │
        ┌──────────┴──────────┐
        │                     │
       CPU                   GPU
                              │
                       Display Engine
                              │
                    Display Interface
                    │    │     │     │
                  DSI   eDP   DP    HDMI
                              │
                            TCON
                              │
                            DDIC
                         ┌────┴────┐
                         │         │
                    Source      Gate
                    Driver      Driver
                         │         │
                         └────┬────┘
                              ↓
                         TFT Backplane
                              ↓
                        Pixel Circuit
                              ↓
                    Emission / Modulation
                              ↓
                             Light

This is the most useful mental model for understanding display electronics.

41. What Happens When You Scroll?

Consider a smartphone scrolling a webpage.

The chain looks roughly like:

Touch Input
     ↓
Operating System
     ↓
Application
     ↓
Graphics Composition
     ↓
GPU / Display Engine
     ↓
MIPI DSI
     ↓
TCON / DDIC
     ↓
Panel
     ↓
Pixels

The screen appears to respond instantly because every stage operates at extremely high speed.

This is the hidden engineering behind something as simple as scrolling a webpage.

42. What Happens During Gaming?

Gaming places much greater demands on the system.

The chain becomes:

Game Engine
    ↓
CPU + GPU
    ↓
Rendered Frame
    ↓
Display Engine
    ↓
Display Interface
    ↓
Timing / Driver
    ↓
Panel
    ↓
Pixels

At high refresh rates, the entire pipeline must minimize:

  • rendering delay
  • transmission delay
  • scanning delay
  • pixel response
  • processing latency

This is why gaming-display performance cannot be reduced to the headline refresh rate alone.

43. Display Driver and Latency

Total display latency can involve:

  • game processing
  • GPU rendering
  • frame queue
  • display processing
  • interface transmission
  • scanout
  • pixel response

A 240Hz display reduces the frame interval to approximately:

4.17 ms

compared with:

16.67 ms at 60Hz.

But the actual end-to-end latency depends on the entire system.

Therefore:

Refresh rate is one component of display latency, not the complete measurement.

44. Display Driver and Pixel Response

The driver can determine when a pixel is instructed to change.

But the physical pixel also requires time to respond.

For LCD:

liquid-crystal response

For OLED:

emissive/pixel electrical response

Therefore:

Driver Timing
      +
Panel Response
      =
Visible Transition

This distinction becomes particularly important in high-refresh gaming displays.

45. The Semiconductor Inside the Display

A display driver IC is a semiconductor device.

That means the display industry overlaps directly with semiconductor manufacturing.

Important areas include:

  • analog circuitry
  • digital logic
  • high-voltage devices
  • mixed-signal design
  • power management
  • semiconductor process technology

This is why display companies and semiconductor suppliers are deeply connected.

46. Why DDICs Matter to the Display Industry

The DDIC can affect:

  • display power
  • brightness
  • refresh
  • grayscale
  • color
  • panel integration
  • bezel size
  • manufacturing cost

A better panel paired with an unsuitable driver architecture may fail to deliver its theoretical capabilities.

The display therefore has to be treated as a system.

47. What the Reader Should Remember

Display interface

Moves digital data toward the panel.

TCON

Organizes timing and panel data flow.

DDIC

Drives the panel electrically.

Source driver

Handles column-side data.

Gate driver

Selects rows.

TFT

Controls pixel circuitry.

Pixel

Creates or modulates light.

This can be summarized as:

Transmit → time → drive → address → control → display.

48. The Most Important Terminology

When reading specifications:

MIPI DSI

Think:

mobile/internal display interface

eDP

Think:

internal PC/laptop display interface

DisplayPort

Think:

external PC display interface

HDMI

Think:

external audiovisual interface

TCON

Think:

panel timing

DDIC

Think:

panel electrical driving

Source Driver

Think:

columns

Gate Driver

Think:

rows

TFT

Think:

pixel switching/control
