Semiconductor Process Nodes Explained: 7nm, 5nm, 4nm, 3nm, 2nm, Transistors, FinFET, GAA, EUV and Why Nanometers Matter

Meta Description

Understand semiconductor process nodes and how 7nm, 5nm, 4nm, 3nm and 2nm technologies influence modern processors. Explore transistor density, FinFET, Gate-All-Around (GAA), nanosheet transistors, EUV lithography, wafer and die manufacturing, yield, SRAM scaling, interconnects, leakage, power efficiency, performance, chiplets and advanced process technology. Learn why modern node names are not literal transistor measurements, why different foundries’ nodes cannot be compared by numbers alone, and how semiconductor manufacturing affects CPUs, GPUs, NPUs and SoCs used in smartphones, tablets, laptops, PCs and servers.

In One Sentence

A semiconductor process node describes a generation of manufacturing technology used to build integrated circuits, influencing transistor density, power efficiency, performance, leakage, area and manufacturing economics—but modern node names such as 3nm or 2nm should not be interpreted as a literal measurement of a single transistor dimension.

Introduction: What Does “3nm Processor” Actually Mean?

Smartphone and PC advertisements frequently say:

7nm processor
5nm chip
4nm SoC
3nm CPU
next-generation 2nm processor

This creates an obvious question:

What does the number actually mean?

Historically, semiconductor process nodes were closely associated with particular physical transistor dimensions.

Modern semiconductor manufacturing is more complicated.

Today:

3nm does not simply mean that every transistor feature measures exactly 3 nanometers.

Instead, a process node generally represents a manufacturing technology generation with a particular combination of:

transistor architecture
density
performance characteristics
power characteristics
interconnect technology
design rules
manufacturing techniques

Understanding this is essential for interpreting modern processor specifications correctly.

1. What Is a Semiconductor?

A semiconductor is a material whose electrical conductivity can be controlled.

The most important semiconductor material in modern computing is:

silicon.

By carefully modifying silicon and creating structures within it, manufacturers can build transistors and other electronic components.

2. What Is a Transistor?

A transistor is a semiconductor device used to control electrical current.

Modern processors contain:

billions of transistors.

They form the fundamental switching elements used to build:

logic gates
arithmetic units
registers
caches
memory structures
control circuits
accelerators

Conceptually:

Transistors
    ↓
Logic Gates
    ↓
Circuits
    ↓
CPU / GPU / NPU
    ↓
Processor

3. Why Are Transistors Important?

A modern processor performs computations by controlling enormous numbers of transistor states.

At a simplified level:

Transistor
  ↓
Switching
  ↓
Logic
  ↓
Computation

More advanced transistor technology can allow manufacturers to place more computational circuitry into a given physical area.

4. What Is a Process Node?

Full Definition

A semiconductor process node is a manufacturing technology generation used to fabricate integrated circuits, defining a coordinated set of transistor structures, materials, lithography techniques, interconnect technologies, design rules, density characteristics and electrical performance targets.

Examples include:

The number is primarily a technology-generation label in modern processes, rather than a literal universal measurement of transistor size.

5. Why Are Process Nodes Called Nanometers?

A nanometer (nm) is one-billionth of a meter.

Historically, node names were more directly connected to physical transistor dimensions.

As transistor technology advanced, those dimensions stopped scaling in a simple one-to-one relationship with the node name.

Therefore:

Modern 3nm
≠
Every transistor feature is exactly 3nm

This is one of the most important semiconductor concepts for technology readers.

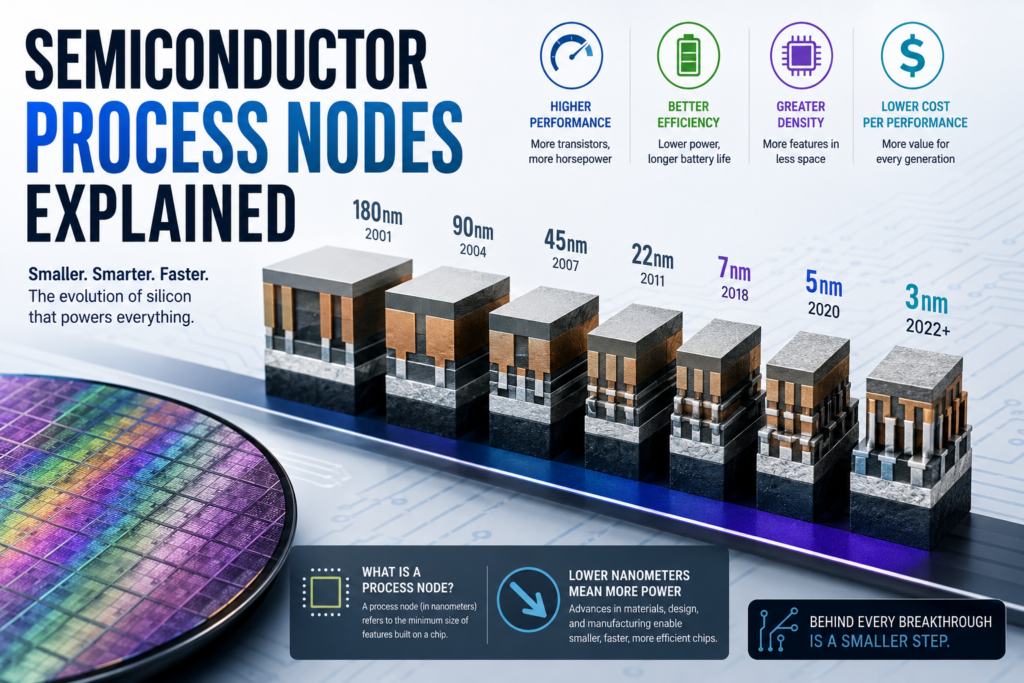

6. Historical Node Scaling

A simplified historical progression looks like:

180nm
 ↓
130nm
 ↓
90nm
 ↓
65nm
 ↓
45nm
 ↓
32nm
 ↓
22nm
 ↓
14nm
 ↓
10nm
 ↓
7nm
 ↓
5nm
 ↓
4nm
 ↓
3nm
 ↓
2nm

The exact naming and technological characteristics vary among manufacturers and generations.

7. Why Smaller Nodes Matter

Moving to a newer process generation can potentially provide:

higher transistor density
lower power consumption
improved performance
smaller die area
greater functional integration

But the benefits are not automatic.

A newer node can also introduce:

higher manufacturing complexity
greater design cost
difficult yield challenges
expensive equipment requirements

8. Transistor Density

Transistor density refers to the number of transistors that can be placed within a given area.

For example:

Older Process
┌─────────────┐
│ ● ● ● ●     │
│ ● ● ● ●     │
└─────────────┘

Newer Process
┌─────────────┐
│ ●●●●●●●●    │
│ ●●●●●●●●    │
│ ●●●●●●●●    │
└─────────────┘

Higher density allows manufacturers to integrate more functionality into similar or smaller die areas.

9. More Transistors ≠ Automatically More Performance

Additional transistor capacity can be used for:

larger caches
more CPU cores
larger GPUs
NPUs
AI accelerators
media engines
security hardware
memory controllers

Therefore:

A process node creates opportunities; architecture determines how those opportunities are used.

10. Process Node vs Architecture

This distinction is critical.

Imagine:

Same Architecture
        ↓
Different Process
        ↓
Different Power / Frequency Characteristics

Or:

Same Process
        ↓
Different Architecture
        ↓
Different Performance

A better process does not automatically produce a better CPU.

The processor is the result of both:

architecture + manufacturing technology.

11. Process Node vs CPU Microarchitecture

Technology	Primary Role
ISA	Defines software-visible instruction behavior
Microarchitecture	Defines internal CPU implementation
Process Node	Defines semiconductor manufacturing technology
Packaging	Connects and physically integrates dies/chips
System Design	Determines power, cooling, memory and overall behavior

This hierarchy will remain important throughout the Processor Technology series.

12. Transistor Density and Die Size

Suppose a design requires a certain number of transistors.

Higher density can potentially allow:

Same transistor count
        ↓
Smaller die

or:

Same die area
        ↓
More transistors

This can enable more functionality.

But actual die-area reduction depends on the complete process technology and design.

13. Moore’s Law

Moore’s Law describes the historical trend of increasing transistor counts in integrated circuits over time.

It is not a physical law.

It is an observation and industry expectation that drove decades of semiconductor development.

Historically, increasing transistor density enabled:

more computing power
lower cost per transistor
greater integration

Maintaining that trend has become increasingly difficult.

14. Dennard Scaling

Historically, transistor scaling was accompanied by improvements in power density known as Dennard scaling.

As transistors became smaller, voltage and power characteristics could scale in favorable ways.

However:

Dennard scaling largely broke down as transistor dimensions became extremely small.

This is one reason modern chip designers cannot simply shrink everything and expect power to decrease proportionally.

15. From Planar Transistors to FinFET

Early modern CMOS transistors were largely planar structures.

As scaling progressed, controlling the transistor channel became increasingly difficult.

Manufacturers introduced:

FinFET : Fin Field-Effect Transistor.

Instead of a flat channel:

Planar
────────────

the transistor channel forms a raised fin:

      │
      │  Fin
      │
──────┴──────

The gate can surround multiple sides of the fin.

This improves control over the transistor channel.

16. Why FinFET Was Important

FinFET technology helped manufacturers improve:

electrostatic control
leakage characteristics
scaling
performance
power efficiency

It became a major transistor architecture during advanced process generations.

17. Gate-All-Around : GAA

As scaling continues, manufacturers are moving toward:

Gate-All-Around (GAA) transistor architectures.

The basic concept is that the gate surrounds the conducting channel more completely.

Conceptually:

     GATE
  ┌────────┐
  │ CHANNEL│
  └────────┘
     GATE

Compared with FinFET, the gate has greater control over the channel.

18. Nanosheet Transistors

One implementation of GAA technology uses:

nanosheet transistors.

Multiple horizontal semiconductor sheets form the channel.

══════ Sheet
══════ Sheet
══════ Sheet

The gate surrounds these channels.

This architecture can improve transistor control while supporting continued scaling.

19. FinFET vs GAA

Feature	FinFET	GAA / Nanosheet
Channel structure	Vertical fin	Enclosed channel
Gate control	Multiple sides	More complete surrounding control
Scaling potential	Mature	Designed for further scaling
Leakage control	Strong	Potentially improved
Manufacturing complexity	High	Very high
Advanced-node role	Major	Increasingly important

20. Lithography

Lithography is the process used to pattern extremely small structures onto semiconductor wafers.

Conceptually:

Design
 ↓
Mask / Pattern
 ↓
Lithography
 ↓
Wafer
 ↓
Tiny Structures

Modern semiconductor manufacturing depends on extraordinarily precise lithographic systems.

21. EUV Lithography

EUV = Extreme Ultraviolet.

EUV lithography uses extremely short-wavelength ultraviolet light to pattern advanced semiconductor structures.

Its introduction has been important for advanced-node manufacturing.

EUV can help reduce the complexity associated with creating extremely small features.

22. Why EUV Matters

Advanced semiconductor manufacturing requires increasingly precise patterning.

EUV can reduce the need for certain multi-patterning steps in appropriate layers.

This can potentially improve:

manufacturing complexity
pattern fidelity
process efficiency

But EUV equipment is extraordinarily complex and expensive.

23. Semiconductor Wafer

A wafer is a thin, circular slice of semiconductor material on which many chips are fabricated simultaneously.

Conceptually:

       ┌──────────────┐
      / ● ● ● ● ● ● ● \
     | ● ● ● ● ● ● ● ● |
     | ● ● ● ● ● ● ● ● |
      \ ● ● ● ● ● ● ● /
       └──────────────┘

Each individual chip area is called a:

die.

24. Die

A die is an individual piece of semiconductor containing a particular integrated circuit.

A wafer contains many dies.

After fabrication:

Wafer
 ↓
Test
 ↓
Cut / Dice
 ↓
Individual Dies
 ↓
Packaging

25. Yield

Yield is the proportion of manufactured dies that meet the required specifications.

Higher process complexity can make yield management more challenging.

Yield is economically important because:

Higher Yield
 ↓
More usable chips per wafer
 ↓
Lower effective manufacturing cost

26. Why Advanced Nodes Are Expensive

Advanced-node manufacturing requires:

sophisticated lithography
extremely precise process control
expensive equipment
complex design rules
extensive testing
high capital expenditure

Therefore:

A smaller process node is not simply a cheaper way to make a smaller chip.

The manufacturing ecosystem becomes significantly more expensive.

27. Process Node and Power

A newer process can potentially improve power efficiency.

But total processor power depends on:

transistor design
architecture
frequency
voltage
workload
memory system
accelerator utilization
software

Therefore:

3nm does not automatically mean low power.

28. Dynamic Power

A simplified relationship for dynamic CMOS power is:

P ≈ α × C × V² × f

Where:

P = dynamic power
α = switching activity
C = effective capacitance
V = voltage
f = frequency

The equation is simplified, but it illustrates why voltage and frequency are so important.

29. Leakage Power

Transistors can consume power even when they are not actively switching.

This is called:

leakage power.

As transistor dimensions shrink, controlling leakage becomes increasingly important.

Modern process technologies therefore focus heavily on:

transistor architecture
materials
threshold voltage
power gating
device isolation

30. Performance and Process Technology

A newer process may allow:

higher frequencies
greater transistor density
lower operating voltage
more logic within a given area

But processor performance is still determined by the entire design.

Conceptually:

Process
   +
Microarchitecture
   +
Memory
   +
Power
   +
Thermals
      ↓
Performance

31. Process Node Comparison

Node Label	Broad Position	Typical Transistor Era / Architecture
14nm	Older advanced node	FinFET era
10nm	More advanced	FinFET
7nm	Advanced	FinFET
5nm	Advanced	FinFET / related variants
4nm	Refined advanced node	Advanced FinFET-family technologies
3nm	Leading-edge generation	Advanced FinFET / GAA depending on foundry generation
2nm	Emerging leading edge	GAA/nanosheet-oriented technologies

This table is intentionally broad because node naming is not standardized across manufacturers.

32. Why 3nm Is Not Necessarily the Same Everywhere

This is extremely important.

3nm process from Foundry A

and:

3nm process from Foundry B

do not necessarily have identical:

transistor density
performance
power
design rules
transistor architecture
interconnect technology

Therefore:

Process-node names from different manufacturers should not be compared as if they were standardized measurements.

33. Density Is a Better Comparison

When comparing process technologies, useful metrics can include:

transistor density
performance at a given power
power at a given performance
SRAM density
logic density
defect density
yield

These provide more information than the node label alone.

34. Process Technology and SRAM

CPU caches contain enormous amounts of SRAM.

SRAM scaling is increasingly difficult.

This matters because:

CPU
 ↓
Large Cache
 ↓
Large SRAM Area

As logic transistors scale, SRAM does not necessarily scale at the same rate.

This creates major challenges for modern CPU design.

35. Process Technology and Interconnects

A processor is not just transistors.

It also contains enormous networks of:

wires
contacts
vias
interconnect layers

As structures shrink, interconnect resistance and capacitance become increasingly important.

Therefore:

Modern process technology is about more than transistor size.

36. Process Node and Chiplets

Modern processors increasingly use chiplet architectures.

Instead of manufacturing one enormous monolithic die:

Large Monolithic Die

a processor may use:

┌──────┐ ┌──────┐
│Chiplet│ │Chiplet│
└──────┘ └──────┘
     │      │
     └──┬───┘
        ↓
      Package

Different chiplets can potentially use different process technologies.

This means:

One processor can contain dies manufactured on different process nodes.

37. Heterogeneous Process Technology

A future processor may combine:

CPU Die → Advanced Node
I/O Die  → Mature Node
Cache Die → Specialized Node
AI Die   → Advanced Node

This can improve manufacturing economics and allow each function to use an appropriate technology.

38. 2.5D and 3D Integration

Modern packaging increasingly allows dies to be placed:

side by side
vertically stacked

This creates:

2.5D integration

and:

3D integration.

These technologies can improve:

bandwidth
density
modularity
system integration

We will examine this in detail in the later Manufacturing & Packaging article.

39. Process Node and AI

AI accelerators benefit heavily from transistor density.

More transistors can enable:

larger matrix engines
larger caches
more compute units
greater memory interfaces
specialized accelerators

But AI performance still depends on:

architecture
memory bandwidth
software
precision
power

40. Process Node and Smartphones

Smartphone SoCs are particularly sensitive to process technology because they operate under strict:

battery limits
thermal limits
physical-size constraints

An improved process can enable more performance within a similar power envelope.

This is one reason smartphone SoCs have benefited greatly from advanced manufacturing.

41. Process Node and Laptops

Laptop processors benefit from improved process technology through:

better efficiency
higher performance
longer battery potential
greater integration

However, cooling capacity remains a major system-level constraint.

42. Process Node and Servers

Server processors prioritize:

performance per watt
transistor density
core count
memory capacity
reliability

Advanced processes can help improve compute density within data-center power budgets.

But manufacturing cost becomes especially significant because large server dies can be expensive.

43. Process Technology Specification Table

Metric	Meaning	Why It Matters
Node	Manufacturing-generation label	Indicates broad process generation
Transistor Density	Transistors per unit area	Indicates integration capability
Performance	Frequency/performance achievable under defined conditions	Determines compute capability
Power Efficiency	Performance achieved for a given power	Important for mobile and data centers
Leakage	Unwanted current flow	Affects idle and total power
SRAM Density	Cache-memory density	Important for CPU/GPU cache design
Yield	Percentage of usable dies	Strongly affects manufacturing economics
EUV	Extreme ultraviolet lithography	Enables advanced patterning
Transistor Architecture	Planar, FinFET, GAA etc.	Controls electrical behavior
Interconnect	On-chip wiring technology	Affects latency, power and signal integrity

44. What a Node Number Does Not Tell You

A node label does not directly tell you:

CPU performance
GPU performance
battery life
transistor count
transistor density
maximum frequency
total power
chip quality
manufacturing cost

Those require additional data.

45. Common Semiconductor Misconceptions

Myth 1: 3nm means every transistor is 3nm.

False.

Modern node names are technology-generation labels rather than a single universal physical measurement.

Myth 2: Smaller node always means faster.

Not necessarily.

Architecture and design determine performance.

Myth 3: Smaller node always means lower power.

Not automatically.

A more powerful architecture can consume more total energy even on a newer process.

Myth 4: 3nm from every manufacturer is equivalent.

False.

Node naming is not standardized across foundries.

Myth 5: More transistors automatically mean better performance.

False.

The additional transistor budget must be used effectively.

46. How to Evaluate a Process Node Properly

Digital Plaza should evaluate a process technology using:

1. Density

How many transistors fit into a given area?

2. Performance

What performance can the technology achieve?

3. Efficiency

What performance can it deliver per watt?

4. Leakage

How much unwanted power is consumed?

5. SRAM Scaling

How effectively does cache memory scale?

6. Yield

How efficiently can usable chips be produced?

7. Economics

What does the technology cost to develop and manufacture?

This produces a much more meaningful assessment than simply saying:

“3nm is better than 4nm.”

47. Process Node and the Processor Stack

The complete hierarchy is:

ISA
 ↓
Microarchitecture
 ↓
CPU / GPU / NPU Design
 ↓
Transistor Architecture
 ↓
Process Technology
 ↓
Wafer
 ↓
Die
 ↓
Package
 ↓
System

Each layer influences the final product.

48. The Future of Process Scaling

The industry is moving toward:

FinFET → GAA → nanosheet → increasingly advanced transistor structures

while also developing:

backside power delivery
advanced interconnects
new transistor materials
EUV improvements
high-NA EUV
3D integration
chiplets
advanced packaging

The future of processor performance will therefore depend on both transistor scaling and architectural innovation.

49. Why Scaling Is Getting Harder

At very small dimensions:

leakage becomes harder to control
interconnect delay becomes important
manufacturing variability increases
design complexity rises
lithography becomes more demanding
costs increase

Therefore the industry can no longer rely exclusively on simple geometric shrinking.

50. The End of “Just Make It Smaller”

Modern processor advancement increasingly depends on:

Better Transistors
        +
Better Process
        +
Better Architecture
        +
Better Packaging
        +
Better Memory
        +
Better Software

This is the modern semiconductor equation.

51. Final Takeaway

A semiconductor process node represents a generation of chip-manufacturing technology.

The transition from older nodes to newer ones has historically enabled:

higher transistor density
greater integration
improved performance
improved energy efficiency

But modern node names such as 5nm, 4nm, 3nm and 2nm are not literal universal measurements of transistor dimensions.

The more useful question is:

What transistor density, performance, efficiency, SRAM scaling, interconnect technology and manufacturing economics does this process generation actually provide?

That is the correct way to analyze semiconductor technology.
