In One Sentence

A display panel is the image-forming layer of a display system, and its architecture—whether TN, IPS, VA, AMOLED, WOLED, QD-OLED or another design—strongly influences contrast, viewing angles, response time, color, brightness, power consumption, flexibility and ultimately the way a screen looks and behaves.

Why Panel Technology Matters

In our previous guide, we established the fundamental display families:

LCD → OLED → MicroLED → Reflective → Projection

But knowing that a laptop has an LCD or a smartphone has an OLED screen tells us only part of the story.

Two LCD displays can behave very differently.

Two OLED displays can also behave very differently.

The reason is that “LCD” and “OLED” describe broad display technologies, while the panel architecture determines how those technologies are implemented.

For example:

An LCD can use TN, IPS or VA architecture.
An OLED can use AMOLED, WOLED, QD-OLED, tandem OLED or other architectures.
An OLED panel may also use different backplane technologies such as LTPS or LTPO.
An LCD panel may use different backplanes and illumination systems.

This gives us a second layer of understanding:

DISPLAY
   ↓
DISPLAY TYPE
   ↓
PANEL TECHNOLOGY
   ↓
BACKPLANE
   ↓
PIXEL / SUBPIXEL
   ↓
DRIVER ELECTRONICS
   ↓
IMAGE PROCESSING
   ↓
FINAL DISPLAY EXPERIENCE

The panel is therefore the bridge between the fundamental display type and the detailed engineering underneath it.

1. What Is a Display Panel?

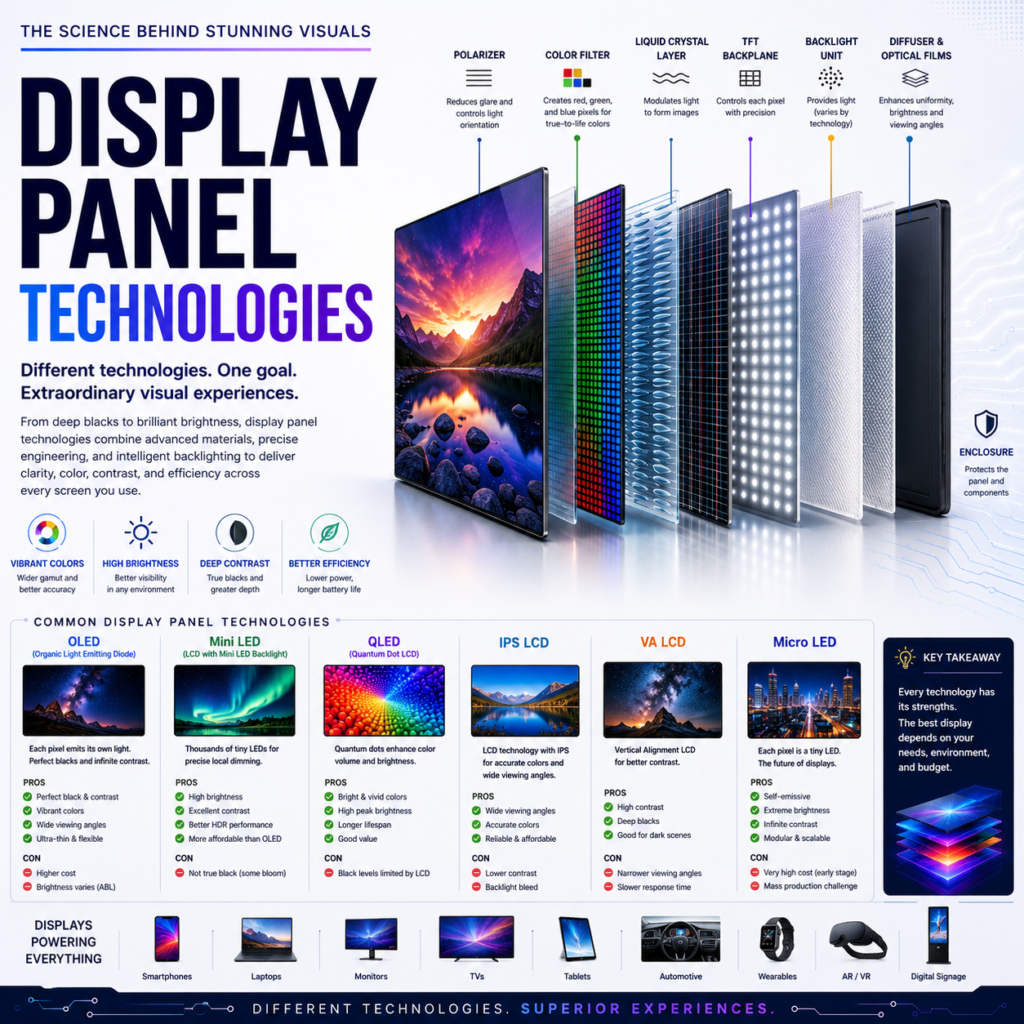

A display panel is the physical image-forming assembly that contains the structures required to create or modulate individual pixels.

Depending on the technology, this can include:

substrate
thin-film transistors
liquid-crystal layer
OLED emissive materials
color-generation structures
electrodes
pixel circuits
encapsulation
optical layers

The exact structure depends on the display technology.

A conventional LCD and an OLED panel therefore should not be thought of as the same object with different materials.

They solve the image-generation problem differently.

2. The LCD Panel Family

LCD remains one of the largest and most diverse panel families.

At the panel level, the most important traditional architectures include:

There are also related technologies and manufacturer-specific variants such as:

PLS
ADS
AHVA
IGZO-based LCD implementations

These technologies generally use liquid crystals to control the transmission of light from a backlight.

The biggest differences arise from how the liquid crystals are arranged and controlled.

3. TN : Twisted Nematic

TN stands for Twisted Nematic.

It is one of the oldest major LCD panel architectures.

TN became particularly important because it offered:

relatively fast response
relatively low manufacturing cost
high refresh-rate potential
mature manufacturing

This made TN particularly popular in:

gaming monitors
affordable monitors
laptops
older mobile and computing products

The weaknesses

TN traditionally suffers from:

weaker viewing angles
less consistent image quality across viewing positions
weaker color performance than many modern IPS alternatives

As a result, TN has become less dominant in premium consumer displays.

Why TN still matters

TN is historically important because it demonstrates one of the central engineering trade-offs of display design:

Fast response and low cost can come at the expense of viewing quality and color consistency.

4. IPS : In-Plane Switching

IPS stands for In-Plane Switching.

IPS changed LCD design by altering how liquid-crystal molecules move relative to the display plane.

The technology became widely adopted because it can provide:

wide viewing angles
good color consistency
strong image quality
good suitability for professional displays

IPS became particularly important in:

monitors
laptops
tablets
smartphones
professional displays

IPS strengths

Viewing angles

Images generally remain more consistent when viewed away from the center.

Color

IPS panels became strongly associated with good color reproduction and consistency.

Professional applications

Photography, design, video and other color-sensitive workloads have historically benefited from high-quality IPS panels.

IPS limitations

Traditional IPS designs can have:

lower native contrast than many VA panels
IPS glow
backlight bleed
varying response characteristics

Modern implementations have improved substantially, but the fundamental trade-offs remain relevant.

5. VA : Vertical Alignment

VA stands for Vertical Alignment.

VA panels use liquid-crystal structures that can provide higher native contrast than many conventional IPS designs.

Major strengths

strong contrast
deeper blacks than typical LCD IPS
good suitability for movies and gaming
strong large-screen applications

Limitations

Historically, VA panels have had:

narrower viewing characteristics than IPS
slower dark-level transitions in some implementations
potential motion artifacts

Modern high-performance VA panels have improved considerably.

Where VA is important

VA is particularly common in:

televisions
gaming monitors
large monitors
curved monitors

6. TN vs IPS vs VA

The traditional LCD comparison can be summarized as:

Characteristic	TN	IPS	VA
Viewing angles	Lower	Excellent	Good
Contrast	Lower	Moderate	High
Color consistency	Moderate	Strong	Good
Response potential	Very high	High	High
Gaming	Strong	Strong	Strong
Professional color work	Limited	Excellent	Good
Cost	Low	Moderate	Moderate
Common applications	Gaming / budget	Monitors / laptops	TVs / monitors

This table is useful—but it should not be treated as an absolute ranking.

Modern panel generations, manufacturers and implementations can substantially change the real-world result.

7. Beyond the Traditional LCD Names

The LCD industry has developed many variations beyond the three classic categories.

PLS

Samsung developed Plane-to-Line Switching, generally positioned as an alternative to IPS-style LCD technology.

Advanced Super Dimension Switch is another LCD architecture associated with wide viewing angles and high-resolution applications.

AHVA

Despite its name, Advanced Hyper-Viewing Angle is an IPS-type technology associated with AU Optronics.

IGZO

IGZO refers to an oxide semiconductor material system used in thin-film transistor backplanes.

It can enable characteristics such as:

high pixel density
lower leakage
power efficiency
high-resolution displays

This introduces an important concept:

Panel technology and backplane technology are not always the same thing.

We will examine that distinction in detail in the next article.

8. OLED Panel Architecture

OLED panels work differently from LCD panels because the pixels are self-emissive.

But even within OLED, there is no single architecture.

The OLED family includes:

PMOLED
AMOLED
flexible OLED
rigid OLED
LTPS OLED
LTPO OLED
WOLED
QD-OLED
tandem OLED
RGB OLED

These approaches differ in:

pixel architecture
backplane
light-emitting materials
color-generation method
substrate
efficiency
brightness
lifetime
manufacturing process

9. PMOLED vs AMOLED

The distinction between PMOLED and AMOLED is fundamental.

PMOLED

Passive-Matrix OLED

The display uses a simpler addressing architecture.

PMOLED can work well for:

small displays
simple interfaces
low-resolution applications

AMOLED

Active-Matrix OLED

Each pixel is controlled through an active transistor-based circuit.

This makes AMOLED suitable for:

smartphones
tablets
watches
laptops
televisions
high-resolution displays

Why AMOLED became dominant

Modern high-resolution OLED displays require precise control over enormous numbers of pixels.

Active-matrix addressing provides the control architecture necessary for these large, high-resolution panels.

10. Flexible OLED

Flexible OLED is one of the technologies that fundamentally changed device design.

Instead of relying entirely on rigid glass structures, flexible OLED panels can use flexible substrates and supporting structures.

This enables:

curved displays
edge displays
foldable smartphones
rollable concepts
unconventional device shapes

The display itself, however, is only one part of making a foldable device possible.

The final product also requires:

flexible cover materials
hinge engineering
encapsulation
mechanical support
touch integration

Therefore:

A flexible OLED does not automatically mean a flexible device.

The complete mechanical system must support it.

11. LTPS OLED

LTPS means Low-Temperature Polycrystalline Silicon.

It is primarily a TFT backplane technology used to control OLED pixels.

LTPS became particularly important for mobile OLED panels because it can support:

high pixel density
strong transistor performance
compact pixel circuits

This distinction is important enough to remember:

LTPS is primarily about the transistor/backplane architecture—not the OLED light-emitting mechanism itself.

12. LTPO OLED

LTPO means Low-Temperature Polycrystalline Oxide.

It combines different transistor technologies to create a backplane that can support more flexible control of display refresh and power behavior.

LTPO became particularly important for:

smartphones
smartwatches
premium tablets
laptops

It enables very low refresh rates when high refresh is unnecessary while still supporting high refresh rates when needed.

This can reduce display power consumption.

Again:

LTPO is a backplane technology used with OLED panels, not a completely separate fundamental display type.

This distinction is essential when reading smartphone specifications.

13. WOLED

WOLED is commonly associated with OLED architectures that use a white-emitting OLED structure combined with color filtering.

A simplified conceptual structure is:

OLED Light Source
       ↓
Color Generation / Filter Structure
       ↓
RGB Image

WOLED has been particularly important in large OLED televisions and displays.

Advantages

scalable large-panel manufacturing
strong contrast
high-quality image
mature OLED TV ecosystem

Limitations

Color-generation efficiency and brightness characteristics differ from other OLED architectures.

WOLED should therefore not simply be treated as identical to smartphone AMOLED or QD-OLED.

14. QD-OLED

QD-OLED combines OLED light generation with quantum-dot color conversion.

The architecture is fundamentally different from a conventional LCD-based quantum-dot display.

A simplified concept is:

OLED Light Source
       ↓
Blue Light
       ↓
Quantum-Dot Conversion
       ↓
Red / Green / Blue Output

Quantum dots convert selected wavelengths into highly saturated colors.

Why QD-OLED matters

It combines characteristics of:

OLED self-emission
quantum-dot color conversion

Potential advantages include:

strong color volume
excellent contrast
wide color gamut
high image quality

QD-OLED has become especially important in:

premium monitors
gaming displays
televisions

15. Tandem OLED

Tandem OLED uses multiple emissive OLED layers arranged together.

The basic idea is to distribute the electrical workload across multiple emissive structures.

Potential benefits include:

higher brightness
improved efficiency
longer operational lifetime

Tandem OLED has attracted significant attention for:

automotive displays
tablets
laptops
professional displays

It represents an important direction in OLED development because future display performance is increasingly about efficiency and lifetime, not simply contrast.

16. RGB OLED

Another approach is to generate red, green and blue light directly through separate OLED emissive elements.

Conceptually:

Pixel
├── Red OLED
├── Green OLED
└── Blue OLED

This can provide direct control over each primary color, but manufacturing and lifetime considerations make the architecture challenging at large scale.

Different OLED manufacturers therefore use different approaches depending on the target application.

17. Micro-OLED

Micro-OLED, often referred to as OLED-on-silicon, places an extremely small OLED display on a silicon backplane.

This is particularly important for:

VR
AR
XR
electronic viewfinders

The objective is very high pixel density in a very small physical area.

That makes Micro-OLED fundamentally interesting for near-eye displays.

It is not simply a “small AMOLED.”

The manufacturing architecture and application requirements are different.

18. MicroLED: A Different Panel Architecture

MicroLED deserves separate treatment because it is not an OLED panel.

MicroLED uses microscopic inorganic LEDs as individually controlled light-emitting elements.

Conceptually:

Pixel
├── Red MicroLED
├── Green MicroLED
└── Blue MicroLED

Like OLED, MicroLED is self-emissive.

But unlike OLED, it does not depend on organic emissive materials.

Potential advantages include:

high brightness
strong contrast
fast response
long lifetime
high efficiency potential

The central challenge remains manufacturing.

The need to accurately produce and assemble enormous numbers of microscopic LEDs makes mass production difficult and expensive.

19. Mini-LED and the Panel Question

Mini-LED deserves special clarification.

A Mini-LED display is generally:

LCD panel + Mini-LED backlight

Therefore, Mini-LED is primarily a backlight technology, not an LCD panel architecture like IPS or VA.

For example:

Mini-LED Laptop Display

Mini-LED Backlight
        ↓
       LCD
        ↓

An LCD panel can therefore use:

conventional LED backlighting
Mini-LED backlighting

without changing the fundamental fact that the image-forming layer is LCD.

This is one of the most important distinctions consumers need to understand.

20. Panel Technology vs Backplane Technology

This distinction deserves its own section because it will appear repeatedly in future Digital Plaza articles.

Consider an OLED smartphone display.

It might be described as:

AMOLED + LTPO + 120Hz

Those three terms do not describe the same layer.

AMOLED

Describes the active-matrix OLED display architecture.

LTPO

Describes the transistor/backplane technology.

120Hz

Describes the refresh capability.

So:

AMOLED
   ↓
LTPO Backplane
   ↓
Pixel Architecture
   ↓
120Hz Refresh

This is why a display specification sheet can appear to contain several overlapping technologies when they actually describe different layers.

21. Panel Technology and Real-World Performance

Panel architecture influences display behavior, but it does not determine every aspect of the final experience.

A display’s actual performance also depends on:

backplane
pixel structure
emissive materials
backlight
driver electronics
image processor
calibration
firmware
optical layers
thermal conditions

Therefore:

Panel technology is an important predictor of performance, but it is not a complete performance specification.

A high-end IPS panel can outperform a poor OLED implementation in some characteristics.

A premium OLED can outperform LCD dramatically in others.

The engineering implementation matters.

22. Panel Technology by Device

Smartphones

Most premium smartphones use:

AMOLED
LTPO AMOLED
flexible OLED

Lower-cost smartphones can still use LCD.

Tablets

Common technologies include:

IPS LCD
OLED
Mini-LED LCD

Laptops

The main choices increasingly include:

IPS LCD
VA LCD
OLED
Mini-LED LCD

Monitors

The landscape includes:

TN
IPS
VA
OLED
QD-OLED
Mini-LED LCD

Televisions

Major architectures include:

LCD
VA LCD
IPS-type LCD
WOLED
QD-OLED
Mini-LED LCD
emerging MicroLED

XR

Important technologies include:

LCD
OLED
Micro-OLED

The extremely high pixel density requirements of near-eye displays make Micro-OLED particularly important.

23. How to Read a Display Specification

Suppose a phone specification says:

6.8-inch LTPO AMOLED, 120Hz, HDR, 2,800 × 1,260

A reader should interpret it as several different layers of information.

AMOLED

Panel/display architecture

LTPO

Backplane technology

120Hz

Refresh capability

HDR

Image/dynamic-range capability

2,800 × 1,260

Resolution

6.8 inches

Physical screen size

These specifications describe different aspects of the display.

They should never be treated as synonyms.

24. Which Panel Technology Is Best?

There is no universal winner.

TN

Best suited to applications where:

cost matters
very fast response is important
viewing angles are less important

IPS

Strong choice where:

viewing angles matter
color consistency matters
LCD economics are important

VA

Strong choice where:

contrast matters
large displays are involved
LCD remains desirable

AMOLED / OLED

Strong choice where:

contrast matters
thinness matters
flexibility matters
premium image quality matters

QD-OLED

Strong choice where:

OLED contrast is desired
high color volume matters
premium monitor/TV performance is required

WOLED

Important for:

large OLED televisions
large premium displays

Micro-OLED

Particularly suited to:

XR
VR
AR
near-eye applications

MicroLED

Potentially compelling where:

extreme brightness
contrast
durability
large premium displays

are priorities and manufacturing economics can be justified.

25. The Bigger Technology Story

The evolution of panel technology is not simply a race from:

TN → IPS → OLED → MicroLED

Instead, multiple architectures are evolving simultaneously.

LCD continues to improve through:

better TFTs
improved backplanes
Mini-LED backlighting
better local dimming
higher refresh rates

OLED continues to evolve through:

LTPO
tandem structures
improved emissive materials
better efficiency
higher brightness
improved lifetime

MicroLED continues to develop through:

manufacturing improvements
mass transfer
smaller LED structures
improved yield

Meanwhile, Micro-OLED is opening another path for near-eye displays.

The display industry is therefore becoming more specialized, not simply converging on one universal panel technology.

26. What Comes Next?

The next major display breakthroughs are likely to come from several areas simultaneously.

More efficient OLED

The industry is working toward greater brightness and lifetime without proportionally increasing power consumption.

Tandem architectures

Multiple emissive layers may become increasingly important for high-brightness and long-life applications.

Advanced backplanes

LTPO and oxide technologies will continue to expand beyond smartphones.

MicroLED

Manufacturing remains the critical frontier.

Micro-OLED

Near-eye applications may continue driving investment in extremely high-density displays.

New materials

Advances in emissive materials, quantum dots and semiconductor backplanes can change the economics and performance of future displays.

New form factors

Foldable, rollable, transparent and other unconventional displays will depend on improvements across the entire panel stack—not merely the emissive material.

27. What the Reader Should Remember

A display specification such as:

OLED, IPS, QD-OLED or VA

is only telling you part of the story.

To properly understand a display, you need to ask:

What is the display type?

↓

What is the panel architecture?

↓

What backplane controls the pixels?

↓

How are the pixels/subpixels constructed?

↓

Where does the light come from?

↓

How is brightness controlled?

↓

How is color generated?

↓

How is the panel driven?

↓

How does it handle refresh and motion?

↓

How is HDR processed?

↓

How much power does it consume?

↓

How was it manufactured?

That is the difference between reading a specification sheet and actually understanding display technology.

Final Takeaway

The most important lesson is simple:

Display type tells you what fundamental technology is being used. Panel technology tells you how that technology is implemented.

An LCD can be TN, IPS or VA.

An OLED can be AMOLED, WOLED, QD-OLED, tandem or another architecture.

LTPO does not replace OLED; it changes how the OLED pixels are electrically controlled.

Mini-LED does not replace LCD; it improves the way an LCD panel is illuminated.

Micro-OLED is not merely a smaller phone OLED; it represents a specialized high-density architecture for near-eye applications.

MicroLED is not Mini-LED; it is a fundamentally different self-emissive architecture.

Once these distinctions are clear, display specifications become much easier to understand—and the next layer, Backplane Technology, becomes the logical place to go deeper.
