Modern touchscreens combine electrical sensing layers, touch controllers, software algorithms and input technologies to detect fingers, gestures and styluses, determine their position and characteristics, and translate physical interaction into digital commands.

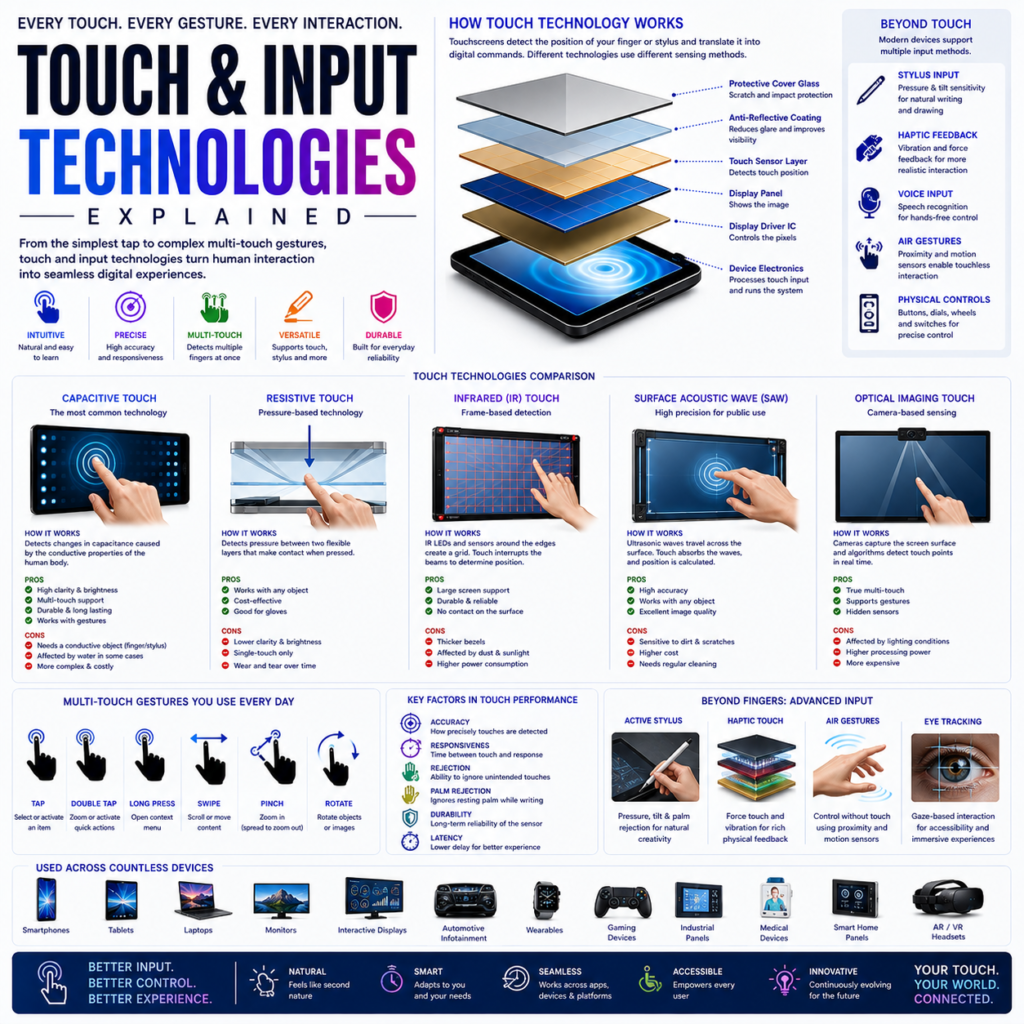

Introduction: The Screen Is Also an Input Device

A modern smartphone display does two jobs.

It:

shows information

and:

detects interaction.

When you tap an icon, swipe through a webpage or draw with a stylus, the device must determine:

  • where you touched
  • when you touched
  • how you moved
  • how many fingers are involved
  • sometimes how hard you pressed
  • sometimes what type of input device you used

The basic system is:

Finger / Stylus
       ↓
Touch-Sensing Layer
       ↓
Touch Controller
       ↓
SoC
       ↓
Operating System
       ↓
Application

This creates a second major pathway alongside the image pipeline.

1. Display Output vs Touch Input

A touchscreen contains two conceptual systems.

Display pathway
SoC
 ↓
Display Controller
 ↓
Display Driver
 ↓
Panel
 ↓
Touch pathway
Finger / Stylus
 ↓
Touch Sensor
 ↓
Touch Controller
 ↓
SoC
 ↓
OS
 ↓
Application

These systems operate together but perform completely different functions.

2. What Is Capacitive Touch?

Modern smartphones and tablets overwhelmingly rely on capacitive touch sensing.

The basic principle is that the human body can influence an electrical field.

A touch sensor creates an electrical pattern across the surface.

When a finger approaches or touches the surface, it changes that electrical behavior.

The controller detects the change and calculates the touch position.

Conceptually:

Electrical Field
────────────────────
     ↓
   Finger
     ↓
Field Disturbance
     ↓
Touch Detection

3. Projected Capacitive Touch

One of the most important touchscreen technologies is:

Projected Capacitive Touch — PCAP

Instead of having one simple conductive surface, the sensor uses a patterned electrode matrix.

Conceptually:

X X X X X X
Y Y Y Y Y Y
X X X X X X
Y Y Y Y Y Y

The controller monitors interactions between these electrodes.

This enables precise multi-touch detection.

4. Mutual Capacitance

Modern multi-touch systems commonly use mutual capacitance.

Imagine two electrode layers:

X electrodes
────────────

Y electrodes
│ │ │ │ │ │

The intersections create measurable capacitive relationships.

When a finger approaches an intersection, the electrical coupling changes.

The controller can identify the affected region.

This provides:

  • precise position
  • multi-touch
  • gesture recognition

5. Self-Capacitance

Another approach is:

self-capacitance

Here, the system measures changes in the capacitance of individual electrodes relative to a reference.

It can be useful in certain touch implementations.

However, self-capacitance and mutual capacitance have different trade-offs, particularly for multi-touch tracking.

6. How Does the Touch Controller Work?

The touch controller is a dedicated electronic system responsible for scanning the sensor.

A simplified architecture:

Touch Sensor
     ↓
Analog Front End
     ↓
Touch Controller
     ↓
Signal Processing
     ↓
Touch Coordinates
     ↓
SoC

The controller measures very small electrical changes.

It must distinguish:

real touch

from:

  • electrical noise
  • display interference
  • charger noise
  • moisture
  • accidental contact

This is a sophisticated signal-processing problem.

7. Touch Coordinates

The controller ultimately needs to convert sensor measurements into coordinates.

For example:

Screen
┌──────────────────┐
│                  │
│       ●          │
│                  │
│                  │
└──────────────────┘

Touch = X: 720
        Y: 430

The operating system can then interpret the coordinate as:

tap / swipe / drag / gesture

8. Multi-Touch

Modern touchscreens can detect multiple simultaneous contacts.

For example:

┌──────────────────┐
│  ●          ●    │
│                  │
│       ●          │
│                  │
└──────────────────┘

The controller tracks each touch point independently.

This enables:

  • pinch-to-zoom
  • two-finger scrolling
  • rotation
  • gaming controls
  • multi-finger gestures

9. Touch Sampling Rate

A specification such as:

240Hz touch sampling

describes how frequently the touch system can sample input under the relevant conditions.

It is not the same as:

240Hz display refresh.

This distinction is essential.

Display refresh

How frequently the display updates.

Touch sampling

How frequently the touch system samples interaction.

They can operate at different rates.



10. Touch Sampling vs Touch Response

A high touch sampling rate does not automatically guarantee extremely low latency.

The complete chain is:

Finger
 ↓
Touch Sensor
 ↓
Touch Controller
 ↓
Filtering
 ↓
SoC
 ↓
OS
 ↓
Application
 ↓
Frame Rendering
 ↓
Display

Every stage contributes to the final response time.

Therefore:

Touch sampling rate is a capability, not a complete latency measurement.

11. Touch Latency

Touch latency is the time between:

physical interaction

and:

visible response.

It can include:

  • sensor acquisition
  • controller processing
  • communication
  • OS processing
  • application response
  • rendering
  • display scanout
  • pixel response

This is why two devices with identical touch sampling rates can still feel different.

12. Touch Controller and Display Refresh

The touch and display systems must work together.

Suppose:

Touch = 240Hz

Display = 120Hz

The touch system can collect input more frequently than the display can present new frames.

This can still be useful because it can provide more timely input information to the system.

But it does not mean the screen itself visually updates 240 times per second.

13. In-Cell Touch

In some displays, touch-sensing functionality is integrated into the display structure.

This can reduce the need for a separate external touch panel.

Advantages can include:

  • thinner construction
  • lower optical stack height
  • reduced weight
  • improved integration

This is particularly useful in smartphones and tablets.

14. On-Cell Touch

Another architecture places touch electrodes directly on or within the display stack rather than using a completely separate sensor layer.

Conceptually:

Cover Glass
     ↓
Touch Layer
     ↓
Display

This can also reduce thickness compared with older approaches.

15. In-Cell vs On-Cell

These terms describe different approaches to integrating touch with the display.

The exact stack varies by manufacturer.

The broader industry direction is:

Integrate more functionality into fewer physical layers.

That can improve:

  • thickness
  • weight
  • optical performance
  • manufacturing efficiency

16. Touch and OLED

OLED displays introduce their own challenges.

The display’s electrical operation can generate interference that the touch system must distinguish from the tiny capacitance changes caused by a finger.

This creates an engineering problem involving:

display driving + touch sensing + signal processing

at the same time.

Advanced touch controllers therefore use sophisticated noise-rejection techniques.

17. Touch and LCD

LCD systems can also generate electrical interference.

The touch system has to coexist with:

  • TFT switching
  • source/gate driving
  • backlight
  • display refresh

Therefore, touch sensing is never simply an isolated electrical circuit.

18. Touch Through Glass

Modern touchscreens are designed to detect fingers through protective cover materials.

The sensor therefore has to work despite:

  • cover glass thickness
  • coatings
  • air gaps
  • adhesives
  • display layers

This is one reason sensor sensitivity and signal processing are important.

19. Wet Finger and Glove Detection

Real-world environments create difficult conditions.

A touchscreen may encounter:

  • water
  • rain
  • sweat
  • gloves
  • conductive objects

Water can alter electrical characteristics significantly.

Therefore touch controllers use algorithms designed to distinguish:

intentional finger input

from:

environmental interference.

20. Stylus Technology

Stylus input is more sophisticated than simple finger touch.

A modern active stylus can provide:

  • position
  • pressure
  • tilt
  • buttons
  • hover
  • palm rejection

The stylus and display system can communicate using dedicated sensing technologies.

21. Passive vs Active Stylus



Passive stylus

Acts primarily like a conductive finger.

The touchscreen detects it using ordinary capacitive sensing.

Active stylus

Contains electronics and communicates with the display/digitizer system.

This enables much more information to be transmitted.

For example:

Active Pen
│
├── Position
├── Pressure
├── Tilt
├── Hover
└── Buttons

22. Pressure Sensitivity

Pressure-sensitive styluses can detect different force levels.

This is particularly important for:

  • drawing
  • handwriting
  • digital art
  • note-taking

A simple conceptual relationship:

Low Pressure
     ↓
Thin / Light Stroke

High Pressure
     ↓
Thick / Strong Stroke

The exact behavior depends on software and stylus implementation.

23. Tilt Detection

A capable stylus can also detect its angle relative to the display.

This enables more natural drawing behavior.

For example:

Pen upright
   ↓
Fine stroke

Pen tilted
   ↓
Broader stroke

This requires more advanced digitizer sensing than simple finger touch.

24. Hover

Some stylus systems can detect the pen before it physically touches the display.

This is:

hover detection.

The system can show:

  • cursor position
  • preview
  • tooltip
  • UI interaction

before contact.

This is particularly useful for creative applications and precision interfaces.

25. Palm Rejection

When writing on a tablet, the user’s palm may rest on the display.

The system needs to distinguish:

stylus

from:

palm.

This is achieved through a combination of:

  • stylus identification
  • touch sensing
  • size
  • movement
  • software algorithms

Good palm rejection is critical for handwriting.

26. Touch Controller and Software

Hardware sensing alone is not enough.

The OS receives touch information and interprets it.

The software stack can include:

Touch Sensor
     ↓
Touch Controller
     ↓
Firmware
     ↓
OS Input Stack
     ↓
Gesture Recognition
     ↓
Application

This is where:

  • tap
  • swipe
  • pinch
  • drag
  • long press

are recognized.

27. Gesture Recognition

The touchscreen primarily detects physical contact data.

The operating system interprets that data into gestures.

For example:

Touch Points
     ↓
Movement
     ↓
Gesture Recognition
     ↓
"Swipe"
     ↓
Application Action

This is an important distinction:

The touch controller detects interaction; software decides what that interaction means.

28. Touch and Gaming

Gaming requires:

  • high touch sampling
  • low touch latency
  • fast processing
  • rapid display refresh
  • fast pixel response

The complete path becomes:

Finger
 ↓
Touch Sensor
 ↓
Touch Controller
 ↓
SoC
 ↓
Game
 ↓
GPU
 ↓
Display

The goal is to minimize the time from:

finger movement → visible game response.

29. Touch and Haptics

Touch input is increasingly combined with haptic feedback.

The system becomes:

Touch
 ↓
System
 ↓
Action
 ↓
Haptic Actuator
 ↓
Physical Feedback

Haptics give the user confirmation that an action occurred.

30. Haptic Technologies

Modern devices can use actuators such as:

  • eccentric rotating mass motors
  • linear resonant actuators
  • advanced piezoelectric systems

High-quality haptics can provide:

  • taps
  • clicks
  • textures
  • alerts
  • gaming feedback

The goal is to create a sense of physical interaction with an otherwise flat surface.

31. Touch + Haptics + Display

A sophisticated interaction system combines:

INPUT
Touch / Stylus
     ↓
PROCESSING
SoC + OS
     ↓
OUTPUT
Display + Haptics

This is the foundation of modern graphical user interfaces.

32. Touch Sampling and Display Refresh Together

Consider a 120Hz smartphone.

Its system might have:

120Hz display

and:

240Hz touch sampling

The touch system can sample more frequently than the display refreshes.

This does not create a 240Hz display.

Instead:

More frequent input sampling can give the system more information about user movement between display frames.

The benefit depends on the complete input-to-photon pipeline.

33. Touch and Latency

A useful model is:

Touch Latency
│
├── Sensor Detection
├── Controller Processing
├── Communication
├── OS Processing
├── Application Processing
├── GPU Rendering
├── Display Queue
├── Scanout
└── Pixel Response

This is why “1ms touch response” marketing claims should be treated carefully.

A single component’s response time is not the same as total system latency.

34. Touch Technology in Smartphones

Smartphones prioritize:

  • thinness
  • low power
  • high sensitivity
  • multi-touch
  • fast response
  • water resistance
  • integration with OLED

Modern implementations frequently integrate touch sensing closely with the display.

35. Touch Technology in Tablets

Tablets place greater emphasis on:

  • large-area sensing
  • stylus
  • palm rejection
  • handwriting
  • drawing
  • multi-touch

This makes digitizer technology particularly important.

36. Touch Technology in Laptops

Touch laptops can combine:

  • conventional touch
  • active pen
  • trackpad
  • keyboard
  • haptics

The display may support touch while the system also maintains traditional PC input methods.

37. Touch Technology in Foldables

Foldable displays create new engineering challenges.

The touch system must survive repeated bending.

It therefore has to maintain:

  • electrical continuity
  • sensor sensitivity
  • durability
  • precise coordinate mapping

The display stack must be engineered as a flexible system rather than simply placing a conventional glass touch layer on top.

38. Touch and Foldable Form Factors

A simplified foldable stack might be:

Cover Material
     ↓
Touch Sensor
     ↓
OLED
     ↓
Flexible Backplane
     ↓
Support Layers

Every layer must accommodate mechanical deformation.

This makes touch integration a significant part of foldable-display engineering.

39. Touch Technology and Security

Touch sensing can also become part of biometric systems.

Examples include:

  • fingerprint sensing
  • pressure sensing
  • stylus authentication

In-display fingerprint systems may use optical or ultrasonic sensing technologies depending on the implementation.

These are related to display integration but are technically distinct from ordinary capacitive touch.

40. The Touch Technology Hierarchy

TOUCH & INPUT
│
├── Capacitive
│   ├── Mutual Capacitance
│   └── Self Capacitance
│
├── Integration
│   ├── On-Cell
│   └── In-Cell
│
├── Input
│   ├── Finger
│   ├── Passive Stylus
│   └── Active Stylus
│
├── Stylus Features
│   ├── Pressure
│   ├── Tilt
│   ├── Hover
│   └── Palm Rejection
│
├── Performance
│   ├── Sampling Rate
│   ├── Touch Latency
│   └── Multi-Touch
│
└── Feedback
    └── Haptics

41. What the Reader Should Remember



Touch sampling rate

How frequently the touch system samples input.

Display refresh rate

How frequently the display can update.

Touch latency

Time from interaction to system response.

Pixel response

Time for the physical display pixel to change.

Stylus

Can provide significantly more information than ordinary finger touch.

Digitizer

The sensing system used for precise pen/input detection.

Haptics

Physical feedback that complements visual interaction.

These concepts should not be treated as interchangeable.

42. The Complete Interaction Pipeline

We can now combine everything:

USER
 ↓
Finger / Stylus
 ↓
Touch Sensor
 ↓
Touch Controller
 ↓
Firmware
 ↓
Operating System
 ↓
Application
 ↓
CPU / GPU
 ↓
Display Engine
 ↓
Display Interface
 ↓
TCON / DDIC
 ↓
Panel
 ↓
Pixels
 ↓
Light

                +

Haptic Controller
 ↓
Actuator
 ↓
Physical Feedback

This is the complete human → machine → visual response loop

43. Why Touch Technology Matters

Touch technology is often treated as a simple feature:

“10-point multitouch”

But the real technology involves:

sensor + controller + firmware + OS + display + software + haptics.

A premium touchscreen therefore needs more than high sensitivity.

It needs:

  • accurate coordinate detection
  • low latency
  • reliable multi-touch
  • noise rejection
  • water handling
  • stylus support
  • palm rejection
  • efficient power management
