Introduction: From Architecture to Physical Silicon

A processor begins as a design.

Engineers define:

CPU cores
GPU resources
NPU engines
cache
memory controllers
interconnects
accelerators

But a design file cannot execute software.

It must become physical semiconductor hardware.

The broad transformation is:

Architecture
      ↓
Chip Design
      ↓
Mask Data
      ↓
Wafer Fabrication
      ↓
Individual Dies
      ↓
Testing
      ↓
Packaging
      ↓
Processor
      ↓
Device

This is one of the most technologically complex manufacturing processes in the world.

1. Full Definition: What Is Semiconductor Manufacturing?

Semiconductor manufacturing is the process of converting an electronic circuit design into physical integrated circuitry on semiconductor wafers through a sequence of material deposition, lithography, etching, doping, cleaning, planarization, metallization, inspection and testing steps.

The result is a collection of semiconductor dies fabricated on a wafer.

2. What Is a Semiconductor?

A semiconductor is a material whose electrical conductivity can be controlled.

The most important material in modern computing is:

silicon.

Silicon is used because its electrical properties can be precisely engineered for transistor fabrication.

3. From Silicon to Wafer

Processor manufacturing starts with highly purified silicon.

The material is formed into a crystal and sliced into thin circular discs called:

wafers.

Conceptually:

Silicon
  ↓
Single Crystal
  ↓
Ingot
  ↓
Wafer
  ↓
Fabrication

A single wafer can contain many processor dies.

4. Wafer

A wafer is a thin, flat semiconductor substrate on which many integrated circuits are fabricated simultaneously.

Common wafer diameters include:

200 mm
300 mm

Larger wafers allow more dies to be produced from each wafer, depending on die size and manufacturing constraints.

5. Die

A die is an individual piece of semiconductor containing an integrated circuit.

For a processor:

Wafer
 ↓
Many Dies
 ↓
Test
 ↓
Separate
 ↓
Package

The die is the actual semiconductor circuit.

6. Die vs Chip vs Processor

These terms are often used interchangeably in consumer technology, but they are not identical.

Die

The physical semiconductor piece containing circuitry.

Chip

A general term that may refer to a die or packaged integrated circuit depending on context.

Processor

A functional computing component, usually referring to the complete usable device.

Package

The physical assembly containing the die and electrical connections.

7. Transistor

The transistor is the fundamental active electronic building block of modern processors.

A transistor can act as a controllable electrical switch.

Billions of transistors can be integrated into modern processors.

Conceptually:

Transistor
    ↓
Logic Gates
    ↓
Circuits
    ↓
Functional Blocks
    ↓
CPU / GPU / NPU / SoC

8. CMOS

Modern digital processors predominantly use:

CMOS : Complementary Metal-Oxide-Semiconductor

technology.

CMOS uses complementary transistor structures to implement digital logic efficiently.

It is foundational to modern integrated circuits.

9. Transistor Formation

Manufacturing creates transistor structures through repeated processes involving:

deposition
lithography
etching
implantation/doping
cleaning
annealing
planarization

These processes build extremely small structures layer by layer.

10. Lithography

Lithography is one of the central semiconductor manufacturing processes.

It transfers circuit patterns onto a wafer using a patterned exposure process.

Simplified:

Circuit Design
      ↓
Mask / Pattern
      ↓
Lithography
      ↓
Wafer Pattern

Modern semiconductor lithography operates at extraordinarily small scales.

11. Photoresist

A light-sensitive material called:

photoresist

is applied to the wafer.

Exposure changes the resist’s properties.

After development, selected regions remain or are removed according to the process.

This allows patterns to be transferred to the wafer.

12. Etching

After patterning, unwanted material can be removed through:

etching.

Etching may be:

wet chemical
plasma-based / dry

Modern semiconductor manufacturing relies heavily on highly controlled etching processes.

13. Deposition

Manufacturing repeatedly adds extremely thin layers of material through:

deposition.

These layers can serve different purposes in transistor and interconnect formation.

Examples include:

insulating materials
conductive materials
semiconductor materials

14. Doping

Pure silicon does not provide all the electrical properties required for transistor construction.

Manufacturers introduce controlled impurities into selected regions.

This is:

doping.

Doping modifies the electrical behavior of the semiconductor.

15. Ion Implantation

One important method of doping is:

ion implantation.

Selected ions are accelerated and introduced into the semiconductor at controlled energies and concentrations.

This creates regions with specific electrical properties.

16. Annealing

After certain implantation processes, thermal treatment can repair crystal damage and activate dopants.

This is generally known as:

annealing.

Precise thermal control is critical.

17. Chemical Mechanical Planarization

Semiconductor manufacturing requires extremely flat surfaces.

CMP : Chemical Mechanical Planarization

combines chemical and mechanical processes to flatten wafer surfaces.

This allows subsequent layers to be fabricated accurately.

18. Metal Interconnects

Transistors alone do not make a processor.

They must be connected.

Modern chips contain extensive networks of metal interconnects that connect:

transistors
logic gates
cache
cores
accelerators
memory interfaces

Conceptually:

Transistors
    ↓
Logic
    ↓
Interconnect
    ↓
Functional System

19. Multi-Layer Interconnect

Modern processors contain many layers of interconnect.

A simplified structure:

Top
│
├── Upper Metal Layers
├── Metal Layers
├── Lower Metal Layers
├── Transistor Structures
└── Silicon Substrate

The exact stack varies by process technology.

20. Process Node

A process node refers to a particular generation of semiconductor manufacturing technology.

Examples commonly discussed include:

7 nm
5 nm
4 nm
3 nm
2 nm

However:

Modern node numbers should not be treated as literal measurements of one specific transistor dimension.

Different semiconductor manufacturers use different naming conventions.

21. What a Smaller Node Can Enable

Moving to a newer process generation can potentially enable:

greater transistor density
improved energy efficiency
higher performance
smaller die area
additional functionality

But actual benefits depend on the complete process technology and chip design.

22. Process Node vs Architecture

These are different.

Architecture

Defines how the processor is designed.

Process technology

Defines how the physical semiconductor is manufactured.

Conceptually:

Architecture
     +
Process Technology
     ↓
Physical Processor

A new process does not automatically create a better architecture.

23. EUV Lithography

EUV = Extreme Ultraviolet lithography.

EUV uses extremely short-wavelength ultraviolet radiation to print very small circuit patterns.

It has become an important technology for advanced semiconductor manufacturing.

24. Why EUV Matters

Advanced lithography becomes increasingly difficult as circuit dimensions shrink.

EUV can reduce the number of patterning steps required for certain layers compared with older approaches.

This can help enable increasingly dense semiconductor designs.

25. DUV Lithography

DUV = Deep Ultraviolet lithography.

DUV remains important in semiconductor manufacturing.

Modern fabs can use combinations of:

EUV
DUV
multiple patterning

depending on the layer and process generation.

26. Semiconductor Manufacturing Flow

A simplified process looks like:

Silicon Wafer
      ↓
Cleaning
      ↓
Film Deposition
      ↓
Photoresist
      ↓
Lithography
      ↓
Development
      ↓
Etching
      ↓
Doping / Implantation
      ↓
Cleaning
      ↓
Planarization
      ↓
Interconnect Formation
      ↓
Inspection
      ↓
Testing

This sequence is repeated many times.

27. Why Manufacturing Requires Hundreds of Steps

A modern processor is not created in a single manufacturing operation.

Different layers and structures must be built sequentially.

Layer 1
 ↓
Layer 2
 ↓
Layer 3
 ↓
...
 ↓
Layer N

Each step must align precisely with structures created earlier.

28. Overlay Accuracy

Lithography layers must be aligned with extremely high precision.

This is known as:

overlay accuracy.

Small alignment errors can affect device performance or cause defects.

As feature sizes shrink, alignment becomes increasingly challenging.

29. Defects

Semiconductor manufacturing is extremely sensitive to defects.

Potential problems include:

particle contamination
pattern defects
material defects
alignment errors
electrical failures

Even a very small defect can affect a chip.

30. Cleanrooms

Advanced semiconductor fabrication takes place in highly controlled cleanroom environments.

Manufacturers control:

particles
humidity
temperature
chemical contamination
vibration

The objective is to prevent microscopic contamination from damaging the wafer.

31. Yield

Yield is broadly the percentage of manufactured dies that meet the required specifications.

For example:

100 manufactured dies
 ↓
95 usable
 ↓
Yield = 95%

Actual semiconductor yield calculations can be more complex.

32. Why Large Dies Are Difficult to Manufacture

Consider:

Small Die
→ More dies per wafer
→ Lower probability of defect per die
→ Potentially better economics

Large Die
→ Fewer dies per wafer
→ Greater defect exposure
→ Potentially lower yield

This is one reason very large monolithic processors can be expensive.

33. Die Size

Larger dies can provide room for:

more CPU cores
larger caches
more GPU resources
larger NPUs
additional accelerators

But larger dies also create:

manufacturing challenges
yield challenges
higher cost

This is an important engineering trade-off.

34. Wafer Economics

A wafer contains many dies.

The number of dies depends on:

wafer diameter
die area
edge exclusion
manufacturing layout

Smaller dies generally allow more dies per wafer.

35. Binning

Not every manufactured die behaves identically.

Some may:

reach higher frequencies
consume less power
contain defective sections
meet only lower performance targets

Manufacturers can classify dies into different product grades.

This is called:

binning.

36. Defective Block Disabling

A partially defective die may sometimes remain usable if a nonessential portion can be disabled.

For example:

Designed:
8 CPU cores

Manufactured:
1 core fails

Product:
7 active cores

This can improve manufacturing economics.

37. Wafer Testing

Before packaging, semiconductor dies can undergo electrical testing.

This identifies:

defective dies
electrical characteristics
performance capability

Only suitable dies proceed to later manufacturing stages.

38. Dicing

After wafer fabrication and initial testing, the wafer is separated into individual dies.

This process is known as:

dicing.

Wafer
 ↓
Individual Dies
 ↓
Packaging

39. Packaging

The package protects the die and provides electrical connections between the silicon and the external system.

A simplified structure:

Processor Package
 ┌─────────────────┐
 │ Heat Spreader   │
 │      ↓          │
 │      Die        │
 │      ↓          │
 │   Substrate     │
 │      ↓          │
 │ Contacts / BGA  │
 └─────────────────┘

The exact structure varies considerably.

40. Why Packaging Matters

Packaging affects:

electrical connectivity
thermal performance
signal integrity
memory integration
physical size
power delivery
manufacturing cost

Therefore:

Packaging is part of processor engineering, not merely a protective shell.

41. Flip-Chip Packaging

In flip-chip packaging, the die is mounted with its connection side facing the package substrate.

Tiny conductive connections connect the die to the substrate.

This provides high-density electrical connectivity.

42. Bumps

Tiny conductive structures called:

bumps

connect the die to the package substrate.

Modern packages can contain very large numbers of electrical connections.

43. Package Substrate

The substrate provides electrical routing between:

die
package contacts
external motherboard

It also contributes to mechanical stability and power delivery.

44. Heat Spreader

A processor package may include an integrated heat spreader.

Its purpose is to distribute heat from the die toward the cooling solution.

Die
 ↓
Thermal Interface
 ↓
Heat Spreader
 ↓
Cooler

This connects manufacturing and packaging directly to thermal engineering.

45. Monolithic Processor

A traditional monolithic processor places most major circuitry on one die.

┌──────────────────────┐
│ CPU GPU Cache I/O    │
│ Memory / Accelerators│
└──────────────────────┘

Advantages include:

short internal connections
unified architecture
potentially lower communication latency

But very large dies become difficult and expensive to manufacture.

46. Multi-Die Architecture

Instead of using one large die, a processor can use multiple dies.

┌────────┐ ┌────────┐
│ Die 1  │ │ Die 2  │
└────────┘ └────────┘
     │         │
     └────┬────┘
        Package

This can improve manufacturing flexibility.

47. Chiplets

A chiplet is a modular semiconductor die designed to work with other dies within a larger processor package.

Conceptually:

CPU Chiplet
     +
I/O Chiplet
     +
Cache Chiplet
     +
Accelerator Chiplet
     ↓
Complete Processor

Chiplets have become increasingly important in high-performance computing.

48. Why Chiplets Matter

Chiplets can provide:

modularity
improved manufacturing economics
product scalability
technology mixing
potentially improved yield

For example, a manufacturer can combine dies built using different process technologies.

49. Chiplet Trade-Offs

Chiplets also introduce challenges:

inter-die latency
interconnect power
packaging complexity
thermal management
software and architecture complexity

Therefore chiplets are not automatically superior to monolithic designs.

50. Advanced Packaging

Advanced packaging integrates multiple dies or components using high-density connections.

Technologies include:

2.5D integration
3D stacking
silicon interposers
advanced substrates
hybrid bonding

These approaches are increasingly important for AI and high-performance computing.

51. 2.5D Packaging

2.5D packaging places multiple dies side-by-side on an advanced interconnection layer such as an interposer.

Conceptually:

┌───────┐ ┌───────┐ ┌───────┐
│ Die A │ │ Die B │ │ HBM   │
└───────┘ └───────┘ └───────┘
     \       |       /
      ── Interposer ──

It enables very high-bandwidth communication between components.

52. 3D Stacking

3D packaging places dies vertically.

┌─────────┐
│ Die     │
├─────────┤
│ Die     │
├─────────┤
│ Die     │
└─────────┘

This can dramatically increase integration density.

53. Why 3D Packaging Is Important

3D integration can reduce physical distance between components and increase connection density.

Potential advantages include:

higher bandwidth
lower communication distance
greater integration
improved package density

But thermal management becomes more challenging.

54. HBM

HBM = High Bandwidth Memory.

HBM uses vertically stacked memory dies connected through very high-density interconnections.

It provides:

very high bandwidth
wide memory interfaces
compact high-performance integration

HBM is particularly important in AI accelerators and high-performance computing.

55. HBM and AI

Modern AI models require enormous data movement.

Therefore:

AI Accelerator
      ↓
High-Bandwidth Interconnect
      ↓
HBM

can provide the memory bandwidth required by high-performance AI workloads.

56. HBM vs GDDR

Feature	HBM	GDDR
Packaging	Stacked / advanced package	Typically discrete memory chips
Interface	Very wide	Narrower per chip
Bandwidth	Extremely high	High
Power efficiency	Can be strong per bit transferred	Depends on implementation
Packaging complexity	High	Lower
Common applications	AI/HPC accelerators	Graphics cards

Both remain important for different markets.

57. 3D Cache

Some processors use vertically stacked cache technology.

The concept is:

CPU Die
   ↕
Additional Cache Die

This can dramatically increase cache capacity without requiring a much larger 2D die footprint.

58. Hybrid Bonding

Advanced packages increasingly use extremely dense direct bonding methods.

Hybrid bonding can create very fine-pitch connections between semiconductor layers.

This enables high-density 3D integration.

59. Thermal Challenge of 3D Integration

Stacking improves density.

But:

More Layers
 ↓
More Heat Sources
 ↓
Harder Heat Removal

A buried die can be more difficult to cool than a surface die.

Therefore advanced packaging must be designed together with thermal architecture.

60. Package-Level Power Delivery

As processor power increases, the package must provide high-current, low-loss power delivery.

This requires careful design of:

package contacts
substrate routing
power planes
voltage domains

Packaging therefore affects electrical performance as well as physical integration.

61. Signal Integrity

At high data rates, electrical signals can suffer from:

interference
loss
reflections
timing issues

Advanced packages and interconnects must maintain signal integrity.

This becomes especially important for:

chiplets
HBM
high-speed I/O
multi-die systems

62. Packaging and Memory

Memory can be:

external to the package
integrated into the package
stacked
closely coupled to compute dies

The closer memory is to the processor, the more opportunities exist for high bandwidth and lower communication distance.

But packaging complexity and cost increase.

63. Processor Manufacturing vs Packaging

These are separate stages.

Manufacturing

Creates the semiconductor die.

Packaging

Turns one or more dies into a usable physical processor package.

Wafer Fabrication
       ↓
      Die
       ↓
   Packaging
       ↓
Complete Processor

64. Manufacturing Specification Framework

For processor analysis, examine:

Category	What It Tells You
Process Node	Manufacturing generation
Transistor Density	Approximate integration capability
Wafer Size	Manufacturing substrate scale
Die Size	Silicon area
Transistor Count	Circuit complexity
Yield	Manufacturing success rate
Binning	Performance classification
Packaging	Physical integration
Interconnect	Die/package communication
Thermal Design	Heat transfer capability

65. Packaging Specification Framework

For advanced processors, evaluate:

Feature	Why It Matters
Monolithic	Single-die architecture
Chiplets	Modular multi-die design
2.5D	High-density side-by-side integration
3D	Vertical die stacking
HBM	Very high memory bandwidth
Interposer	Dense die-to-die connectivity
Hybrid Bonding	Extremely dense vertical connections
Substrate	Electrical and mechanical foundation
Thermal Interface	Heat transfer
Package Size	Physical platform requirements

66. Why Transistor Count Is Not Everything

A processor with more transistors is not automatically better.

Transistors can be used for:

CPU cores
cache
GPU
NPU
media engines
security
connectivity

Two chips with similar transistor counts can have radically different architectures.

67. Process Node Is Not Everything

Similarly:

3 nm
>
4 nm
>
5 nm

is not a valid universal performance ranking.

Architecture, transistor design, power targets, memory and software all matter.

Process technology is one variable within the complete design.

68. Manufacturing and Cost

Advanced processors are expensive because of:

fab construction
lithography equipment
materials
process development
mask sets
testing
packaging
yield losses

The most advanced manufacturing technologies require enormous capital investment.

69. Yield and Product Pricing

Poor yield increases the effective cost of usable chips.

Conceptually:

Wafer Cost
 ↓
Number of Usable Dies
 ↓
Cost per Good Die

Therefore yield directly influences processor economics.

70. Why Chiplets Can Improve Economics

Suppose a very large processor is divided into smaller dies.

Smaller dies may provide:

more dies per wafer
potentially better yield
reusable designs

This can reduce some manufacturing costs.

But advanced packaging introduces additional expenses.

Therefore the economic advantage depends on the complete system.

71. From Wafer to Consumer Device

The full journey can be summarized:

Architecture
 ↓
RTL / Logic Design
 ↓
Physical Design
 ↓
Mask Generation
 ↓
Wafer Fabrication
 ↓
Wafer Test
 ↓
Dicing
 ↓
Die Selection
 ↓
Packaging
 ↓
Package Test
 ↓
System Integration
 ↓
Final Product

72. The Modern Processor Is a Manufacturing Achievement

A modern processor combines:

Architecture
+
EDA
+
Semiconductor Physics
+
Lithography
+
Materials Science
+
Packaging
+
Thermal Engineering
+
Testing

The processor is therefore the product of many engineering disciplines.

73. Manufacturing Trends

The industry is increasingly pursuing:

smaller process generations
gate-all-around transistor structures
backside power delivery
advanced lithography
chiplets
2.5D packaging
3D stacking
hybrid bonding
HBM integration

The future of computing increasingly depends on both front-end transistor technology and back-end packaging technology.

74. Beyond Smaller Transistors

The semiconductor industry is gradually moving from:

“make transistors smaller”

toward a broader strategy:

Better Transistors
+
Better Interconnect
+
Better Packaging
+
More Specialized Accelerators
+
More Efficient Memory

This is a fundamental shift in processor design.

75. The Importance of Packaging in AI

AI accelerators require enormous:

compute
memory bandwidth
data movement

Advanced packaging allows compute dies and high-bandwidth memory to be placed extremely close together.

Therefore:

AI hardware performance increasingly depends on packaging as well as transistor technology.

76. Manufacturing + Architecture + Packaging

A modern processor should be understood as:

Architecture
      ↓
Microarchitecture
      ↓
Process Technology
      ↓
Die Design
      ↓
Packaging
      ↓
Memory
      ↓
Thermal System
      ↓
Software

Performance emerges from the entire stack.

77. Common Manufacturing Misconceptions

Myth 1: Smaller nanometer always means faster.

False.

Process technology and architecture are separate.

Myth 2: A 3 nm chip has transistors that are exactly 3 nm.

Not necessarily.

Modern node names are technology-generation labels, not simple ruler measurements.

Myth 3: More transistors always means better.

False.

Transistor allocation matters.

Myth 4: Packaging only protects the chip.

False.

Packaging affects bandwidth, power delivery, thermal behavior and connectivity.

Myth 5: Chiplets are always better than monolithic designs.

False.

They introduce trade-offs in latency, power, packaging and complexity.

Myth 6: HBM is simply faster RAM.

Oversimplified.

HBM is a specific high-bandwidth memory technology enabled by advanced packaging and very wide interfaces.

78. Digital Plaza Manufacturing Analysis Framework

For future processor articles and reviews, evaluate:

Silicon

process generation
transistor technology
transistor density
die size

Manufacturing

fabrication technology
lithography
yield
binning

Packaging

monolithic vs chiplet
2.5D / 3D
interposer
substrate
bonding technology

Memory

GDDR
LPDDR
HBM
cache

Thermal

package thermal characteristics
heat spreader
thermal interface

Economics

manufacturing complexity
packaging complexity
yield
estimated product positioning

79. Final Takeaway

A processor is not created simply by “printing a CPU.”

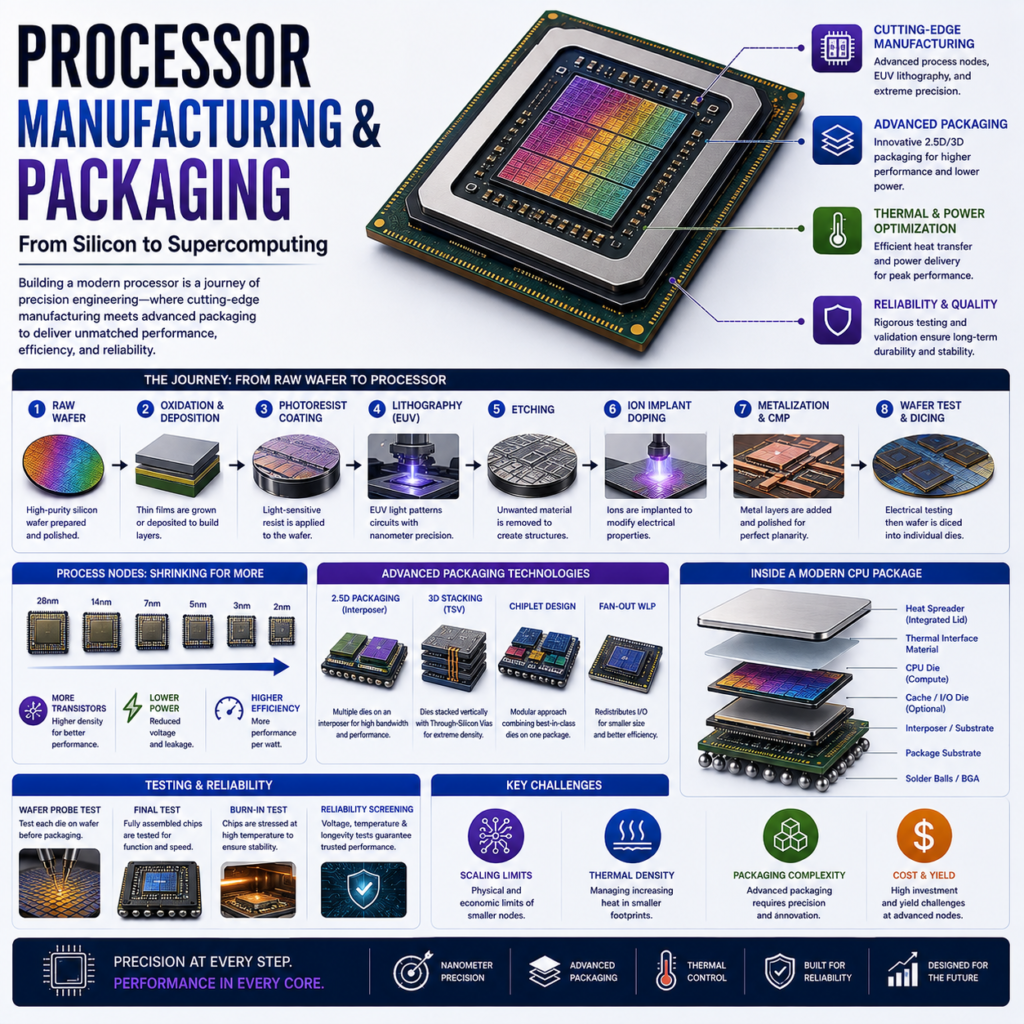

It is the result of an extraordinary manufacturing chain:

silicon → wafer → lithography → transistor formation → interconnect → die → testing → packaging → final processor.

And the industry is increasingly moving beyond traditional monolithic chips.

The modern direction is:

Advanced Transistors
        +
Chiplets
        +
2.5D Packaging
        +
3D Stacking
        +
HBM
        +
Advanced Interconnect
        ↓
Next-Generation Computing

The most important lesson is:

Processor performance is increasingly determined not only by the transistor and architecture, but by how the entire chip, memory system and package are engineered together.

This is particularly evident in AI accelerators, high-performance GPUs and modern multi-die processors.
