Meta Description
Learn how display backplane technology controls millions of pixels in modern screens. Explore TFT, a-Si, LTPS, LTPO, IGZO and oxide semiconductor technologies, how active-matrix backplanes work, why transistor mobility and leakage matter, and how backplane design affects refresh rate, power consumption, pixel density, brightness, OLED and LCD performance, flexible displays, smartphones, tablets, laptops, monitors and next-generation Micro-OLED and MicroLED displays.
In One Sentence
A display backplane is the electronic control layer that addresses and drives individual pixels, and technologies such as a-Si, LTPS, LTPO and oxide TFT determine how efficiently, precisely and rapidly a display can control those pixels.
Introduction: The Electronics Behind Every Pixel
When people look at a smartphone, tablet, laptop or monitor, they see an image.
Behind that image is an enormous electronic control system.
A modern high-resolution display can contain millions of pixels. Each pixel—or, depending on the architecture, each subpixel—must receive the correct electrical information at the correct time.
That requires a layer of electronics positioned behind the display’s image-forming elements.
This layer is called the:
Display backplane.
The backplane is one of the least visible but most important technologies in a modern display.
It influences:
- pixel addressing
- refresh rate
- response
- power consumption
- pixel density
- brightness control
- display uniformity
- manufacturing complexity
- form-factor possibilities
It is also where display technology and semiconductor technology directly meet.
2. Why Do Displays Need a Backplane?
Imagine a smartphone display with millions of pixels.
The system needs to control:
- pixel brightness
- color
- timing
- refresh
- electrical current
for enormous numbers of individual image elements.
Doing that with simple wiring would be impractical.
Instead, displays use a matrix of tiny transistors.
These transistors act as electronic switches and control elements.
This is where:
TFT — Thin-Film Transistor
becomes fundamental.
3. What Is TFT?
A Thin-Film Transistor is a transistor fabricated as part of the thin-film electronics of a display.
TFTs can be used to control individual pixels or subpixels.
A simplified active-matrix display can be represented as:
Columns
↓
┌───┬───┬───┬───┐
Rows│ T │ T │ T │ T │
↓ ├───┼───┼───┼───┤
│ T │ T │ T │ T │
├───┼───┼───┼───┤
│ T │ T │ T │ T │
└───┴───┴───┴───┘
↓
PixelsEach intersection represents part of the electrical addressing system.
The TFT allows the display electronics to selectively control the associated pixel circuitry.
This is why modern high-resolution displays are generally based on active-matrix architectures.
4. Active Matrix vs Passive Matrix
There are two fundamental ways to address display elements.
Passive Matrix
In a passive-matrix display, the addressing system uses rows and columns to control pixels without a dedicated active transistor circuit for every pixel.
It is relatively simple.
But it becomes increasingly difficult to use efficiently as resolution, size and performance requirements increase.
Passive-matrix OLEDs, or PMOLEDs, are an example.
They are suited to certain:
- small displays
- simple interfaces
- low-resolution applications
Active Matrix
Active-matrix displays place transistor-based control electronics behind the pixels.
The result is much more precise control.
Active-matrix technology is fundamental to:
- modern LCD panels
- AMOLED displays
- high-resolution OLED
- smartphones
- tablets
- laptops
- monitors
- televisions
The basic concept is:
One display contains millions of pixels; the active matrix provides the electronic infrastructure needed to control them.
5. The Backplane Is Not the Pixel
This is an important distinction.

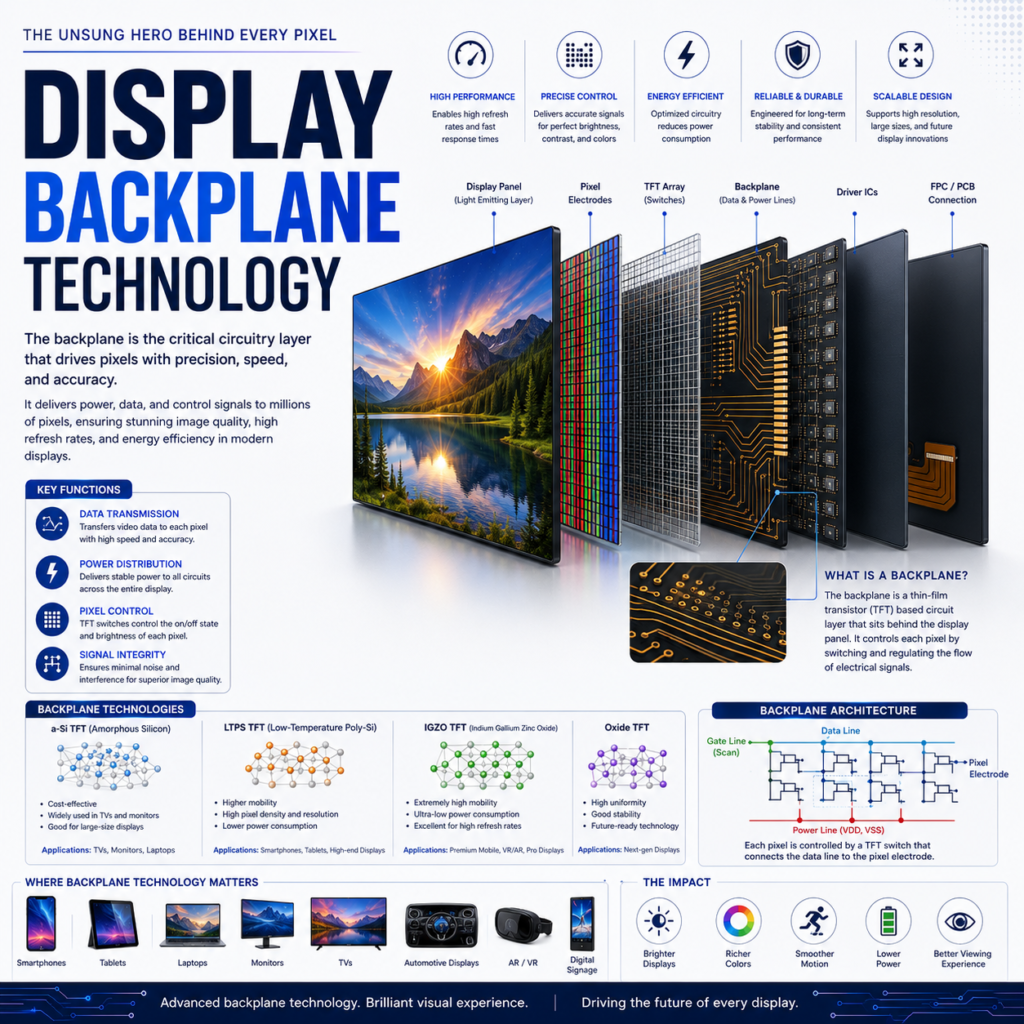

A display can be thought of as several layers.
For an OLED:
Driver Electronics
↓
TFT Backplane
↓
Pixel Circuit
↓
OLED Emissive Structure
↓
LightFor an LCD:
Driver Electronics
↓
TFT Backplane
↓
Liquid-Crystal Cell
↓
Color Filter
↓
BacklightThe backplane is therefore behind and electrically connected to the pixel system.
It is not itself the visible pixel.
6. The Main Backplane Technologies
The most important backplane technologies readers should understand are:
- a-Si
- LTPS
- LTPO
- IGZO
- oxide TFT
They are not simply generations of the same technology.
They use different semiconductor materials and transistor structures and are optimized for different combinations of:
- mobility
- leakage
- power
- pixel density
- manufacturing complexity
- cost
7. a-Si : Amorphous Silicon
a-Si means amorphous silicon.
It has historically been one of the most important TFT technologies for LCD displays.
The silicon is deposited in an amorphous, rather than crystalline, form.
Why it became important
a-Si offered:
- relatively simple manufacturing
- large-area scalability
- established production processes
- relatively low cost
That made it highly suitable for large LCD panels.
Limitations
Its electron mobility is relatively low compared with technologies such as LTPS.
Lower mobility can make it more difficult to build extremely compact, high-performance transistor circuits.
As display requirements increased, manufacturers developed higher-performance backplane technologies.
8. LTPS — Low-Temperature Polycrystalline Silicon
LTPS stands for Low-Temperature Polycrystalline Silicon.
Instead of amorphous silicon, LTPS creates a more ordered polycrystalline silicon structure.
The result is significantly higher carrier mobility.
That matters because higher mobility can allow:
- smaller transistors
- higher pixel density
- faster electrical operation
- more compact pixel circuits
LTPS became particularly important for:
- smartphone displays
- high-resolution OLED
- high-density LCD
- compact devices
9. Why LTPS Became Important for Smartphones
Smartphone displays impose unusually demanding requirements.
A smartphone may need:
- extremely high pixel density
- small physical dimensions
- high refresh rate
- low power
- thin construction
- precise pixel control
LTPS provides the electrical performance needed for these requirements.
This helped make LTPS a major backplane technology in mobile OLED displays.
But LTPS has another characteristic that becomes important:
High transistor performance does not automatically mean the lowest possible power consumption.
That led to interest in oxide technologies and hybrid backplane approaches.
10. IGZO : Indium Gallium Zinc Oxide
IGZO stands for:
Indium Gallium Zinc Oxide.
It is an oxide semiconductor used in TFT backplanes.
IGZO can offer a combination of:
- relatively high electron mobility
- low leakage current
- good pixel density
- power-efficiency potential
One of its important advantages is its ability to maintain electrical charge effectively with relatively low leakage.
That makes oxide semiconductor technologies attractive for applications where power efficiency matters.
11. Why Leakage Matters
A transistor is not a perfect switch.
Even when it is intended to be off, some unwanted current can flow.
This is called:
Leakage current.
Lower leakage can help a display maintain a pixel’s electrical state with less energy.
This becomes particularly useful when a display does not need to refresh every pixel at the maximum rate.
For example, a display showing a static image may not need to update at the same frequency as a display showing fast-moving content.
That leads directly to the importance of variable-refresh technology.
12. LTPO : Low-Temperature Polycrystalline Oxide
LTPO stands for Low-Temperature Polycrystalline Oxide.
It is best understood as a backplane architecture that combines characteristics of different transistor technologies.
In many implementations, LTPO combines:
- LTPS
- oxide TFT technology
The objective is to obtain high transistor performance while reducing leakage and enabling more flexible control of pixel operation.
This makes LTPO particularly valuable for:
- smartphones
- smartwatches
- tablets
- premium laptops
13. Why LTPO Changed Smartphone Displays
Consider a smartphone display rated at:
120Hz
That does not mean the display must operate at 120Hz continuously.
A static image does not require the same refresh behavior as a fast-moving game.
LTPO enables display systems to dynamically alter refresh behavior over a wide range.
Conceptually:
Fast gaming
↓
120Hz
Scrolling
↓
90–120Hz
Static interface
↓
30–60Hz
Always-on content
↓
Very low refreshThe exact range varies by panel and device.
The principle is what matters:
The display can adapt its refresh behavior to the content.
That can reduce power consumption.
14. LTPO Is Not a Display Type
This is one of the most important concepts in the entire display knowledge base.
Suppose a smartphone specification says:
6.7-inch LTPO AMOLED
The two terms describe different things.
AMOLED
Describes the display/panel architecture.
LTPO
Describes the backplane technology.
The architecture can therefore be represented as:
AMOLED
↓
LTPO Backplane
↓
Pixel Circuit
↓
OLED Emissive LayerThis is why:
LTPO ≠ OLED
and:
LTPO ≠ AMOLED
LTPO is an electronic backplane technology used to control the display.
15. Oxide TFT
IGZO is one member of the broader family of oxide semiconductor TFT technologies.
The broader category includes different oxide semiconductor compositions and manufacturing approaches.
Oxide TFTs can provide:
- low leakage
- good uniformity
- high-resolution capability
- power-efficiency advantages
They are increasingly important in:
- large displays
- laptops
- tablets
- monitors
- advanced OLED
- high-resolution applications
16. a-Si vs LTPS vs LTPO vs Oxide
The technologies can be broadly understood like this:
| Technology | Main characteristic | Major strength | Typical applications |
|---|---|---|---|
| a-Si | Amorphous silicon | Mature, scalable, economical | LCD |
| LTPS | Polycrystalline silicon | High mobility | Smartphones, high-density displays |
| Oxide / IGZO | Oxide semiconductor | Low leakage, efficiency potential | Laptops, tablets, large displays |
| LTPO | Hybrid polycrystalline + oxide approach | High performance + variable refresh potential | Premium mobile OLED |
These are broad technology-level comparisons.
Actual performance depends on:
- transistor design
- manufacturing process
- panel architecture
- drive electronics
- refresh strategy
- display size
- implementation
17. Backplane and Refresh Rate
Backplane technology can influence refresh behavior, but it does not independently determine the display’s refresh rate.
A 120Hz display requires an entire system capable of supporting that operating mode.
That includes:
- display controller
- driver IC
- backplane
- pixel circuitry
- panel
- software
- timing
The backplane is therefore one part of the chain.
A useful way to think about it is:
Refresh rate is a system capability; backplane technology helps determine how efficiently that capability can be implemented.
18. Backplane and Power Consumption
Display power consumption is influenced by many factors.
These include:
- brightness
- refresh rate
- resolution
- pixel architecture
- emissive efficiency
- backlight
- driver electronics
- content
- temperature
- software control
The backplane matters because transistor characteristics affect how efficiently pixels can be driven and how effectively their electrical state can be maintained.
This is one reason low-leakage transistor technologies are valuable.
19. Backplane and Pixel Density
Modern smartphones can contain extremely high pixel densities.
As pixel size becomes smaller, the electronics controlling each pixel also have to fit into a smaller area.
That places greater demands on:
- transistor dimensions
- mobility
- electrical uniformity
- manufacturing precision
Higher-mobility backplanes can therefore help manufacturers create compact pixel circuits.
This is particularly important for:
- high-resolution smartphones
- VR
- AR
- Micro-OLED
- professional displays
20. Backplane and OLED
The relationship between OLED and backplane technology is particularly important.
An OLED pixel emits light when current flows through its emissive structure.
The backplane contains the transistor circuitry that controls that current.
Conceptually:
Display Data
↓
Driver IC
↓
TFT Backplane
↓
Pixel Circuit
↓
OLED Current
↓
Light OutputThe quality of this electrical control affects:
- brightness uniformity
- grayscale accuracy
- refresh behavior
- power
- pixel stability
- lifetime
21. Backplane and LCD
LCD also requires a TFT backplane.
The difference is what the transistor is controlling.
In an LCD:
TFT
↓
Liquid Crystal
↓
Light TransmissionIn an OLED:
TFT
↓
OLED Pixel Current
↓
Light EmissionSo the same broad concept—TFT-based active-matrix control—can exist in both LCD and OLED while serving different pixel mechanisms.
22. Backplane and Flexible Displays
Flexible displays create another challenge.
A conventional rigid display can use rigid glass substrates.
A flexible display may use:
- flexible polymer substrates
- thin-film encapsulation
- flexible TFT structures
The backplane must therefore maintain electrical performance while being compatible with the mechanical requirements of the flexible stack.
This is one reason flexible OLED has become particularly important for foldable smartphones.
The engineering problem is no longer simply:
Can we control the pixels?
It becomes:
Can we control the pixels reliably while the display bends repeatedly?
23. Why Backplane Uniformity Matters
A display contains enormous numbers of transistors.
They cannot all behave perfectly identically.
Manufacturing variation can affect:
- brightness
- color
- pixel response
- electrical characteristics
Display manufacturers therefore need extremely high uniformity across the panel.
This contributes to the difficulty and cost of advanced display manufacturing.
A technically impressive transistor material is not enough.
It must also be manufactured consistently across large areas.
24. Manufacturing Complexity
Different backplane technologies require different manufacturing processes.
The general process involves some combination of:
- substrate preparation
- semiconductor deposition
- patterning
- transistor formation
- electrode formation
- insulation
- annealing
- pixel integration
- electrical testing
The exact process differs substantially between:
- a-Si
- LTPS
- oxide TFT
- LTPO
Manufacturing complexity affects:
- cost
- yield
- production capacity
- panel availability
- product pricing
This is one reason the display industry is heavily influenced by panel manufacturers and fabrication technology.
25. Backplane Technology Across Devices
Smartphones
Important technologies:
- LTPS
- LTPO
- OLED backplanes
Priority:
high pixel density + power efficiency + high refresh
Tablets
Common technologies include:
- a-Si
- LTPS
- oxide
- LTPO
Priority:
large area + resolution + efficiency + refresh
Laptops
Important technologies include:
- a-Si
- LTPS
- oxide
- LTPO in emerging/premium implementations
Priority:
power efficiency + resolution + brightness + battery life
Monitors
Important technologies include:
- a-Si
- oxide
- advanced LCD backplanes
- OLED-specific backplanes
Priority:
refresh + resolution + uniformity + performance
TVs
Large-area manufacturing becomes particularly important.
Backplane considerations include:
- manufacturing cost
- area
- uniformity
- resolution
- refresh
- lifetime
XR
Backplane performance becomes extremely demanding because of:
- very high pixel density
- small pixel size
- high refresh
- low latency
- optical requirements
Micro-OLED systems commonly use highly advanced backplane approaches to achieve their extreme pixel densities.
26. Why a Backplane Is a Semiconductor Story
This is one of the most important ideas for technology readers.
A display is not only an optical component.
It is also a semiconductor system.
The backplane contains:
- transistors
- conductors
- insulating layers
- semiconductor materials
- pixel circuits
That means display engineering intersects with:
semiconductor materials → transistor physics → manufacturing → power management → system electronics
This is why companies involved in displays compete not only on visual performance but also on materials science and fabrication technology.
27. The Evolution of Display Backplanes
A simplified historical progression looks like:
a-Si
↓
LTPS
↓
Oxide / IGZO
↓
LTPO and advanced hybrid architectures
↓
Future low-power / high-mobility backplanesBut this should not be interpreted as a simple replacement chain.
Older technologies remain highly competitive where their economics make sense.
The industry chooses a backplane based on:
- display size
- resolution
- performance
- power
- manufacturing cost
- yield
- application requirements
28. What Comes Next?
Future backplanes will have to solve increasingly difficult problems.
Higher pixel density
Especially for XR and near-eye displays.
Lower power
Important for mobile and battery-powered devices.
Higher refresh
Important for gaming and immersive computing.
Better flexibility
Necessary for increasingly complex foldable and rollable displays.
Better uniformity
Critical as pixels and transistors become smaller.
New semiconductor materials
Oxide and other advanced semiconductor systems could become increasingly important.
MicroLED backplanes
MicroLED introduces additional challenges because the backplane must control very small inorganic LED elements with high precision.
29. The Reader’s Mental Model
When you see:
OLED display
think:
How does it emit light?
When you see:
AMOLED
think:
How is the OLED actively addressed?
When you see:
LTPS
think:
What transistor/backplane technology is being used?
When you see:
LTPO
think:
How is the backplane enabling efficient, flexible pixel control?
When you see:
IGZO / oxide
think:
What semiconductor material is being used in the TFT backplane?
And when you see:
120Hz
think:
What refresh capability does the complete display system support?
These are different layers.
30. Where Backplane Fits in the Display Stack
The complete hierarchy now looks like this:
DISPLAY
│
├── Display Type
│
├── Panel Architecture
│
├── BACKPLANE / TFT
│ ├── a-Si
│ ├── LTPS
│ ├── Oxide
│ ├── IGZO
│ └── LTPO
│
├── Pixel / Subpixel
│
├── Emissive / Light Control
│
├── Driver Electronics
│
├── Refresh
│
├── HDR
│
├── Color
│
├── Touch
│
└── PowerThis is the level at which a display stops being simply a screen specification and becomes a technology system.
Conclusion
The backplane is the hidden semiconductor layer that makes a modern display possible.
It determines how electrical information reaches the pixels and influences the display’s ability to achieve:
- high resolution
- high refresh rates
- precise pixel control
- low power consumption
- flexible form factors
- consistent brightness
- advanced display architectures
The major technologies—a-Si, LTPS, IGZO, oxide TFT and LTPO—represent different engineering approaches to solving these problems.
The most important thing for readers to remember is:
OLED, LCD and MicroLED describe fundamental display architectures; LTPS, LTPO, IGZO and other TFT technologies describe how the display’s pixels are electrically controlled.
Understanding that distinction makes modern display specifications dramatically easier to decode.
And now we can move one layer deeper.
