iOS Operating System Architecture: A Deep Technical Guide to Darwin, XNU, Apple Silicon, Frameworks, Security and AI

Category: Mobile Operating Systems → iOS → Operating System Architecture
Content Type: Deep Knowledge / Technical Explainer
Editorial Principle: Facts → Architecture → Technical Explanation → Analysis → Future

Introduction: Understanding iOS Beyond the User Interface

The iPhone is often described primarily as a hardware product: a processor, display, camera system, battery, wireless modem and sensors wrapped inside a smartphone.

That description is incomplete.

The hardware is only one side of the platform. The other is the operating system that coordinates practically every interaction between the user, applications and the underlying silicon.

When an iPhone launches an application, displays an animation, captures a photograph, connects to Wi-Fi, authenticates a user with Face ID, encrypts data, renders a game or executes an AI model, many different layers of the platform are involved.

The visible interface is therefore only the top of a much deeper software architecture.

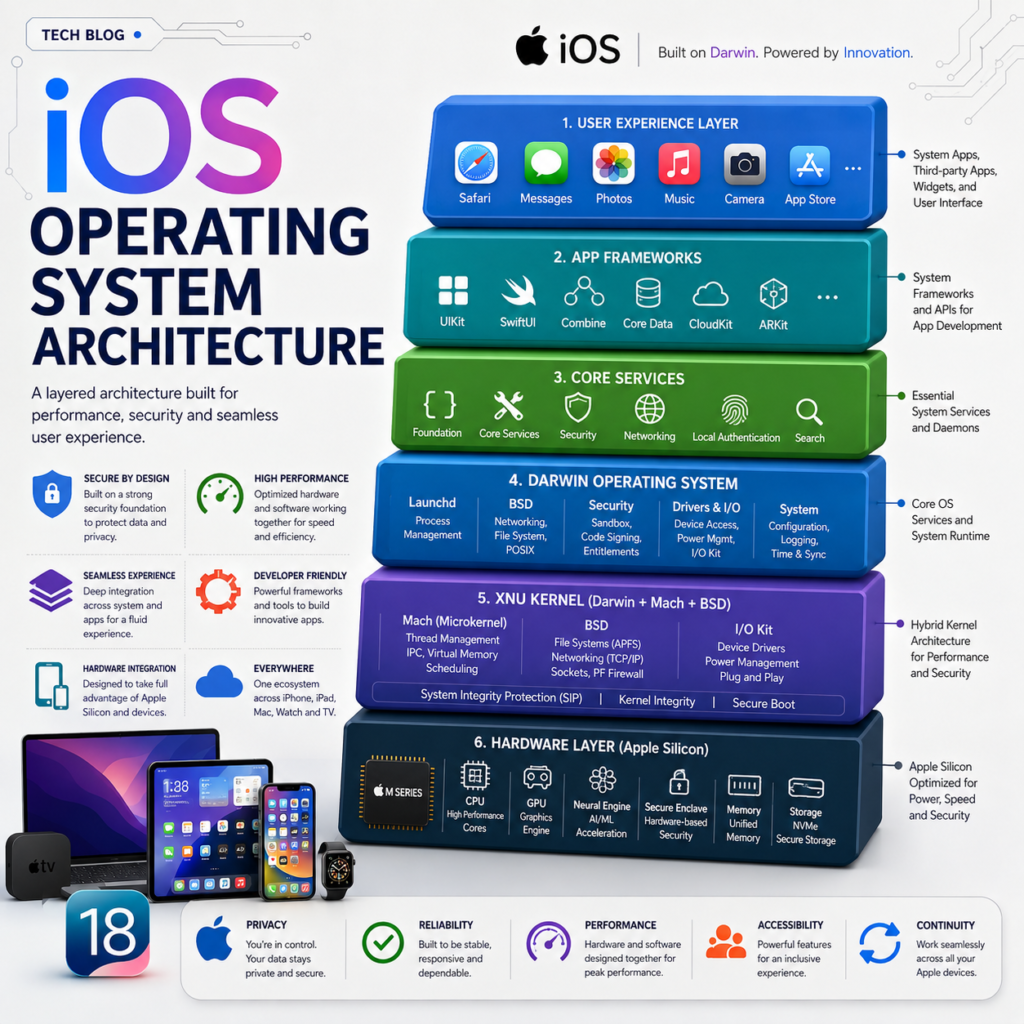

A useful conceptual model is:

                         iOS PLATFORM
                              │
        ┌─────────────────────┴─────────────────────┐
        │                                           │
   SYSTEM APPS                              THIRD-PARTY APPS
        │                                           │
        └─────────────────────┬─────────────────────┘
                              │
                     APPLICATION FRAMEWORKS
                              │
            ┌─────────────────┼─────────────────┐
            │                 │                 │
          SwiftUI            UIKit          Foundation
            │                 │                 │
            └─────────────────┼─────────────────┘
                              │
                     SYSTEM FRAMEWORKS
                              │
                     SYSTEM SERVICES
                              │
                       CORE OS / DARWIN
                              │
                            XNU
                    ┌─────────┴─────────┐
                    │                   │
                  Mach                  BSD
                    │                   │
                    └─────────┬─────────┘
                              │
                       APPLE SILICON
                              │
          ┌───────────────────┼───────────────────┐
          │                   │                   │
         CPU                 GPU           Neural Engine
          │                   │                   │
          ├───────────────────┼───────────────────┤
          │                   │                   │
         ISP             Media Engines      Secure Enclave
          │                   │                   │
          └───────────────────┼───────────────────┘
                              │
                    MEMORY / STORAGE / I/O
                              │
                   CAMERAS / SENSORS / DISPLAY

This is a conceptual architecture, not a literal Apple process map.

The central principle is layering.

Applications should not need to understand how an individual camera sensor communicates with an image-processing engine. A user interface should not need to know how physical memory is managed. A developer using a machine-learning framework should not have to program the Neural Engine directly.

Each layer abstracts complexity from the layer above.

That abstraction is one of the fundamental reasons a sophisticated platform such as iOS can remain usable to both developers and consumers.

1. What Exactly Is iOS?

iOS is Apple’s operating system for the iPhone.

However, understanding iOS in isolation can be misleading because Apple develops a broader family of operating systems and frameworks:

Apple Platform	Primary Device Class
iOS	iPhone
iPadOS	iPad
macOS	Mac
watchOS	Apple Watch
tvOS	Apple TV
visionOS	Apple Vision Pro

These platforms are not identical, but they share significant technologies, programming frameworks and architectural principles.

Apple’s current developer ecosystem is increasingly designed around reusable technologies such as SwiftUI, Foundation, Metal and AI frameworks that can operate across multiple Apple platforms. Apple’s 2026 documentation also describes Core AI as designed to operate across Apple platforms using Apple silicon.

This gives Apple a broader platform strategy:

one family of technologies → multiple device categories → device-specific experiences.

2. Darwin: The Foundation Beneath iOS

One of the most important terms in understanding Apple’s operating-system architecture is Darwin.

Darwin forms the open-source foundation associated with Apple’s operating systems. It includes technologies derived from:

Mach;
BSD;
networking;
filesystem infrastructure;
kernel services;
device and I/O mechanisms.

The iOS operating system itself is proprietary, but Darwin provides an important underlying foundation.

At the center of that foundation is XNU.

3. XNU: Apple’s Kernel Foundation

XNU is the kernel architecture used in Apple’s operating-system family.

The name is traditionally expanded as “X is Not Unix.”

Its architecture incorporates technologies from Mach and BSD together with Apple-specific kernel components.

XNU provides the low-level mechanisms required for an operating system to manage:

CPU execution;
threads;
processes;
memory;
filesystems;
networking;
inter-process communication;
hardware access;
security-related controls.

Applications never operate directly at this level under normal circumstances.

Instead, higher-level system frameworks mediate access.

4. Mach: Tasks, Threads and Virtual Memory

Mach contributes important kernel concepts to XNU.

Among them are:

tasks;
threads;
virtual memory;
inter-process communication mechanisms.

A task can be thought of as a protected execution environment containing resources and an address space.

A thread is an execution path within that environment.

This distinction becomes important because modern applications are highly concurrent.

A single application may have:

a main UI thread;
networking work;
database operations;
media processing;
background computation;
asynchronous tasks.

The kernel must schedule these workloads across available CPU resources.

5. BSD Contributions

The BSD side of XNU contributes substantial UNIX-derived functionality.

This includes areas such as:

networking;
sockets;
filesystem interfaces;
process management;
POSIX-oriented APIs;
system utilities.

The result is not simply “Mach plus BSD.”

Apple integrates these technologies into its own kernel architecture.

The important point for understanding iOS is that the operating system inherits a substantial amount of mature UNIX-derived infrastructure while adding Apple’s own platform technologies above and around it.

6. What the Kernel Actually Does

The kernel is fundamentally a resource manager.

Consider the following situation:

A user opens a camera application.

The application needs:

CPU time;
memory;
camera hardware;
image processing;
display output;
storage;
possibly GPU acceleration.

The kernel and associated system components help establish the controlled environment in which these resources are accessed.

The operating-system model can therefore be simplified as:

Application Request
↓
Framework / System API
↓
System Service
↓
Kernel / Driver / Hardware Interface
↓
Hardware

The application is deliberately kept away from direct hardware control.

7. Apple Silicon and iOS

Modern iOS architecture cannot be understood without understanding Apple’s custom silicon.

An Apple mobile SoC integrates several specialized processing components.

A simplified representation is:

Processing Component	Primary Role
CPU	General-purpose computation
GPU	Graphics and parallel computation
Neural Engine	Machine-learning acceleration
ISP	Image processing
Media engines	Video/audio processing
Secure Enclave	Security-sensitive computation
Memory subsystem	High-bandwidth data movement
I/O controllers	Communication with peripherals

The exact architecture differs between Apple chip generations.

The key architectural principle remains the same:

Apple controls both the operating system and the major silicon architecture underneath it.

This creates a very different design environment from a platform that must support hundreds of unrelated chipsets.

8. CPU Architecture

The CPU performs general-purpose work.

That includes:

operating-system operations;
application logic;
system services;
networking;
user-interface logic;
file operations;
background tasks;
portions of AI workloads.

Modern Apple silicon uses different classes of CPU cores to balance performance and efficiency.

The operating system scheduler determines how software threads should be executed.

This produces the fundamental mobile-computing optimization:

Performance when needed + efficiency when possible.

The operating system therefore cannot simply maximize CPU frequency.

It must optimize the entire device.

9. GPU Architecture

The GPU handles highly parallel workloads.

Its most visible role is graphics rendering.

That includes:

interface animation;
games;
3D graphics;
visual effects;
image processing;
computational workloads.

Apple exposes GPU functionality through Metal.

A simplified path is:

Application
      ↓
Metal
      ↓
Graphics / Compute Runtime
      ↓
Apple GPU
      ↓
Display / Computation

This abstraction enables developers to exploit GPU capabilities without directly programming the underlying silicon.

10. Neural Engine

The Neural Engine is Apple’s dedicated machine-learning accelerator.

It is designed to execute certain neural-network operations efficiently.

A modern AI workload may therefore be distributed across:

                    AI Workload
                         │
            ┌────────────┼────────────┐
            │            │            │
           CPU          GPU     Neural Engine

The optimal execution path depends on the model, operators, memory requirements, framework and hardware generation.

This is an important distinction:

The Neural Engine does not replace the CPU or GPU. It expands the set of specialized computing resources available to the operating system and applications.

11. The ISP and Computational Photography

The Image Signal Processor, or ISP, is another example of specialized hardware.

A modern iPhone photograph can involve far more than the camera sensor.

A conceptual pipeline looks like:

Camera Sensor
      ↓
     ISP
      ↓
Image Processing
      ↓
CPU / GPU / Neural Engine
      ↓
Computational Photography
      ↓
Processed Image
      ↓
Display / Storage

This is why camera quality cannot be predicted from megapixel count alone.

The operating system, image-processing algorithms and silicon all contribute to the final result.

12. Secure Hardware

Apple also integrates dedicated security technologies into its silicon.

Apple’s current Platform Security documentation describes security capabilities built into Apple silicon, including Boot ROM, cryptographic engines and the Secure Enclave.

This creates an important architectural relationship:

Apple Silicon
      │
      ├── CPU
      ├── GPU
      ├── Neural Engine
      ├── ISP
      ├── Media Engines
      └── Security Hardware
              │
              └── Secure Enclave

Security is therefore not merely software installed above the hardware.

It is embedded into the platform from the silicon level upward.

13. Core OS

Above the kernel and low-level hardware infrastructure is a group of foundational technologies commonly associated with Core OS.

These provide lower-level services used by higher layers.

Depending on the subsystem, this includes functionality associated with:

networking;
storage;
security;
power management;
low-level system services;
hardware interaction.

It is better to understand Core OS as a collection of foundational platform technologies rather than as one single executable layer.

14. System Services

Applications do not normally communicate directly with hardware.

Instead, iOS provides system services that mediate access to operating-system functionality.

Examples of system-level responsibilities include:

application management;
networking;
notifications;
location;
media;
graphics;
storage;
security;
power;
sensors.

Conceptually:

Application
     ↓
Framework API
     ↓
System Service
     ↓
Lower-Level System Component
     ↓
Hardware

This design improves modularity and security.

15. Frameworks: The Developer’s View of iOS

If the kernel is the foundation of the operating system, frameworks are the primary interface through which developers interact with it.

Apple provides a very large collection of frameworks.

Some important examples include:

Framework / Technology	Major Role
Foundation	Core programming and system abstractions
UIKit	Event-driven iOS UI
SwiftUI	Declarative UI
Metal	Graphics and GPU compute
AVFoundation	Audio/video/media
Core Graphics	2D graphics
Core Animation	Animation and compositing
Core Location	Location services
Core Bluetooth	Bluetooth
Core ML	Machine learning
Vision	Computer vision
ARKit	Augmented reality
RealityKit	3D/spatial experiences
CloudKit	Cloud-backed application data
StoreKit	Commerce and subscriptions
App Intents	System-level application actions
Core AI	On-device AI models

This is where iOS becomes a platform for application developers rather than merely a kernel.

16. Foundation

Foundation provides fundamental programming abstractions used across Apple’s ecosystem.

It covers areas such as:

strings;
dates;
URLs;
data;
collections;
serialization;
persistence-related functionality;
networking abstractions;
concurrency-related APIs.

It is effectively one of the common building blocks beneath higher-level Apple application frameworks.

17. UIKit

UIKit remains a fundamental iOS framework.

Apple describes UIKit as providing the infrastructure for graphical, event-driven interfaces, including windows, views, input handling and the main run loop. It also supports animations, drawing, documents, accessibility and application extensions.

A simplified UIKit architecture is:

UIKit
│
├── Windows
├── Views
├── View Controllers
├── Events
├── Touch / Input
├── Animation
├── Accessibility
├── Documents
└── Application Lifecycle

UIKit is therefore much more than a collection of buttons and screens.

It provides much of the application-facing infrastructure required to build a native iOS application.

18. SwiftUI

SwiftUI represents Apple’s declarative approach to user-interface development.

Instead of manually instructing the system about every UI mutation, developers describe the desired interface based on application state.

Conceptually:

Application State
       ↓
     SwiftUI
       ↓
 View Description
       ↓
Rendering System
       ↓
     GPU
       ↓
    Display

SwiftUI is designed to work across Apple’s platforms and can coexist with UIKit. Apple’s documentation explicitly describes integration between the two.

This is important because modern iOS development is not an either/or choice between UIKit and SwiftUI.

Many real applications use both.

19. UIKit and SwiftUI Compared

Characteristic	UIKit	SwiftUI
Programming model	Imperative/event-driven	Declarative
History	Mature iOS framework	Newer Apple UI framework
UI control	Very granular	State-driven abstraction
Existing app ecosystem	Extremely large	Rapidly expanding
Cross-platform design	Primarily Apple UI platforms	Designed broadly across Apple platforms
Interoperability	Can host SwiftUI	Can incorporate UIKit
Best conceptual use	Detailed UIKit architecture	Modern declarative interfaces

The two frameworks should be considered complementary technologies.

20. Application Execution

An iOS application is not simply an executable that receives unrestricted access to the device.

The operating system controls its:

execution;
resources;
permissions;
storage;
lifecycle;
background behavior;
access to system services.

This produces a controlled application environment.

A simplified model is:

App Installation
      ↓
Code Signature Verification
      ↓
Sandboxed Application
      ↓
Framework Access
      ↓
System Services
      ↓
Authorized Resources

21. iOS Application Lifecycle

Applications move through operating-system-managed states.

A simplified lifecycle is:

Launch
  ↓
Active
  ↓
Inactive
  ↓
Background
  ↓
Suspended
  ↓
Terminated

The precise lifecycle depends on the application’s behavior and the current operating-system state.

The fundamental principle is that iOS does not give every application unlimited background execution.

This is necessary because smartphones have constrained:

battery;
RAM;
CPU;
thermal capacity.

22. Why Background Restrictions Matter

Suppose 100 applications could continuously execute at maximum performance in the background.

The consequences would include:

increased battery consumption;
memory pressure;
reduced responsiveness;
thermal buildup;
unnecessary network traffic.

iOS therefore uses controlled execution models.

Applications can request system-supported background capabilities where appropriate, but they do not receive unrestricted background execution simply because they are installed.

23. App Extensions and System Integration

Modern iOS applications can extend certain system experiences without taking over the operating system.

Examples include:

widgets;
share extensions;
action extensions;
notification-related extensions;
keyboard extensions;
App Intents.

This architecture lets applications contribute functionality to the system while retaining security boundaries.

It is an important step toward a more integrated application ecosystem.

24. App Intents and the Future of Application Architecture

App Intents are particularly significant because they expose application capabilities to system experiences.

The traditional relationship is:

User
 ↓
Open App
 ↓
Perform Task

A more integrated model is:

User Intent
      ↓
System
      ↓
App Intent
      ↓
Application Capability
      ↓
Result

This architecture becomes increasingly important as AI assistants begin to execute multi-step tasks.

Architectural Summary

The foundation of iOS can now be summarized as:

                         iOS
                          │
                   Applications
                          │
              ┌───────────┴───────────┐
              │                       │
            SwiftUI                 UIKit
              │                       │
              └───────────┬───────────┘
                          │
                     Foundation
                          │
                  System Frameworks
                          │
                   System Services
                          │
                     Core OS
                          │
                         XNU
                  ┌───────┴───────┐
                  │               │
                Mach             BSD
                  │               │
                  └───────┬───────┘
                          │
                    Apple Silicon
                          │
        ┌─────────────────┼─────────────────┐
        CPU               GPU          Neural Engine
        │                  │                 │
        ISP           Media Engines    Secure Enclave
        └─────────────────┼─────────────────┘
                          │
                    Device Hardware

This architecture explains how iOS transforms a collection of highly specialized hardware into a coherent application platform.

But this is only half the story.

The other half is security.

And Apple’s security architecture is unusually deeply integrated into the hardware and software stack.

26. iOS Security Begins Before iOS Starts

A major mistake in discussing smartphone security is to start with the application.

On iOS, the security chain begins much earlier.

Apple’s iPhone and iPad boot architecture starts with immutable Boot ROM code built into the chip. Apple describes this Boot ROM as the hardware root of trust; it verifies the Apple-signed iBoot bootloader before allowing it to execute, after which subsequent components are verified through the chain.

The simplified chain is:

Hardware
   ↓
Boot ROM
   ↓
iBoot
   ↓
Kernel
   ↓
System Software
   ↓
Applications

Each stage establishes trust in the next.

27. Secure Boot

Secure Boot protects the lowest layers of the software stack against unauthorized modification.

Apple explains that components such as bootloaders, the kernel, kernel extensions and baseband firmware are cryptographically signed and verified during startup.

This means an attacker cannot simply replace a critical operating-system component with arbitrary software and expect the device to execute it normally.

The architecture creates a chain of trust.

28. Why Secure Boot Matters

Imagine an attacker modifies the operating system before it starts.

Traditional application-level security might never detect the modification because the malicious software would already be operating below the application layer.

Secure Boot moves the security boundary downward:

Application Security
       ↓
OS Security
       ↓
Kernel Security
       ↓
Boot Security
       ↓
Hardware Root of Trust

This is a fundamentally different security philosophy from protecting only applications.

29. Secure Enclave

The Secure Enclave is another major component.

Apple describes it as a dedicated security subsystem integrated into its SoCs and isolated from the main processor. It is designed to protect sensitive information even if the main application-processor kernel is compromised.

The Secure Enclave has its own security architecture, including:

Boot ROM;
dedicated processing;
protected memory mechanisms;
cryptographic capabilities;
secure boot.

This gives iOS an additional security domain separate from the main application processor.

30. Graphics Architecture

Graphics are handled through several layers.

A simplified representation is:

SwiftUI / UIKit
       ↓
Graphics Frameworks
       ↓
Core Animation / Rendering
       ↓
Metal
       ↓
Apple GPU
       ↓
Display Hardware

Applications can use Apple’s graphics APIs rather than directly manipulating the GPU.

31. Metal

Metal provides Apple’s low-level graphics and compute interface.

It is designed to expose modern GPU capabilities efficiently.

This is particularly important for:

games;
3D graphics;
image processing;
machine learning;
computational workloads.

The architecture therefore combines high-level frameworks with relatively low-level GPU access where performance demands it.

32. Core Animation

Core Animation manages much of the animation and compositing infrastructure used by Apple’s UI technologies.

It helps coordinate:

layers;
transitions;
animations;
visual effects.

This allows applications to produce sophisticated interfaces while the underlying system handles much of the rendering coordination.

33. Media Architecture

Apple’s media frameworks provide access to:

audio;
video;
cameras;
playback;
recording;
codecs.

AVFoundation is a major framework in this area.

A simplified camera path might look like:

Camera App
     ↓
AVFoundation
     ↓
System Camera Services
     ↓
Camera Driver / I/O
     ↓
ISP
     ↓
Camera Sensor

The actual implementation is considerably more complex.

34. Core Location and Sensors

Applications can request location and sensor information through system frameworks.

The operating system mediates access to:

GPS/GNSS;
Wi-Fi positioning;
cellular information;
accelerometers;
gyroscopes;
compass;
other sensors.

This provides a consistent programming interface while preserving security and power-management controls.

35. Networking

iOS provides system frameworks for:

Wi-Fi;
cellular connectivity;
Bluetooth;
networking;
VPN;
local communication.

Applications generally operate through system APIs rather than directly controlling the modem or network hardware.

Again, abstraction separates application logic from hardware implementation.

36. Core ML

Machine learning has become a major part of Apple’s software architecture.

Core ML provides APIs for integrating machine-learning models into applications.

It can work with Apple’s hardware acceleration capabilities.

A simplified model is:

Application
      ↓
Core ML
      ↓
ML Runtime
      ↓
CPU / GPU / Neural Engine
      ↓
Inference

The system determines the appropriate hardware path based on the workload and supported capabilities.

37. Vision and On-Device Intelligence

Apple’s Vision framework provides higher-level computer-vision capabilities.

Possible workloads include:

image recognition;
object detection;
text recognition;
face-related analysis;
image understanding.

These technologies increasingly connect software frameworks with specialized silicon.

38. Apple Intelligence

Apple’s broader AI strategy has increasingly moved intelligence into the operating-system experience.

This can affect:

writing assistance;
image generation;
language understanding;
notification handling;
system actions;
application integration.

The architectural significance is greater than any individual AI feature.

AI increasingly becomes a platform capability.

39. Core AI and the New AI Architecture

Apple’s 2026 developer documentation introduces Core AI, described as a framework built directly into the OS and designed for on-device models running on Apple silicon. Apple says it provides Swift APIs, hardware specialization, ahead-of-time compilation and memory-management capabilities for local inference.

This is an important development.

The emerging architecture can be represented as:

AI Application
      ↓
Core AI / AI Frameworks
      ↓
Apple ML Runtime
      ↓
┌─────┼─────────┐
│     │         │
CPU  GPU   Neural Engine
      │
      ▼
Apple Silicon

The key architectural direction is local intelligence.

40. On-Device AI

On-device AI offers several potential advantages:

lower latency;
reduced network dependency;
offline processing;
improved responsiveness;
greater control over sensitive data.

But local AI also consumes:

memory;
compute;
energy;
thermal capacity.

The operating system therefore has to treat AI as another resource-management problem.

41. AI and Privacy

AI makes privacy architecture more important.

An intelligent assistant may need access to:

messages;
calendar;
photos;
contacts;
notifications;
applications;
location;
personal context.

The operating system therefore needs to control what AI systems can access and what actions they can perform.

The future architecture is likely to increasingly combine:

AI capability + permissions + sandboxing + hardware security + local processing

42. AI Agents and the Application Model

Traditional iOS interaction is:

User
 ↓
Application
 ↓
Task

The emerging model could become:

User Intent
     ↓
AI System
     ↓
Application APIs
     ↓
System Services
     ↓
Task

This creates a fundamental architectural question:

Should the user continue to operate individual applications manually, or increasingly express intent to the operating system?

If the latter becomes widespread, iOS will evolve from an application launcher into an intent-orchestration platform.

43. App Intents and System Integration

Apple’s App Intents framework is important in this direction because it allows applications to expose actions and capabilities to system experiences.

That creates a bridge between:

Application functionality

and

system-level intelligence

This architecture is particularly relevant to Apple’s emerging AI and automation strategy.

44. Apple Ecosystem Architecture

iOS does not exist alone.

Apple’s broader platform includes:

                 APPLE ECOSYSTEM
                       │
       ┌───────────────┼───────────────┐
       │               │               │
      iOS           iPadOS          macOS
       │               │               │
    watchOS          tvOS          visionOS
       │               │               │
       └───────────────┼───────────────┘
                       │
                 Shared Frameworks
                       │
                 Apple Services
                       │
                  Apple Silicon

This creates significant opportunities for continuity.

A user can move between devices while maintaining:

identity;
applications;
files;
messages;
media;
authentication;
workflows.

45. iOS and iPadOS

iPadOS shares substantial technology with iOS but adapts it for:

larger displays;
multitasking;
external displays;
keyboard and pointer input;
more complex application layouts.

This demonstrates Apple’s platform strategy:

shared foundation + device-specific experience.

46. watchOS

watchOS applies Apple’s platform principles to wearable computing.

The priorities become:

energy efficiency;
sensor integration;
compact interfaces;
health-related workloads;
rapid interactions.

The underlying Apple architecture remains related to the broader platform.

47. visionOS

visionOS extends Apple’s architecture into spatial computing.

It introduces requirements involving:

spatial interfaces;
cameras;
sensors;
3D rendering;
spatial audio;
eye tracking;
hand tracking.

The underlying platform therefore has to coordinate substantially different interaction models.

48. The Apple Vertical-Integration Model

One of the most important differences between iOS and Android is vertical integration.

A simplified comparison:

Layer	iOS	Android
Core OS	Apple-controlled	AOSP + vendor ecosystem
Kernel foundation	XNU	Linux / Android Common Kernel
SoC	Apple-designed	Multiple vendors
UI	Apple-controlled	OEM-customizable
App distribution	Apple-controlled framework, with regional variations	More open distribution model
Hardware diversity	Relatively narrow	Extremely broad
Security integration	Hardware/software tightly integrated	Multi-vendor implementation
AI silicon	Apple Neural Engine and other accelerators	Multiple NPU/AI architectures
OEM customization	Minimal	Extensive

The comparison is architectural rather than a quality ranking.

Both models solve different problems.

49. Apple’s Major Architectural Advantage

Apple’s control over:

silicon + operating system + frameworks + applications + services

allows the company to optimize vertically.

For example, Apple can design:

a CPU;
GPU;
Neural Engine;
Secure Enclave;

and then design iOS frameworks to take advantage of those components.

This creates a feedback loop:

Apple Silicon
      ↓
Operating System
      ↓
Frameworks
      ↓
Applications
      ↓
User Experience
      ↓
Future Silicon

The hardware and software can evolve together.

50. Apple’s Major Architectural Trade-Off

Vertical integration also means less hardware and software freedom for users and manufacturers.

Unlike Android’s broad multi-vendor ecosystem, Apple controls:

hardware;
OS distribution;
system frameworks;
App Store infrastructure;
many core services.

This can produce strong consistency.

But it also creates tighter platform control.

That is an architectural trade-off rather than simply an advantage or disadvantage.

51. The Complete iOS Architecture

We can now combine the major components:

                         iOS ECOSYSTEM
                              │
             ┌────────────────┴────────────────┐
             │                                 │
       SYSTEM APPS                         THIRD-PARTY APPS
             │                                 │
             └────────────────┬────────────────┘
                              │
                    APP FRAMEWORKS
                              │
        ┌─────────────────────┼─────────────────────┐
        │                     │                     │
      SwiftUI               UIKit              Foundation
        │                     │                     │
        └─────────────────────┼─────────────────────┘
                              │
                   SYSTEM FRAMEWORKS
                              │
       ┌──────────────────────┼──────────────────────┐
       │                      │                      │
     Graphics               Media                   AI
     Metal              AVFoundation          Core ML / Core AI
       │                      │                      │
       └──────────────────────┼──────────────────────┘
                              │
                    SYSTEM SERVICES
                              │
                       CORE OS / DARWIN
                              │
                            XNU
                     ┌────────┴────────┐
                     │                 │
                   Mach               BSD
                     │                 │
                     └────────┬────────┘
                              │
                       APPLE HARDWARE
                              │
        ┌─────────────────────┼─────────────────────┐
        │                     │                     │
       CPU                   GPU             Neural Engine
        │                     │                     │
        ├────────────── Apple Silicon ──────────────┤
        │                     │                     │
       ISP              Secure Enclave        Media Engines
        │                     │                     │
        └─────────────────────┼─────────────────────┘
                              │
                        Memory / Storage
                              │
                       Cameras / Sensors
                              │
                           Display

Security surrounds the architecture:

SECURITY
│
├── Secure Boot
├── Code Signing
├── App Sandbox
├── Entitlements
├── ASLR
├── Execute Never
├── Data Protection
├── Secure Enclave
├── Encryption
└── Runtime Security

And AI increasingly crosses multiple layers:

AI
│
├── Apple Intelligence
├── Core AI
├── Core ML
├── Vision
├── App Intents
├── Neural Engine
├── GPU
├── CPU
└── On-Device Inference

Digital Plaza Analysis

The most important thing to understand about iOS is that Apple controls the vertical stack far more tightly than most competing mobile platforms.

At the hardware level, Apple designs its own SoCs.

At the kernel level, Apple controls XNU and the Darwin foundation.

At the framework level, Apple controls APIs such as UIKit, SwiftUI, Foundation, Metal and Core ML.

At the security level, Apple controls the boot chain, code-signing model and hardware security architecture.

At the application level, Apple controls major distribution infrastructure through the App Store, while regulatory requirements have created regional variations.

And at the AI level, Apple is increasingly integrating machine intelligence into the operating system and its silicon.

This creates an unusually coherent architecture.

The simplified model is:

Apple Silicon → Darwin/XNU → Core OS → System Services → Frameworks → Applications

with security embedded throughout.

The Most Important Architectural Principle: Vertical Integration

The defining characteristic of iOS is not simply its interface.

It is vertical integration.

Apple controls the major layers:

Silicon
   ↓
Firmware
   ↓
Kernel
   ↓
Operating System
   ↓
Frameworks
   ↓
Applications
   ↓
Services

This allows Apple to optimize across boundaries that are controlled by different companies in many other ecosystems.

For example, Apple can coordinate:

Neural Engine + Core ML + iOS + application APIs

instead of depending entirely on unrelated hardware and software vendors.

That becomes increasingly important as AI workloads grow.

iOS Security Is Also a Vertical Architecture

Apple’s security model follows the same philosophy.

Security starts in hardware.

The Boot ROM establishes the root of trust.

The boot chain verifies subsequent software.

The kernel controls execution.

Code signing establishes application authenticity.

The sandbox isolates applications.

Entitlements control privileged capabilities.

The Secure Enclave protects highly sensitive operations.

Data Protection protects stored information.

Apple’s security documentation explicitly describes this as a layered architecture spanning hardware, system security, encryption and app security.

The result is not one security feature.

It is a chain of mutually reinforcing controls.

What iOS Architecture Means for Consumers

The architecture has practical consequences.

When evaluating an iPhone, consumers should look beyond:

CPU performance;
camera megapixels;
display resolution;
battery capacity.

They should also consider:

Software longevity

How long will the device receive OS and security updates?

Silicon integration

How well are CPU, GPU, Neural Engine and ISP integrated?

AI capability

How much on-device intelligence can the hardware support?

Privacy

How much processing can occur locally?

Security

How strong are the hardware and software security boundaries?

Ecosystem integration

How effectively does the device communicate with Macs, iPads, Apple Watch and other Apple products?

The operating system is a major part of the product.

What to Watch Next

Several developments will define the next phase of iOS architecture.

1. Core AI

Apple’s introduction of Core AI points toward increasingly direct integration of on-device AI into the operating-system and developer stack.

2. AI Agents

The interaction model may gradually move from application-centric computing toward intent-centric computing.

3. Apple Silicon

Future generations of Apple silicon will likely continue increasing specialized acceleration for AI, graphics and media.

4. Memory Architecture

AI workloads make memory capacity and bandwidth increasingly important.

5. Privacy-Preserving AI

Apple’s challenge will be balancing useful AI context with strict privacy boundaries.

6. Cross-Platform Frameworks

SwiftUI and related technologies will continue pushing Apple’s platforms toward greater software reuse.

7. Spatial Computing

Technologies developed for visionOS may influence future interaction models across Apple’s ecosystem.

8. Security Evolution

As AI becomes more powerful and applications gain more system integration, code signing, sandboxing, entitlements and hardware security will become even more important.

Conclusion

iOS is one of the most tightly integrated operating-system architectures in consumer computing.

Its foundation begins with Darwin and XNU, combining Mach- and BSD-derived technologies with Apple’s own kernel and platform components.

Above that foundation, Apple’s system frameworks provide developers with APIs for:

graphics;
media;
networking;
location;
storage;
UI;
machine learning;
system integration.

UIKit and SwiftUI provide major application-development models.

Metal connects applications to Apple’s GPU architecture.

Core ML and the newer Core AI direction connect software to Apple’s machine-learning hardware.

At the security level, Apple builds a chain beginning with hardware-rooted secure boot and extending through code signing, sandboxing, entitlements, encryption, Data Protection and the Secure Enclave.

The architecture can ultimately be summarized as:

Apple Silicon → Darwin/XNU → Core OS → System Services → Frameworks → Applications

surrounded by:

Hardware-rooted security

and increasingly extended by:

On-device AI and intelligent system services.

The most significant future change may be the transition from an application-centric operating system to an intelligence-centric operating system.

Instead of users always navigating from application to application, increasingly capable system intelligence could understand intent, access authorized application capabilities and coordinate actions.

That would make the operating system itself the primary interface between the user and the computing environment.

And that is why understanding iOS architecture matters.

The iPhone is not simply hardware running an interface. It is the visible endpoint of a deeply integrated architecture spanning silicon, kernel, frameworks, security, applications and increasingly artificial intelligence.

Sources

This article is based primarily on Apple’s current platform-security and developer documentation, including Apple’s March 2026 Apple Platform Security reference and current 2026 iOS developer materials.
