Motherboard Architecture & Components Explained: PCB, CPU Socket, VRM, Chipset, Memory, PCIe, Storage, I/O, Firmware and System Connectivity

Meta Description

Explore motherboard architecture and components, including PCBs, CPU sockets, VRMs, power stages, chipsets, memory slots, PCIe, GPU connectivity, M.2, SATA, USB, networking, audio, BIOS, UEFI, firmware, sensors and cooling. Understand how motherboards connect, power and coordinate CPUs, GPUs, memory, storage and peripherals across desktop, laptop, server and smartphone platforms.

In One Sentence

A motherboard is the primary system-level circuit board that integrates and connects the processor, memory, expansion devices, storage, power-delivery systems, firmware, networking, audio and external interfaces into one coordinated computing platform.

Introduction: The Motherboard Is the Platform Behind the Platform

A processor may be the computational engine of a computer, but the processor cannot operate as a complete system by itself. It needs memory, power, storage, input/output interfaces, firmware, cooling, expansion connectivity and communication pathways. The motherboard provides the physical and electrical infrastructure that allows these technologies to work together.

A modern motherboard is therefore much more than a large PCB containing sockets and connectors. It is a carefully engineered high-speed electrical system.

It must simultaneously handle:

high-current power delivery
high-speed digital signals
memory communication
PCI Express traffic
USB and other external interfaces
storage connectivity
networking
audio
firmware
thermal monitoring
system management
expansion

The motherboard also determines many aspects of a system’s compatibility, upgradeability, connectivity, power capability and physical configuration.

The fundamental concept is:

The motherboard is the infrastructure that turns individual computing components into a functioning computer system.

1. What Is a Motherboard?

A motherboard is the primary printed circuit board (PCB) in a computing system that provides electrical connections, physical mounting locations, power distribution and communication pathways for the system’s major components.

Depending on the type of device, it may also be called:

mainboard
system board
logic board
planar board

Desktop PCs traditionally expose many replaceable components through sockets and slots. Laptops integrate more components directly onto the board to save space. Smartphones typically use highly integrated logic boards with much greater component density.

Despite these differences, the underlying purpose remains similar:

Connect, power, control and coordinate the system’s components.

2. What Is Motherboard Architecture?

Motherboard architecture is the organization of the electrical, physical and logical subsystems that allow a computer’s processor, memory, storage, peripherals and other components to communicate and operate together.

Architecture determines:

which components connect directly to the CPU
which devices communicate through a chipset or controller
how power reaches each component
how high-speed signals are routed
which expansion interfaces are available
how firmware initializes hardware
how external devices communicate with the system

A motherboard therefore represents several architectures simultaneously:

Electrical architecture

How power and signals physically travel.

Logical architecture

How components communicate.

Mechanical architecture

How components are physically positioned and mounted.

Firmware architecture

How the board initializes and manages hardware.

Thermal architecture

How heat-producing components are cooled.

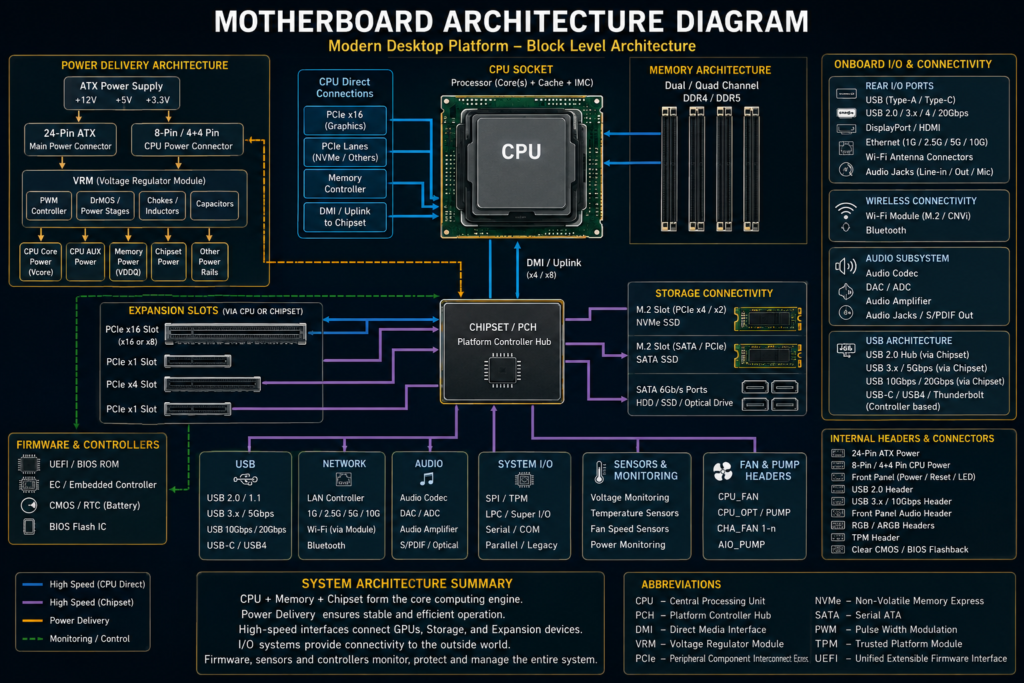

3. Motherboard Block Diagram

A simplified modern desktop motherboard can be understood through the following architecture:

CPU

↓ ↑

Memory

↓ ↑

PCIe Devices

↓ ↑

Chipset / Platform Controller

↓ ↑

Storage | USB | Networking | Audio | Expansion

At the same time:

Power Supply → Motherboard Power Delivery → VRMs → CPU / Memory / Chipset / Other Components

And:

BIOS/UEFI → CPU + Memory + Devices + Firmware Controllers

This simplified model hides enormous electrical complexity, but it provides the correct conceptual starting point.

4. PCB : Printed Circuit Board

The Printed Circuit Board (PCB) is the physical foundation of the motherboard.

It contains:

conductive copper layers
dielectric insulating materials
vias
pads
traces
component mounting structures
power planes
signal-routing structures

Components are mounted onto the PCB using technologies such as surface-mount technology.

The PCB does not merely provide mechanical support. It acts as the system’s electrical communication infrastructure.

Every high-speed signal and power rail must be routed through a carefully designed PCB structure.

5. PCB Layers & Routing

Modern motherboards use multilayer PCBs because a single conductive layer cannot provide sufficient routing capacity, signal integrity or power distribution.

A PCB can contain multiple:

signal layers
ground planes
power planes

The exact layer count varies according to motherboard complexity and cost.

High-end boards may require significantly more layers to accommodate dense routing and demanding high-speed interfaces.

Why more layers matter

Additional layers can provide:

shorter routing paths
better grounding
controlled impedance
improved power distribution
reduced electromagnetic interference
greater routing density

For high-speed interfaces such as PCIe and DDR memory, PCB design becomes an important engineering constraint.

6. CPU Socket

The CPU socket is the mechanical and electrical interface between the processor and motherboard.

It must provide:

physical retention
electrical contacts
power connections
signal connections
mechanical alignment

Desktop processors generally use replaceable socketed designs.

The socket determines processor compatibility.

A processor cannot simply be installed into any motherboard because the socket must match the processor’s physical and electrical requirements.

7. CPU Power Delivery

Modern processors can consume substantial electrical power, particularly during high-performance workloads.

The motherboard therefore converts and regulates power supplied by the system power supply.

A simplified path is:

Power Supply → Motherboard Power Input → VRM → CPU

The CPU requires relatively low operating voltages compared with the voltage supplied by a typical desktop power supply.

The motherboard’s voltage-regulation system therefore performs a critical conversion and regulation function.

8. VRM : Voltage Regulator Module

A Voltage Regulator Module (VRM) converts an input power rail into the regulated voltage required by the CPU or another component.

A CPU VRM typically contains:

power stages
inductors/chokes
capacitors
PWM controller
drivers or integrated power-stage components

The VRM must respond rapidly to changing processor loads.

When a CPU suddenly increases its workload, current demand can change very quickly.

The VRM must therefore maintain voltage stability while controlling:

efficiency
heat
transient response
ripple
electrical noise

9. MOSFETs, DrMOS & Power Stages

The switching elements inside modern VRMs are based on semiconductor power devices.

Traditional designs may separate:

high-side MOSFET
low-side MOSFET
driver

Integrated solutions can combine several functions.

DrMOS is a common integrated power-stage approach that combines driver and MOSFET functionality.

Modern power stages may integrate even more functions and offer increasingly high current ratings.

However, a high advertised current rating alone does not determine VRM quality.

Thermal design, control implementation, PCB design and sustained operating conditions matter as well.

10. VRM Phases & Power Stages

Motherboards frequently advertise VRM phase counts.

A multiphase power system distributes load across multiple power stages.

Potential advantages include:

lower current per phase
improved thermal distribution
better transient behavior
smoother current delivery
greater sustained capability

However, phase count should not be interpreted as a standalone quality metric.

A motherboard with fewer but better-designed power stages can outperform one with a larger advertised phase number.

Important evaluation factors include:

power-stage capability
efficiency
thermal performance
controller design
heatsink effectiveness
PCB implementation

11. Chipset / Platform Controller

Historically, PC motherboards contained several major controller chips.

Traditional architectures commonly divided functions between:

northbridge
southbridge

Modern processors have integrated many functions that previously resided in separate chips.

As a result, contemporary platforms often use a processor plus a platform controller hub or chipset.

The chipset may provide additional:

USB ports
SATA connectivity
PCIe lanes
networking interfaces
peripheral connectivity

This reduces the amount of logic required directly around the processor while maintaining extensive system connectivity.

12. CPU:Chipset Communication

The CPU and chipset must communicate using a dedicated high-speed link.

The exact architecture depends on the processor platform.

The processor typically handles latency-sensitive functions such as:

CPU cores
memory controller
high-priority PCIe connectivity

The chipset may provide additional connectivity for:

USB
SATA
additional PCIe devices
networking
other peripherals

This division helps expand system capabilities without routing every device directly to the processor.

13. Memory Slots

Memory slots provide the physical interface between the motherboard and system RAM.

Desktop systems commonly use DIMM slots.

Laptop systems may use:

SO-DIMM
soldered memory
hybrid arrangements

The motherboard determines:

supported memory type
maximum capacity
number of modules
channel configuration
supported speeds

Memory compatibility is therefore determined jointly by the:

CPU + motherboard + memory module + firmware

14. DIMM / SO-DIMM

A DIMM is a memory module designed primarily for desktop and server systems.

A SO-DIMM is a smaller module designed for compact systems such as laptops.

The physical module size is only one difference.

The memory technology itself can also vary by generation.

Examples include:

DDR4
DDR5
LPDDR variants

LPDDR is particularly common in thin mobile systems and is often soldered directly to the board.

15. Memory Channels

Memory channels describe the independent communication paths between the memory controller and RAM.

A dual-channel configuration can provide greater memory bandwidth than a comparable single-channel configuration when the platform and workload can utilize both channels.

Common configurations include:

single channel
dual channel
quad channel
higher channel counts in server platforms

The practical benefit depends on workload.

Memory-intensive applications generally benefit more from additional bandwidth than workloads that are primarily compute-bound.

16. PCI Express Architecture

PCI Express (PCIe) is one of the most important high-speed expansion interfaces in modern computers.

It provides a point-to-point serial communication architecture.

PCIe uses lanes.

Common configurations include:

A larger lane count generally provides greater aggregate bandwidth.

PCIe generations have progressively increased transfer rates.

PCIe Generation	Approx. Transfer Rate per Lane
PCIe 3.0	8 GT/s
PCIe 4.0	16 GT/s
PCIe 5.0	32 GT/s
PCIe 6.0	64 GT/s
PCIe 7.0	128 GT/s

The actual usable bandwidth is lower than the raw signaling rate because of encoding and protocol overhead.

17. PCIe Slots

Motherboards expose PCIe connectivity through physical expansion slots.

Common physical slot sizes include:

A physically x16 slot does not necessarily have sixteen electrically connected lanes.

For example, a slot can physically accept an x16 device while electrically operating at x8 or another configuration.

This distinction is important when evaluating:

GPU slots
expansion cards
storage adapters
capture cards
networking cards

18. GPU Connectivity

Discrete GPUs commonly connect through a PCIe x16 interface.

The motherboard therefore plays an important role in GPU connectivity.

Important factors include:

PCIe generation
lane count
CPU-connected vs chipset-connected lanes
slot placement
electrical configuration
physical clearance

Modern high-performance GPUs can require substantial bandwidth, but the real-world impact of PCIe bandwidth depends heavily on the workload and GPU architecture.

19. M.2 Slots

M.2 is a compact physical form factor used for several types of devices.

In modern PCs, M.2 is particularly associated with:

NVMe SSDs
Wi-Fi modules
other compact expansion devices

An M.2 connector does not automatically mean NVMe.

The electrical interface behind the connector matters.

A storage M.2 slot may support:

PCIe/NVMe
SATA
both

Therefore, motherboard specifications must be examined carefully.

20. SATA Connectivity

Serial ATA (SATA) remains an important storage interface despite the growth of NVMe SSDs.

SATA is commonly used for:

2.5-inch SSDs
hard drives
optical drives

Compared with PCIe-based NVMe storage, SATA provides lower maximum bandwidth.

However, it remains useful for:

large-capacity hard drives
secondary SSDs
inexpensive storage
archival systems

A motherboard’s SATA implementation therefore remains relevant for many desktop and workstation configurations.

21. USB Architecture

Universal Serial Bus (USB) is one of the most important external connectivity standards.

Motherboards may provide USB connectivity through:

rear I/O ports
internal headers
front-panel connectors

USB can support:

keyboards
mice
storage
webcams
audio devices
smartphones
displays
docking stations

Different USB generations provide different capabilities for:

data rate
power delivery
display output
device support

Therefore, simply stating “USB-C” is insufficient to describe complete capability.

22. USB-C & USB4

USB-C describes a connector and physical interface, not one single performance level.

A USB-C port can support different combinations of:

USB data
USB Power Delivery
DisplayPort Alternate Mode
USB4
other functions

USB4 significantly expands high-speed connectivity by supporting tunneling of different protocols over the USB-C ecosystem.

For motherboard analysis, it is therefore important to distinguish:

Connector Type ≠ Protocol Capability

A USB-C port can look identical while providing very different technical capabilities.

23. Thunderbolt

Thunderbolt is a high-speed connectivity technology designed to carry multiple types of traffic over a compatible physical connection.

Depending on generation and implementation, Thunderbolt can support combinations of:

high-speed data
display signals
PCIe tunneling
power

This makes it useful for:

external storage
docks
displays
professional peripherals
external expansion

Thunderbolt-capable motherboard ports require appropriate controller and platform support.

24. Ethernet / LAN

Motherboards frequently include wired Ethernet.

The Ethernet controller handles network communication between the system and wired network infrastructure.

Common desktop networking speeds include:

1 GbE
2.5 GbE
5 GbE
10 GbE

Higher-speed networking becomes increasingly important for:

workstations
NAS systems
content creation
servers
high-speed local networks

The network controller, physical interface, motherboard implementation and connected network infrastructure all influence actual throughput.

25. Wi-Fi & Bluetooth

Wireless connectivity may be integrated directly into the motherboard or added through an expansion module.

Wi-Fi provides wireless networking.

Bluetooth supports short-range connections for devices such as:

keyboards
mice
headphones
controllers
smartphones

A wireless motherboard configuration may include:

Wi-Fi module
Bluetooth controller
antenna connectors
radio-frequency circuitry

Antennas are particularly important because radio performance depends on more than the controller chip alone.

26. Audio Architecture

Motherboards commonly include integrated audio systems.

A simplified audio architecture is:

Digital Audio → Audio Codec / DAC → Amplifier → Headphone / Speaker Output

The audio subsystem may include:

audio codec
DAC
ADC
headphone amplifier
microphone input
line output
digital audio interfaces

Higher-end motherboards may provide additional electrical isolation and dedicated amplification stages.

However, codec model alone does not determine overall audio quality.

PCB layout, analog implementation, power supply noise, amplification and software all matter.

27. Audio Codec & Amplification

The audio codec converts between digital and analog audio and may integrate multiple audio functions.

The amplifier provides sufficient electrical drive for the connected load.

For headphone outputs, important considerations include:

output power
impedance compatibility
noise floor
distortion
channel separation

For motherboard evaluation, it is therefore useful to distinguish:

Codec capability

from:

Complete analog audio implementation

A motherboard can use a high-specification codec and still have mediocre analog output if the surrounding implementation is poor.

28. BIOS / UEFI

BIOS and UEFI are firmware environments responsible for initializing hardware and starting the operating-system boot process.

Modern systems predominantly use UEFI-based firmware.

The firmware initializes components such as:

CPU
memory
storage
PCIe devices
USB
networking

It also provides configuration options for many motherboard settings.

UEFI can therefore be thought of as the motherboard’s pre-operating-system control environment.

29. Firmware & Embedded Controllers

Modern motherboards contain multiple firmware-controlled subsystems.

These can include controllers responsible for:

fan management
keyboard control
power management
USB
monitoring
networking
security
system management

Firmware therefore extends well beyond the main UEFI interface.

Firmware updates can improve:

compatibility
stability
security
processor support
memory compatibility
peripheral support

This makes firmware an important part of motherboard longevity.

30. CMOS / RTC

The Real-Time Clock (RTC) maintains time information while the system is powered off.

Traditional motherboard designs use a small battery to maintain:

clock information
certain configuration data

The term CMOS battery is still widely used because historically CMOS memory was associated with motherboard configuration storage.

Modern systems may implement these functions differently, but the terminology remains common.

A depleted battery can cause:

incorrect system time
loss of certain firmware settings
startup warnings

31. Expansion Headers & Connectors

Motherboards contain numerous internal connectors that allow the case and peripherals to communicate with the board.

Examples include:

front-panel connectors
USB headers
audio headers
RGB headers
fan headers
storage connectors
debug headers

These connectors are easy to overlook but are essential to system integration.

A motherboard’s external rear I/O tells only part of the story.

Internal connectivity can be equally important when building a complete system.

32. Fan & Pump Headers

Motherboards provide power and control connections for cooling devices.

Common headers include:

CPU fan
chassis fan
pump
auxiliary fan

Modern systems can dynamically control fan speed using temperature measurements.

Control methods may include:

PWM
voltage regulation

This allows the motherboard to coordinate cooling with processor and system workload.

33. Temperature & Voltage Sensors

Motherboards use sensors to monitor system conditions.

Common measurements include:

CPU temperature
motherboard temperature
VRM temperature
chipset temperature
fan speed
system voltage

Monitoring data can be used by firmware and software to:

adjust fan speed
detect abnormal conditions
protect components
provide diagnostic information

Sensor placement matters because a motherboard temperature sensor does not necessarily represent the temperature of every component.

34. Motherboard Power Connectors

The motherboard receives power through dedicated connectors.

A desktop platform commonly uses:

main motherboard power connector
CPU power connector

Additional connectors may be required depending on:

processor power requirements
expansion devices
motherboard architecture

The motherboard then distributes and regulates these power rails.

Power delivery is therefore a complete chain:

PSU → Motherboard Connector → VRM → Regulated Rail → Component

35. ATX / Micro-ATX / Mini-ITX

Motherboard form factors define physical dimensions and mounting arrangements.

Form Factor	General Characteristic
ATX	Full-size mainstream desktop platform
Micro-ATX	Smaller board with reduced expansion
Mini-ITX	Compact platform emphasizing small systems
E-ATX	Larger enthusiast/workstation implementations

Form factor affects:

expansion slots
memory layout
connector placement
cooling options
case compatibility
physical system size

A smaller motherboard is not automatically inferior.

It simply provides less physical space for expansion and component placement.

36. Desktop vs Laptop Motherboards

Desktop motherboards emphasize:

replaceability
expansion
standardized components
upgradeability

Laptop motherboards prioritize:

compactness
power efficiency
integration
thermal constraints

Laptop designs frequently solder components such as:

memory
storage
wireless modules
processors

This allows manufacturers to reduce physical volume but can reduce repairability and upgradeability.

37. Server & Workstation Motherboards

Server and workstation motherboards are designed around different priorities than consumer desktop boards.

They may support:

multiple CPUs
large memory capacities
ECC memory
high PCIe lane counts
high-speed networking
remote management
storage expansion

Reliability and manageability often take precedence over consumer-oriented features.

Server boards may therefore include technologies such as:

BMC
remote console
hardware monitoring
redundant power support

38. Smartphone Logic Boards

Smartphones demonstrate how motherboard architecture can evolve toward extreme integration.

A smartphone logic board can contain:

application processor
memory
storage
power-management ICs
RF components
connectivity controllers
audio circuitry
camera interfaces
sensors

Unlike a desktop motherboard, many components are directly soldered to the board.

This produces:

very high integration
compact size
short signal paths

but generally much lower user upgradeability.

39. Motherboard Signal Integrity

Signal integrity is one of the most important engineering challenges in modern motherboard design.

High-speed signals can be affected by:

reflection
crosstalk
attenuation
impedance mismatch
electromagnetic interference
via transitions
connector characteristics

As interface speeds increase, PCB traces behave less like simple wires and more like transmission lines.

Engineers therefore control:

trace impedance
routing geometry
reference planes
differential-pair spacing
layer transitions
connector design

This is particularly important for:

DDR memory
PCIe
USB
high-speed networking

40. Motherboard Power & Thermal Architecture

Motherboard design is closely connected to thermal management.

Heat can originate from:

CPU VRM
chipset
network controllers
storage controllers
memory power circuitry

Thermal design may use:

heatsinks
thermal pads
airflow
heat pipes
heat spreaders

VRM cooling is particularly important because power stages dissipate energy while converting voltage and regulating current.

A motherboard intended for sustained high CPU loads therefore requires appropriate power and thermal engineering.

41. Motherboard Component Quality

Motherboard quality depends on many components working together.

Important categories include:

PCB quality
VRM implementation
capacitors
power stages
controllers
connectors
firmware
cooling
signal routing

Marketing often highlights individual components.

A more useful approach is to evaluate the system implementation.

For example, a premium capacitor cannot compensate for poor PCB routing, inadequate cooling or weak firmware.

42. Motherboard Performance

A motherboard generally does not increase CPU performance in the same way a faster CPU does.

Instead, motherboard performance is primarily associated with its ability to:

deliver stable power
maintain signal integrity
support high-speed memory
provide sufficient expansion bandwidth
maintain thermal stability
support high-speed storage and networking

A well-designed motherboard allows the installed components to operate reliably within their intended specifications.

43. Motherboard Reliability & Durability

Reliability depends on electrical, thermal and mechanical design.

Potential failure mechanisms include:

excessive heat
voltage stress
component aging
PCB damage
connector wear
firmware problems
electrical transients

Long-term reliability can therefore benefit from:

appropriate thermal margins
quality power components
robust PCB construction
adequate cooling
mature firmware

Reliability should be evaluated as a system characteristic rather than through one component specification.

44. Motherboard Upgradeability

Upgradeability refers to how easily a motherboard can accommodate future components.

Potential upgrade paths include:

CPU
RAM
GPU
SSD
expansion cards
networking
USB devices

However, upgradeability depends on platform compatibility.

A motherboard may physically contain a socket but still require:

a compatible CPU generation
firmware support
appropriate power delivery
compatible memory

Therefore:

Physical compatibility does not guarantee platform compatibility.

45. Motherboard Compatibility

Motherboard compatibility is multidimensional.

Component	Compatibility Factors
CPU	Socket, platform, firmware, power
RAM	Memory generation, capacity, speed, topology
GPU	PCIe, physical clearance, power
SSD	M.2 interface, PCIe/SATA support
Cooler	Socket mounting, clearance
Case	Form factor, mounting
PSU	Connectors, power capacity
Network	Interface and controller support
Operating System	Driver and firmware support

This is why system building requires checking the complete platform rather than matching only one specification.

46. Motherboard Bottlenecks

A motherboard can become a bottleneck when its architecture limits another component.

Examples include:

insufficient PCIe lanes
limited storage bandwidth
inadequate VRM thermal capability
limited USB bandwidth
insufficient networking bandwidth
memory compatibility limitations

However, motherboard bottlenecks are often misunderstood.

A motherboard does not need the highest specification in every category.

It needs sufficient capability for the intended workload.

47. Motherboard Specifications Explained

A motherboard specification sheet can contain dozens of technical parameters.

Important specifications include:

Category	Key Specifications
CPU	Socket, supported processors
Memory	Type, slots, capacity, speeds
Expansion	PCIe generations and lanes
Storage	M.2, SATA
USB	Ports, standards, bandwidth
Networking	Ethernet, Wi-Fi, Bluetooth
Audio	Codec, channels, outputs
Power	VRM, CPU power connectors
Firmware	UEFI features, update mechanisms
Form Factor	ATX, Micro-ATX, Mini-ITX
Cooling	Fan/pump headers
Internal I/O	Headers and connectors

The important principle is to interpret these specifications as an architecture, not as isolated numbers.

48. How to Read a Motherboard

A practical way to analyze a motherboard is to follow the system from the center outward.

Step 1 – Identify the platform

Determine:

CPU socket
chipset
processor generation

Step 2- Examine memory

Check:

memory type
number of slots
maximum capacity
channel configuration

Step 3 : Examine expansion

Check:

PCIe generation
slot configuration
CPU vs chipset connectivity

Step 4 : Examine storage

Check:

M.2 slots
PCIe/NVMe support
SATA ports

Step 5 : Examine I/O

Check:

USB
networking
display
audio

Step 6 : Examine power

Check:

VRM
CPU power connectors
cooling

Step 7 : Examine firmware and management

Check:

UEFI
update mechanisms
diagnostics
monitoring

This creates a much more accurate understanding than simply counting ports.

49. Common Motherboard Misconceptions

Misconception 1: More VRM phases always mean a better motherboard.

Not necessarily.

Power-stage quality, controller design and thermal performance matter.

Misconception 2: More PCIe slots mean more bandwidth.

Not necessarily.

Physical slot size and electrical lane allocation are different.

Misconception 3: Every M.2 slot supports NVMe.

False.

The connector is a physical form factor; electrical support must be checked.

Misconception 4: USB-C means USB4.

False.

USB-C is a connector specification, while USB4 is a connectivity technology.

Misconception 5: A more expensive motherboard makes the CPU faster.

Not automatically.

A better motherboard can provide stronger power delivery, connectivity and expansion, but the CPU itself determines most raw computational performance.

Misconception 6: Bigger motherboards are always better.

False.

Larger boards provide more physical space and expansion options, but compact systems may intentionally prioritize integration and efficiency.

Misconception 7: A motherboard is just a passive connection board.

False.

It contains active controllers, power-management systems, firmware, monitoring systems and high-speed communication infrastructure.

50. Future Motherboard Architecture

The future motherboard will increasingly become a high-density platform for heterogeneous computing.

Several trends are likely to shape its evolution.

More CPU Integration

Processors will continue integrating:

memory controllers
PCIe
USB
AI accelerators
networking functions

This will reduce the amount of external chipset logic required.

Faster Interconnects

PCIe and other interfaces will continue increasing bandwidth.

This will make:

signal integrity
PCB materials
connector design
thermal management

increasingly important.

More High-Speed Storage

Motherboards will increasingly prioritize:

PCIe-based SSDs
high-speed NVMe
additional PCIe lanes

More Integrated Connectivity

Networking, wireless and high-speed external interfaces will increasingly become platform-level features.

Smarter Power Management

Motherboards will increasingly monitor:

power
temperature
current
workload

and dynamically optimize system operation.

Advanced PCB Technology

Higher-speed interfaces may require:

more sophisticated PCB materials
tighter impedance control
advanced routing
improved manufacturing tolerances

Greater Integration

The boundary between:

CPU + Chipset + Motherboard

will continue to evolve.

Some functions historically implemented as motherboard components are increasingly moving into the processor package or SoC.

Final Takeaway

A motherboard is the system infrastructure of a computer.

It provides the physical PCB, electrical power delivery, high-speed communication pathways, expansion interfaces, storage connectivity, memory interfaces, networking, audio, firmware and system-management functions required to turn individual components into one operational platform.

The motherboard can be understood through several interconnected layers:

Physical Layer

PCB → sockets → connectors → slots

↓

Electrical Layer

Power → VRM → voltage regulation → signal routing

↓

Communication Layer

Memory → PCIe → USB → storage → networking

↓

Control Layer

UEFI → firmware → embedded controllers → sensors
