AMD Ryzen Processor Architecture Explained: Zen, Chiplets, 3D V-Cache, GPU & AI

Meta Description

Explore AMD Ryzen processor architecture in depth, including Zen CPU microarchitecture, x86-64 design, chiplet architecture, Core Complex Dies, I/O Die, Infinity Fabric, CPU cores, SMT, cache hierarchy, 3D V-Cache, Radeon integrated graphics, RDNA, Ryzen AI, XDNA NPU, AI PC architecture, memory, PCIe, power management, Precision Boost, advanced packaging, gaming, content creation, Ryzen generations, and Ryzen vs Intel Core, Apple Silicon and Snapdragon.

In One Sentence

AMD Ryzen is AMD’s mainstream x86 processor family, built around the Zen architecture and evolved from conventional multi-core CPUs into highly modular computing platforms combining CPU cores, chiplets, large cache hierarchies, integrated or discrete Radeon graphics, AI acceleration on supported Ryzen AI platforms, memory controllers, PCIe connectivity and advanced power management.

For Digital Plaza, AMD Ryzen should be treated as a major Processor Architecture cornerstone alongside Qualcomm Snapdragon, Samsung Exynos and Intel Core—not merely as a “CPU brand.”

1. What Is AMD Ryzen?

AMD Ryzen is AMD’s family of x86-64 processors for:

Desktop PCs
Laptops
Gaming PCs
Creator systems
Workstations
Mini PCs
Commercial computers

Ryzen was introduced in 2017 with AMD’s Zen architecture, marking a major change in AMD’s competitive position in the x86 processor market.

The fundamental Ryzen architecture has evolved through successive Zen generations:

Zen

↓

Zen 2

↓

Zen 3

↓

Zen 4

↓

Zen 5

with later products adding increasingly sophisticated:

Chiplet architectures
3D V-Cache
Integrated Radeon graphics
AI acceleration
Advanced power management
Higher-bandwidth memory
Advanced packaging

The result is a processor architecture that is highly modular rather than monolithic.

2. Ryzen Is More Than a CPU

A modern Ryzen processor can contain or interact with:

CPU cores
Cache
Memory controller
Integrated Radeon graphics
NPU on Ryzen AI models
Media engines
PCIe
Security processors
Display engines
Power-management systems

The architecture can therefore be represented as:

CPU

Cache

Memory

GPU

NPU on supported Ryzen AI platforms

I/O

Security

↓

AMD Computing Platform

3. Zen: The Foundation of Ryzen

The most important concept in Ryzen architecture is Zen.

Zen is AMD’s CPU microarchitecture family.

The Ryzen evolution is therefore fundamentally a story about Zen:

Generation	Architecture
Ryzen 1000	Zen
Ryzen 2000	Zen+
Ryzen 3000	Zen 2
Ryzen 5000	Zen 3
Ryzen 7000	Zen 4
Ryzen 8000	Zen 4 / Zen 4c depending product
Ryzen 9000	Zen 5
Newer Ryzen generations	Zen-family derivatives and newer platform architectures

The exact architecture varies by product family, so the Ryzen model number alone should never be treated as proof of a particular Zen generation.

4. Zen’s Core Philosophy

Zen was designed around several important principles:

Higher IPC
Simultaneous multithreading
Modular design
Improved cache
Greater core scalability
Better power efficiency
Advanced manufacturing
Multi-chip packaging

AMD’s long-term strategy became increasingly modular.

Instead of building one enormous CPU die, AMD could combine smaller functional blocks.

This eventually led to the chiplet architecture becoming one of Ryzen’s defining characteristics.

5. CPU Core Architecture

A Ryzen CPU core contains structures such as:

Instruction fetch
Branch prediction
Instruction decode
Execution units
Integer pipelines
Floating-point units
Load/store units
Registers
L1 cache
L2 cache

The objective is to execute instructions efficiently.

A useful conceptual relationship is:

CPU Performance

≈

IPC × Frequency × Effective Parallelism

This is why Ryzen performance cannot be judged from clock speed alone.

6. IPC

IPC means:

Instructions Per Cycle

It describes how much useful work a processor can perform during each clock cycle.

For example, two CPUs may both operate at:

5.0 GHz

yet deliver different performance because their microarchitectures execute different amounts of work per cycle.

Zen’s evolution has therefore focused heavily on improving:

Front-end efficiency
Branch prediction
Execution resources
Cache
Memory access
Pipeline behavior

7. Simultaneous Multithreading

Many Ryzen processors support SMT — Simultaneous Multithreading.

SMT allows a physical CPU core to manage multiple hardware threads.

The conceptual structure is:

Physical Core

↓

Multiple Hardware Threads

↓

Operating-System Scheduler

This can improve utilization of the processor’s execution resources in suitable workloads.

It does not mean that two threads equal two full physical cores.

8. Ryzen Core Scaling

AMD has historically offered Ryzen processors with a wide range of core counts.

Examples include:

4-core
6-core
8-core
12-core
16-core

depending on generation and product class.

This makes Ryzen particularly flexible for:

Mainstream computing
Gaming
Workstations
Content creation
Development

9. The Chiplet Revolution

One of the most important innovations associated with modern Ryzen is the chiplet architecture.

Instead of putting everything on one large silicon die, AMD can divide the processor into smaller functional dies.

A simplified desktop architecture is:

Core Complex Die (CCD)

I/O Die (IOD)

↓

Ryzen Processor

This modular architecture became particularly important beginning with Zen 2.

10. What Is a CCD?

CCD means:

Core Complex Die

It contains the primary CPU computing resources.

A simplified representation is:

CCD

├── CPU Core

└── Cache

Multiple CCDs can be combined in higher-core-count Ryzen processors.

11. What Is the I/O Die?

The I/O Die manages communication between the CPU cores and the rest of the platform.

It can contain functions associated with:

Memory
PCIe
External connectivity
System interconnect
Other platform functions

The architecture becomes:

CPU CCD

↕

Infinity Fabric

↕

I/O Die

↕

Memory / PCIe / Platform

This separation allows AMD to scale the processor more flexibly.

12. Why Chiplets Matter

Chiplets provide several advantages.

Scalability

AMD can combine multiple compute dies.

Manufacturing efficiency

Smaller dies can improve manufacturing economics.

Product flexibility

Different configurations can be created from related building blocks.

Process optimization

Compute and I/O components do not necessarily need identical process technologies.

This is one of the major reasons AMD has been able to scale Ryzen effectively across product generations.

13. Infinity Fabric

AMD’s Infinity Fabric is an important interconnect technology.

It links different parts of the processor and platform.

Conceptually:

CPU Cores

↕

CCD

↕

Infinity Fabric

↕

I/O

↕

Memory / PCIe / Other Components

Infinity Fabric is therefore fundamental to AMD’s modular processor architecture.

14. Cache Architecture

Cache is a major Ryzen performance feature.

The hierarchy includes:

↓

System Memory

Higher-level cache can reduce the need to access comparatively slower DRAM.

This is particularly important for:

Gaming
Compilation
Simulation
Databases
Content creation

15. AMD 3D V-Cache

One of AMD’s most distinctive innovations is 3D V-Cache.

Instead of simply increasing cache horizontally on the same silicon plane, AMD uses advanced packaging to stack additional cache vertically.

Conceptually:

CPU CCD

Additional L3 Cache

↓

3D V-Cache

This dramatically increases available L3 cache on supported Ryzen processors.

16. Why 3D V-Cache Matters

Large cache can be especially valuable for workloads that repeatedly access relatively small datasets.

Gaming is a major example.

The architecture becomes:

Game Engine

↓

CPU

↓

Large L3 Cache

↓

Reduced DRAM Access

This can improve gaming performance in CPU-limited scenarios.

However:

More cache does not automatically improve every workload.

The benefit depends on workload characteristics.

17. Ryzen and Gaming

Gaming is one of Ryzen’s strongest architectural use cases.

Modern gaming workloads depend on:

CPU IPC
CPU frequency
Core latency
Cache
Memory
GPU
Game engine

AMD’s X3D processors demonstrate how cache can become a major gaming-performance differentiator.

This creates an important architectural distinction:

Standard Ryzen

→ balanced CPU architecture

Ryzen X3D

→ CPU architecture with expanded 3D V-Cache

18. Integrated Radeon Graphics

Some Ryzen processors include integrated Radeon graphics.

This allows a system to operate without a separate GPU for many workloads.

Integrated graphics can handle:

Desktop rendering
Video playback
Light gaming
Display output
Hardware acceleration

The exact graphics architecture depends heavily on the Ryzen generation and product.

19. Ryzen APU Architecture

AMD has historically used the term APU for processors combining CPU and GPU functionality.

Conceptually:

CPU

GPU

Memory Controller

I/O

↓

APU

Modern Ryzen mobile processors increasingly integrate many functions into a compact SoC-like platform.

This is particularly important for laptops.

20. Radeon Graphics Architecture

Ryzen integrated graphics have evolved through multiple Radeon architectures.

Depending on generation and product, Ryzen graphics may use:

Vega
RDNA 2
RDNA 3
newer RDNA-family architectures

Therefore, “Ryzen integrated graphics” is not one fixed GPU architecture.

The exact processor must be identified.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

21. RDNA Graphics

AMD’s RDNA architecture is designed for modern graphics workloads.

It targets:

Gaming
Rasterization
Ray tracing
Compute
AI-assisted graphics

Bringing RDNA-class graphics into Ryzen mobile processors creates a unified platform:

CPU + Radeon GPU

This can deliver strong graphics performance within laptop power constraints.

22. Ray Tracing

Supported Ryzen systems with suitable Radeon graphics can use hardware-accelerated ray tracing.

The pipeline is:

Game Engine

↓

Graphics API

↓

Radeon GPU

↓

Ray-Tracing Hardware

↓

Final Frame

This allows realistic:

Reflections
Shadows
Lighting

without requiring the CPU to perform all graphics calculations.

23. Ryzen AI

AMD’s Ryzen architecture has expanded into AI through Ryzen AI.

Supported Ryzen AI processors combine:

The architecture becomes:

Ryzen AI

├── CPU

├── Radeon GPU

└── Ryzen AI NPU

This is AMD’s answer to the emerging AI PC market.

24. What Is the Ryzen AI NPU?

The NPU is a dedicated neural-processing engine.

Its purpose is to accelerate AI inference efficiently.

Potential workloads include:

Voice enhancement
Background blur
Image processing
AI assistants
Generative AI
Transcription
Local machine learning

The key distinction is:

CPU

→ flexible

GPU

→ highly parallel

NPU

→ AI-efficient

25. XDNA Architecture

AMD’s dedicated NPU architecture is based on XDNA.

XDNA is AMD’s architecture for AI acceleration in Ryzen AI platforms.

It is derived from AMD’s adaptive-computing technology and designed specifically for efficient AI workloads.

The architectural model is:

AI Model

↓

Ryzen AI Software

↓

XDNA NPU

↓

AI Inference

This gives Ryzen AI systems a dedicated AI processing engine.

26. XDNA 2

AMD subsequently introduced XDNA 2, increasing the AI-processing capability of newer Ryzen AI processors.

The objective is to support increasingly demanding:

Generative AI
Local AI assistants
AI productivity
Computer vision
Multimodal workloads

This illustrates the same industry trend seen across:

Intel Core Ultra

Qualcomm Snapdragon X

Apple Silicon

AMD Ryzen AI

toward heterogeneous AI computing.

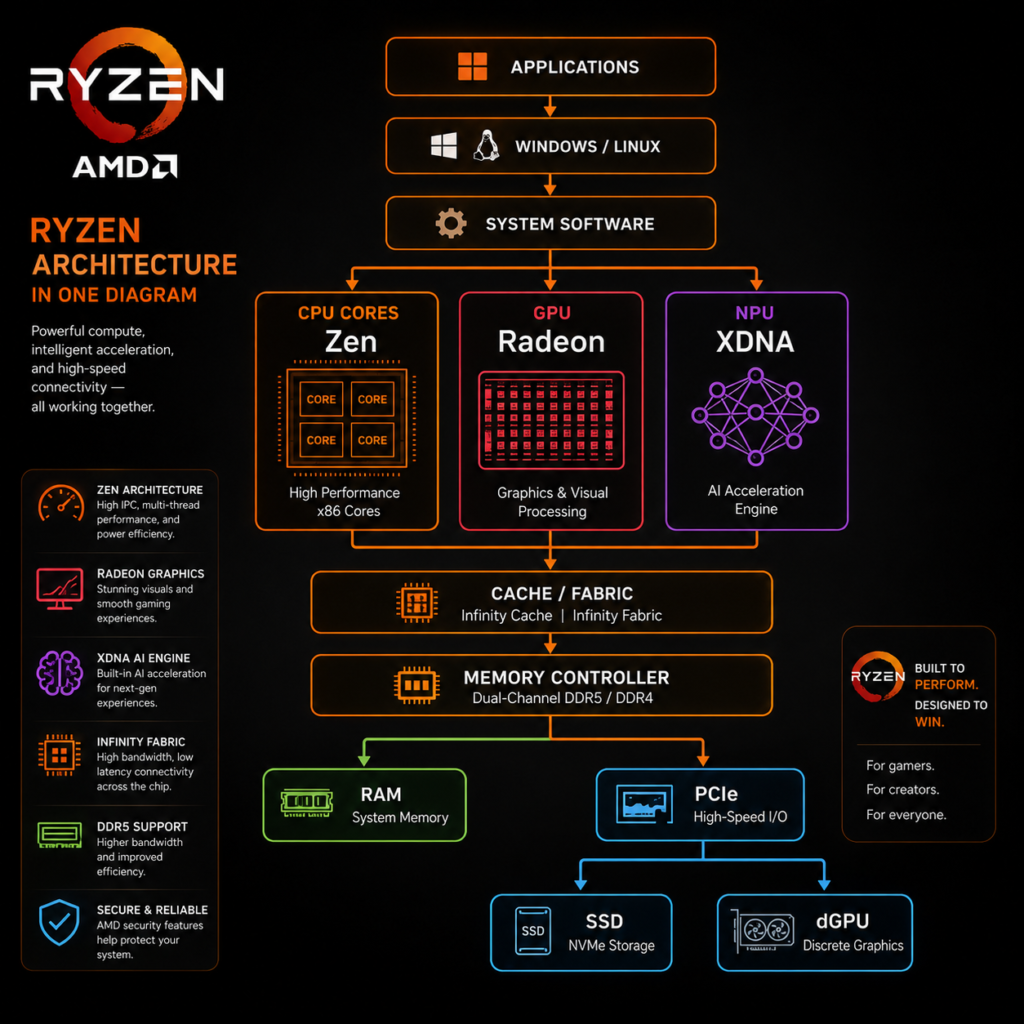

27. CPU + GPU + NPU

Modern Ryzen AI architecture can therefore be represented as:

CPU

General Computing

GPU

Graphics / Parallel Compute

NPU

↓

Unified PC Platform

This is the defining architecture of the modern AI PC.

28. AI Workload Distribution

AI does not necessarily run entirely on the NPU.

A sophisticated Ryzen AI platform can distribute workloads between:

CPU

Control and general-purpose tasks.

GPU

Large parallel AI workloads.

NPU

Efficient neural-network inference.

Therefore:

AI workload

↓

CPU / GPU / NPU

↓

Best execution engine

This is heterogeneous computing.

29. AI Software

AMD’s AI strategy depends on software as much as hardware.

The stack includes:

AI frameworks
ROCm-related technologies
Ryzen AI software
ONNX
Microsoft AI APIs
Model optimization tools

The architecture becomes:

Application

↓

AI Framework

↓

Runtime

↓

CPU / GPU / NPU

↓

Memory

30. Memory Architecture

Memory is critical to Ryzen performance.

The processor must efficiently move data between:

CPU

GPU

NPU

and:

RAM

Mobile Ryzen processors may use low-power memory technologies such as LPDDR, while desktop Ryzen systems typically use conventional DDR memory depending on generation.

The exact memory standard is platform-specific.

31. Memory Bandwidth

Memory bandwidth becomes especially important for integrated graphics.

A discrete GPU generally has dedicated high-bandwidth graphics memory.

An integrated Ryzen GPU often shares system memory.

Therefore:

Integrated GPU performance

can be strongly influenced by:

Memory speed
Memory channels
Memory configuration
Latency
Bandwidth

This is why laptop memory configuration can materially affect Radeon integrated-graphics performance.

32. PCIe Architecture

Ryzen processors provide PCI Express connectivity for high-speed devices.

Common devices include:

NVMe SSDs
Discrete GPUs
Network adapters
Expansion cards

The architecture is:

Ryzen

↓

PCIe

↓

GPU / SSD / Peripheral

PCIe generation and lane configuration depend on the specific Ryzen platform.

33. Storage

Modern Ryzen platforms support high-speed NVMe storage through PCIe.

This affects:

Boot time
Application loading
Game loading
File transfers
Content creation
AI model loading

Fast compute therefore needs fast data access.

34. Security Architecture

AMD Ryzen platforms incorporate hardware-assisted security technologies.

The security architecture includes technologies such as:

AMD Secure Processor
Secure Boot
Memory encryption
Platform security
Trusted execution mechanisms

The goal is to protect:

Firmware
Credentials
Encryption keys
Sensitive data
Virtual machines

35. Power Management

Ryzen processors dynamically manage:

Voltage
Frequency
Core activity
Sleep states
GPU activity
Package power

The goal is:

Maximum useful performance

within:

Power + Thermal Constraints

36. Precision Boost

AMD’s Precision Boost technology dynamically adjusts processor frequency according to available:

Power
Temperature
Current
Workload

This allows Ryzen processors to opportunistically increase performance when thermal and power conditions permit.

Therefore a Ryzen processor‘s behavior is dynamic rather than fixed.

37. Precision Boost Overdrive

Precision Boost Overdrive (PBO) provides additional performance-tuning capability on supported Ryzen processors and platforms.

It allows the processor to operate beyond some standard limits when the motherboard, cooling and configuration permit.

PBO is particularly relevant to enthusiasts.

38. Ryzen Desktop Architecture

Desktop Ryzen typically emphasizes:

High CPU performance
Multiple cores
Large cache
Chiplet scalability
PCIe connectivity
DDR memory
Discrete GPU support

A high-end desktop configuration can therefore be represented as:

Multiple CCDs

Large L3 Cache

I/O Die

↓

Ryzen Desktop CPU

39. Ryzen Mobile Architecture

Mobile Ryzen processors prioritize:

Performance per watt
Integrated graphics
Battery life
AI acceleration
Media processing
Low-power memory

The architecture becomes closer to an SoC:

CPU

GPU

NPU

Memory

Media

I/O

↓

Laptop Platform

40. Ryzen AI Mobile Architecture

This is where AMD’s architecture becomes particularly interesting.

A modern Ryzen AI mobile platform combines:

Zen CPU

Radeon GPU

XDNA NPU

Memory Controller

Media Engine

I/O

This is effectively a heterogeneous AI SoC for PCs.

41. Ryzen Generations

A simplified architectural progression is:

Ryzen 1000

Zen

Ryzen 2000

Zen+

Ryzen 3000

Zen 2

Ryzen 5000

Zen 3

Ryzen 7000

Zen 4

Ryzen 8000

Zen 4-family mobile architecture

Ryzen 9000

Zen 5

The product family is more complicated than this simple list because AMD can use different architectures across desktop, mobile and embedded products.

Therefore:

Always verify architecture by the exact processor model.

42. Zen 2: The Chiplet Era

Zen 2 was particularly important because AMD expanded the use of chiplets in mainstream Ryzen processors.

The architecture became:

7nm CPU CCD

I/O Die

This allowed AMD to separate compute from I/O.

It became one of the defining architectural advantages of modern Ryzen.

43. Zen 3

Zen 3 introduced significant changes to the internal organization of the CPU complex.

One important improvement was a redesigned core complex architecture that improved communication and cache access.

The result was improved:

IPC
Latency
Gaming
Single-thread performance

44. Zen 4

Zen 4 moved Ryzen to a newer CPU architecture and advanced manufacturing process.

It also introduced the AM5 desktop platform alongside DDR5 and PCIe 5.0.

This was an important platform transition.

45. Zen 5

Zen 5 represents another major CPU microarchitecture evolution.

The architecture focuses on:

IPC
AI workloads
Vector processing
Efficiency
Front-end improvements
Execution performance

Ryzen 9000 desktop processors are based on Zen 5.

46. 3D V-Cache as a Platform Differentiator

AMD’s X3D processors deserve special treatment in any Ryzen architecture analysis.

The concept is:

Zen CPU

Large vertically stacked cache

↓

Ryzen X3D

The goal is particularly strong gaming performance.

This is an example of advanced packaging becoming part of CPU architecture.

47. Chiplets and Advanced Packaging

Modern Ryzen demonstrates that processor performance is no longer determined solely by transistor design.

Packaging matters.

AMD uses techniques including:

Chiplets
3D stacking
Advanced interconnects

This allows AMD to create increasingly complex processors without relying entirely on one giant monolithic die.

48. Ryzen and Gaming

Ryzen has become particularly significant in gaming because of the combination of:

High IPC
High core counts
Large cache
3D V-Cache
Radeon graphics on some platforms
Efficient architectures

Gaming performance is therefore a combination of:

CPU architecture

Cache

GPU

Memory

Game engine

49. Ryzen and Content Creation

Ryzen’s multi-core architecture is well suited to workloads such as:

Video editing
Rendering
Compilation
3D workloads
Compression
Simulation

These workloads can scale effectively across many CPU cores.

50. Ryzen and AI

The Ryzen AI architecture adds a third computational engine.

Traditional Ryzen:

CPU + GPU

Ryzen AI:

CPU + GPU + NPU

This allows AI workloads to be assigned to the most suitable hardware.

51. Ryzen vs Intel Core

This is Ryzen’s most important competitive comparison.

Area	AMD Ryzen	Intel Core / Core Ultra
ISA	x86-64	x86-64
CPU architecture	Zen	Intel architectures
Core strategy	Primarily Zen cores; product-dependent	P/E hybrid on supported generations
GPU	Radeon	Intel Graphics / Arc
NPU	Ryzen AI on supported models	Core Ultra NPU
Chiplets	Major Ryzen strategy	Increasing modularity
3D cache	X3D	No direct equivalent at same scale
Desktop	Strong	Strong
Laptop	Strong	Strong
AI PC	Ryzen AI	Core Ultra

Neither should be judged by brand alone.

The correct comparison is:

specific Ryzen generation

specific Intel generation.

52. Ryzen vs Apple Silicon

Apple uses highly integrated SoCs.

Ryzen’s architecture is more modular, particularly on desktop.

AMD

Zen CPU

Radeon GPU

NPU on Ryzen AI

Chiplets

Apple

Apple CPU

Apple GPU

Neural Engine

Unified Memory

The architectural philosophy is therefore different.

53. Ryzen vs Snapdragon

The comparison is increasingly important for laptops.

Ryzen

x86

Zen

Radeon

NPU

Snapdragon X

Arm

Oryon

Adreno

NPU

This represents one of the most important emerging PC architecture competitions:

x86 vs Arm

54. Ryzen vs Exynos

Ryzen and Exynos occupy substantially different primary markets.

Ryzen

Primarily:

PC / laptop computing

Exynos

Primarily:

Smartphone / mobile computing

Their architectures nevertheless share the same modern principle:

CPU + GPU + AI acceleration + memory + specialized engines

This is evidence of the industry’s broader shift toward heterogeneous computing.

55. Ryzen Benchmarking

A proper Ryzen evaluation should measure:

CPU

Single-core
Multi-core
IPC
Sustained performance

GPU

Rasterization
Ray tracing
Compute

AI

NPU
GPU AI
CPU AI

Memory

Bandwidth
Latency

Efficiency

Performance per watt

Gaming

Average FPS
1% lows
CPU-limited performance

A single benchmark number is insufficient.

56. Why Ryzen Performance Varies Between Systems

The same Ryzen processor can perform differently depending on:

Power limits
Cooling
Memory
BIOS
Motherboard
Chassis
Firmware
Battery mode
Fan profile

This is especially important for laptops.

A Ryzen processor is therefore not the entire computer.

The Ryzen Architecture Formula

The simplest way to understand modern Ryzen is:

Zen CPU

Chiplets

Infinity Fabric

Large Cache

Radeon GPU

XDNA NPU on Ryzen AI

Memory

PCIe

Advanced Packaging

AMD Ryzen Platform

Conclusion

AMD Ryzen is one of the most important processor families in modern computing because it represents more than AMD’s return to high-performance x86 CPUs.

It represents a fundamental change in processor architecture.

The evolution is:

Zen

↓

Zen +

↓

Zen 2

↓

Chiplets

↓

Zen 3

↓
