Android Operating System Architecture Part II: Android Framework, System Services, Binder and Application Architecture

How Android turns its kernel, runtime and hardware abstractions into a functioning operating environment through Framework APIs, system services, Binder IPC, application lifecycle management and system components.

Category: Mobile Operating Systems / Android / Operating System Architecture

Updated: August 17, 2026
Reading Time: 11 minutes

In One Sentence

The Android Framework and System Services form the operational layer between the underlying platform and applications, providing standardized APIs and privileged services for application lifecycle, windows, packages, permissions, power, connectivity, media, sensors and other core operating-system functions.

Key Highlights

The Android Framework provides APIs and higher-level services used by applications.
System Services perform privileged functions on behalf of applications and the operating system.
system_server is a central Android process hosting many framework system services.
Binder provides the principal IPC mechanism connecting applications and platform processes.
AIDL defines many modern Binder interfaces and is also used extensively for platform components and HALs.
The Activity and task-management architecture controls application lifecycle and user-facing navigation.
Window and display systems coordinate application surfaces and modern multi-window environments.
Package management handles installed applications and associated package metadata.
Android’s permission architecture limits application access to protected resources.
System services provide privileged access to capabilities such as location, power, connectivity, media and sensors.
OEMs customize the Android platform while maintaining compatibility with Android’s application environment.

Introduction: Where Android Becomes an Operating System

Part I examined Android from the bottom upward.

We began with:

Hardware → Linux → ACK/GKI → HAL → Native Components → Binder → ART

Those layers establish the platform foundation.

But a kernel and runtime alone do not provide the smartphone experience.

An operating system must also coordinate applications and system resources.

It must know:

which application is active;
which process should receive resources;
which windows should be displayed;
which application is allowed to use the camera;
how notifications are delivered;
how packages are installed;
how applications communicate;
how power is managed;
how connectivity is controlled;
how users interact with system functions.

That is the role of the Android Framework and System Services.

AOSP’s architecture explicitly identifies the Android Framework and System Services as major components of the platform.

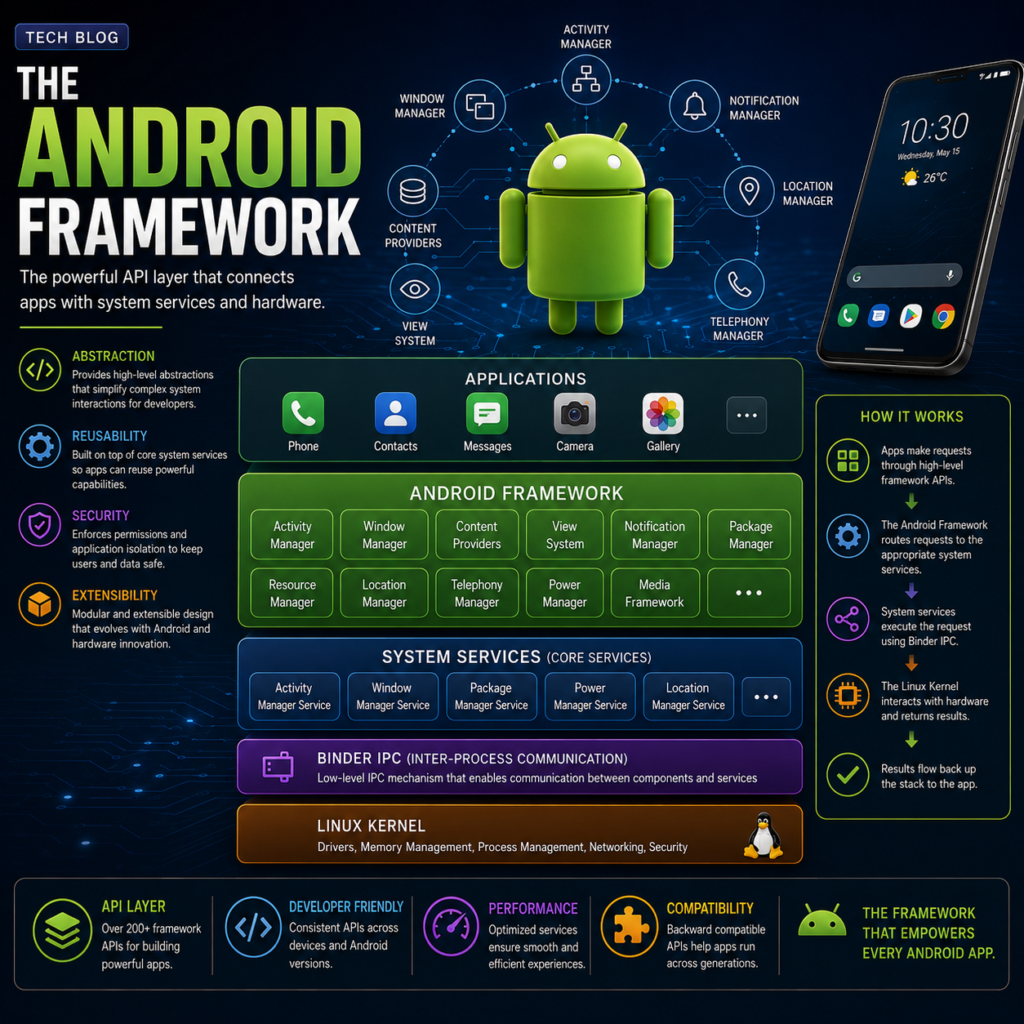

1. The Android Framework

The Android Framework is the high-level platform layer through which applications access operating-system functionality.

Instead of communicating directly with the kernel or hardware, applications use Android APIs.

A simplified request looks like:

APPLICATION
     ↓
ANDROID API
     ↓
FRAMEWORK
     ↓
SYSTEM SERVICE
     ↓
BINDER
     ↓
LOWER PLATFORM

This abstraction is essential.

A developer writing a camera application should not need to know which camera sensor or kernel driver is installed.

The developer works with Android’s camera APIs.

The platform handles the complexity beneath them.

2. Framework APIs as Contracts

An API can be thought of as a contract.

The application says:

“I want to perform this supported operation.”

Android determines how that operation should be implemented.

This separation gives Android several advantages.

Hardware independence

Applications can run across different hardware configurations.

Software compatibility

Developers can target standardized APIs.

Security

Applications cannot simply bypass operating-system controls.

Maintainability

Internal implementation can change without necessarily changing application code.

This is one of the most important principles of operating-system architecture.

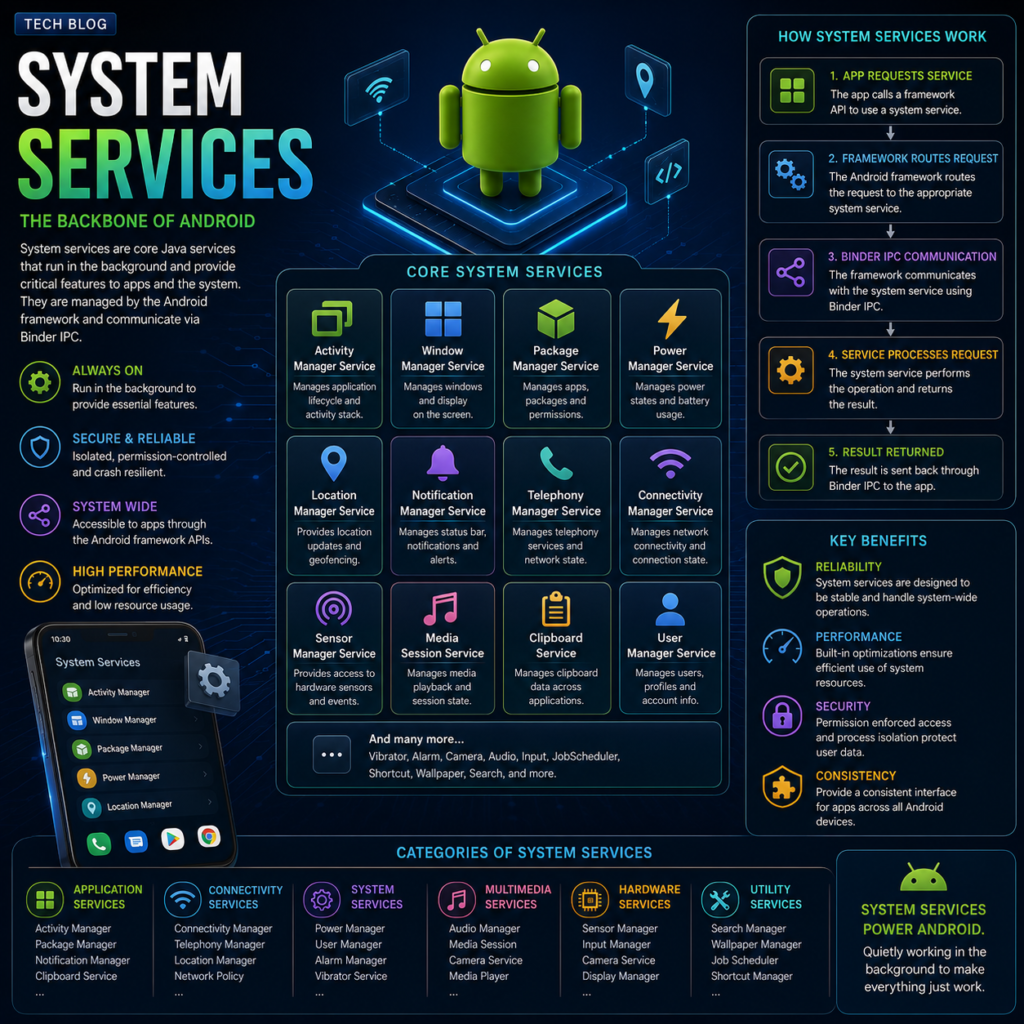

3. System Services

Behind many Framework APIs are system services.

These services provide privileged operating-system functionality.

Examples include services associated with:

activity management;
package management;
window management;
power;
connectivity;
location;
notifications;
media;
sensors;
permissions.

The application does not necessarily perform these functions itself.

Instead, it requests them from the Android platform.

4. `system_server`

One of the most important processes in Android’s framework architecture is system_server.

A large number of Android framework system services operate within this process.

Conceptually:

system_server
│
├── Activity-related Services
├── Package-related Services
├── Power Management
├── Connectivity
├── Permissions
├── Window Management
├── Other Framework Services
└── Additional Platform Services

The precise service set changes across Android versions and device configurations.

The important architectural principle is that Android centralizes many privileged system functions in framework services rather than allowing arbitrary applications to perform them directly.

5. Binder: Android’s IPC Foundation

Android is inherently multi-process.

An application process is separated from system processes.

System services are separated into protected execution contexts.

Hardware interfaces may exist in additional processes.

These components must communicate.

Binder IPC provides the principal mechanism.

AOSP’s current documentation states that AIDL is used to define programming interfaces that use Binder for IPC, and that Binder interfaces can connect platform components and other processes.

A simplified flow is:

Application Process
       │
       ▼
Binder Proxy
       │
       ▼
Binder Driver
       │
       ▼
Binder Stub
       │
       ▼
System Service

This is simplified, but it illustrates the architectural idea.

6. Why Binder Matters

Binder provides more than simple message passing.

It supports controlled communication between processes while allowing Android to maintain process and security boundaries.

A service can identify the caller and apply appropriate permissions.

For example:

Application
     ↓
Binder Request
     ↓
System Service
     ↓
Identity / Permission Check
     ↓
Operation

This is one reason Binder is deeply embedded in Android’s architecture.

7. AIDL and Binder

AIDL — Android Interface Definition Language — provides a formal way to define interfaces used for IPC.

AOSP describes AIDL as a tool for abstracting IPC and notes that it can be used between platform components and applications, although SDK APIs themselves do not directly expose AIDL interfaces as their public application API.

Stable AIDL adds interface compatibility tracking for components that need a stable interface across independently updated software components.

This becomes especially important in modern Android because different platform components and hardware interfaces need to evolve without breaking the rest of the system.

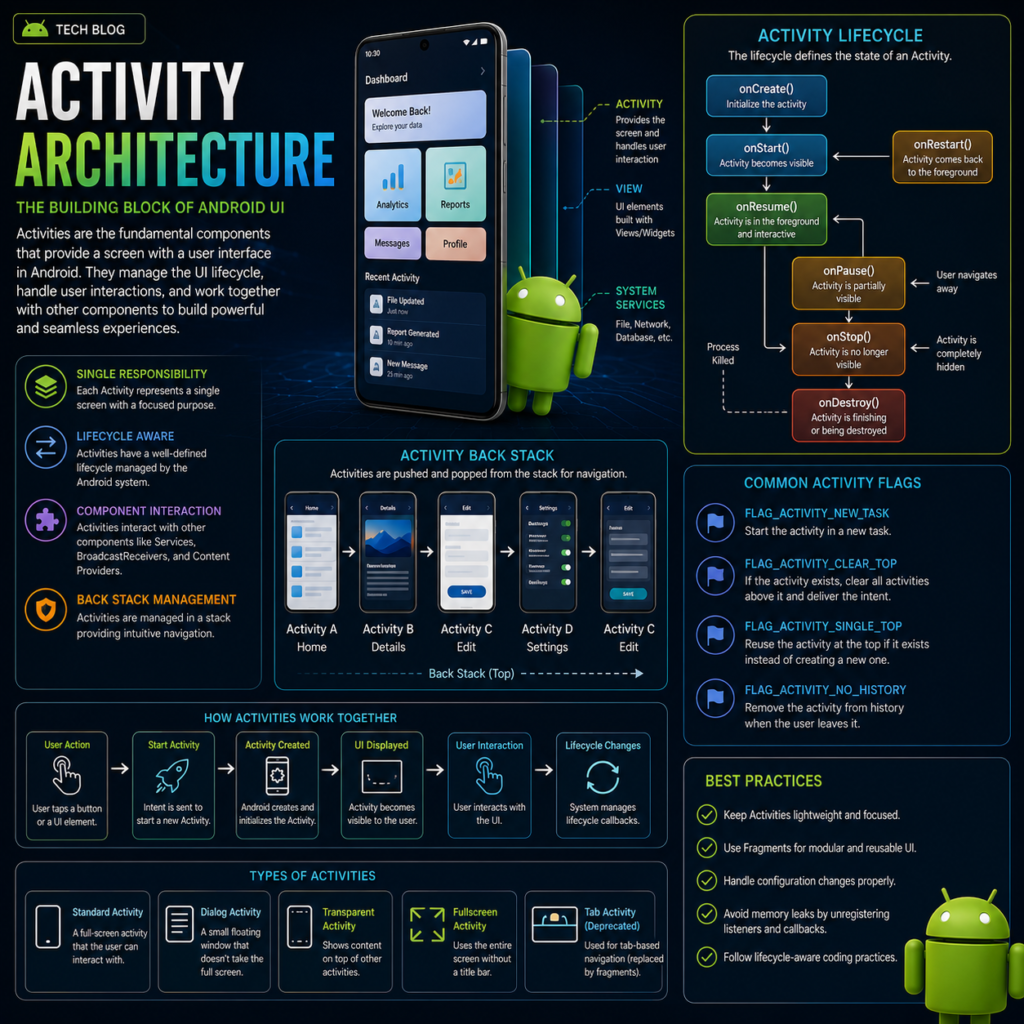

8. Activity Architecture

Android applications are not simply executables that run indefinitely.

The platform manages application components and lifecycle states.

An Activity generally represents a user-facing interaction surface.

The system needs to coordinate:

starting activities;
stopping activities;
switching between applications;
restoring state;
handling configuration changes;
managing tasks;
handling multi-window behaviour.

This requires system-level lifecycle management.

9. Application Lifecycle

A simplified lifecycle can be represented as:

Created
   ↓
Started
   ↓
Resumed
   ↓
Paused
   ↓
Stopped
   ↓
Destroyed

The actual lifecycle is more nuanced and depends on configuration, task state and system conditions.

The central principle is that Android controls application execution according to user activity and system resources.

An application that is no longer visible does not necessarily receive the same resources as an application the user is actively using.

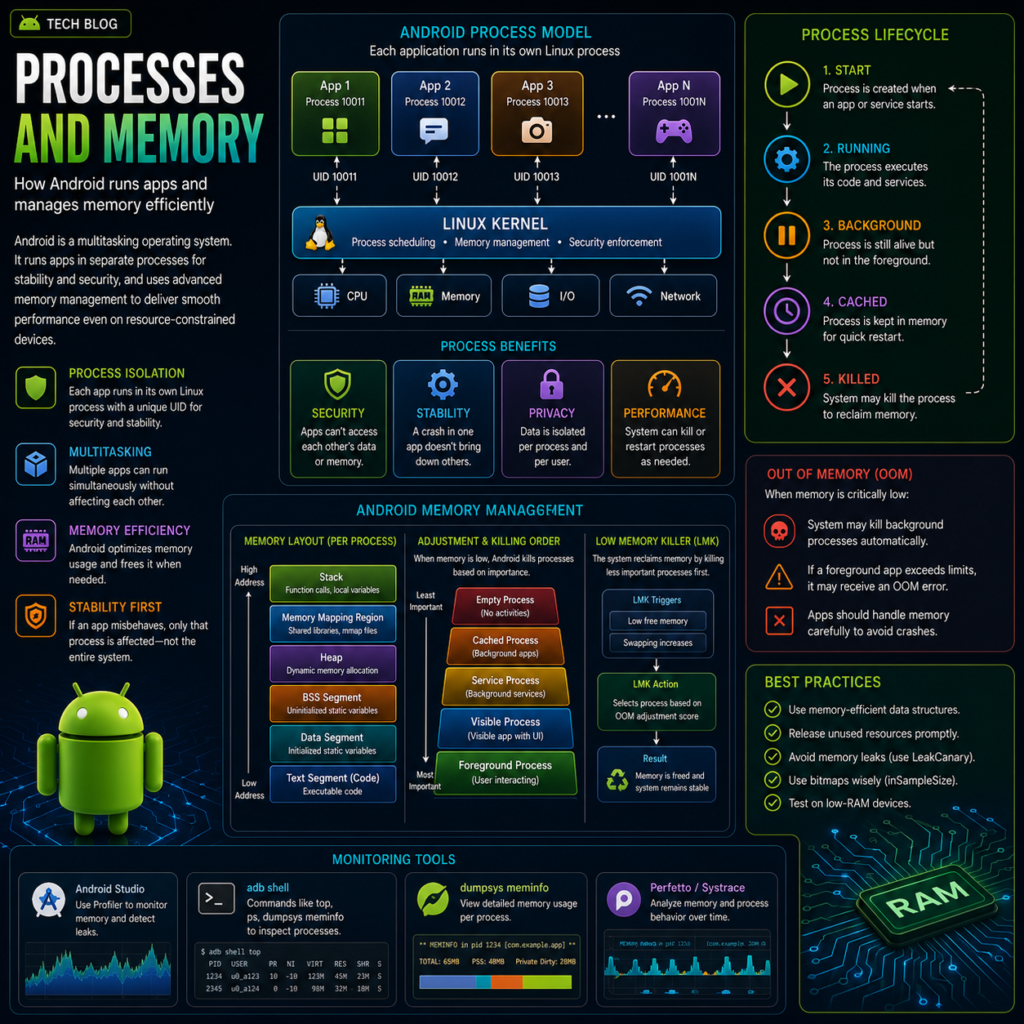

10. Processes and Memory

Mobile devices have finite resources.

Android therefore needs to manage processes aggressively.

A device might have dozens of installed applications, but it cannot keep every application equally active indefinitely.

The system can:

prioritize foreground work;
restrict background execution;
reclaim memory;
stop processes;
restore application state.

This creates an important difference between desktop and mobile operating-system design.

Android must continuously balance:

Responsiveness + battery life + memory + thermal limits

11. Package Management

Android needs to know what applications exist on the device.

The package-management infrastructure handles information associated with installed application packages.

This includes information such as:

package identity;
version;
application components;
permissions;
signatures;
installation state;
application metadata.

When an application is installed, Android does not simply copy an executable into a directory.

The platform incorporates the package into its security and application-management model.

12. Android Application Components

Android’s application architecture is built around several major component types.

Activity

Provides a user-facing interaction surface.

Service

Provides a component capable of performing work without necessarily presenting a user interface.

Broadcast Receiver

Responds to broadcast events.

Content Provider

Provides structured access to shared data.

These components allow Android applications to expose specific functionality without exposing their entire implementation.

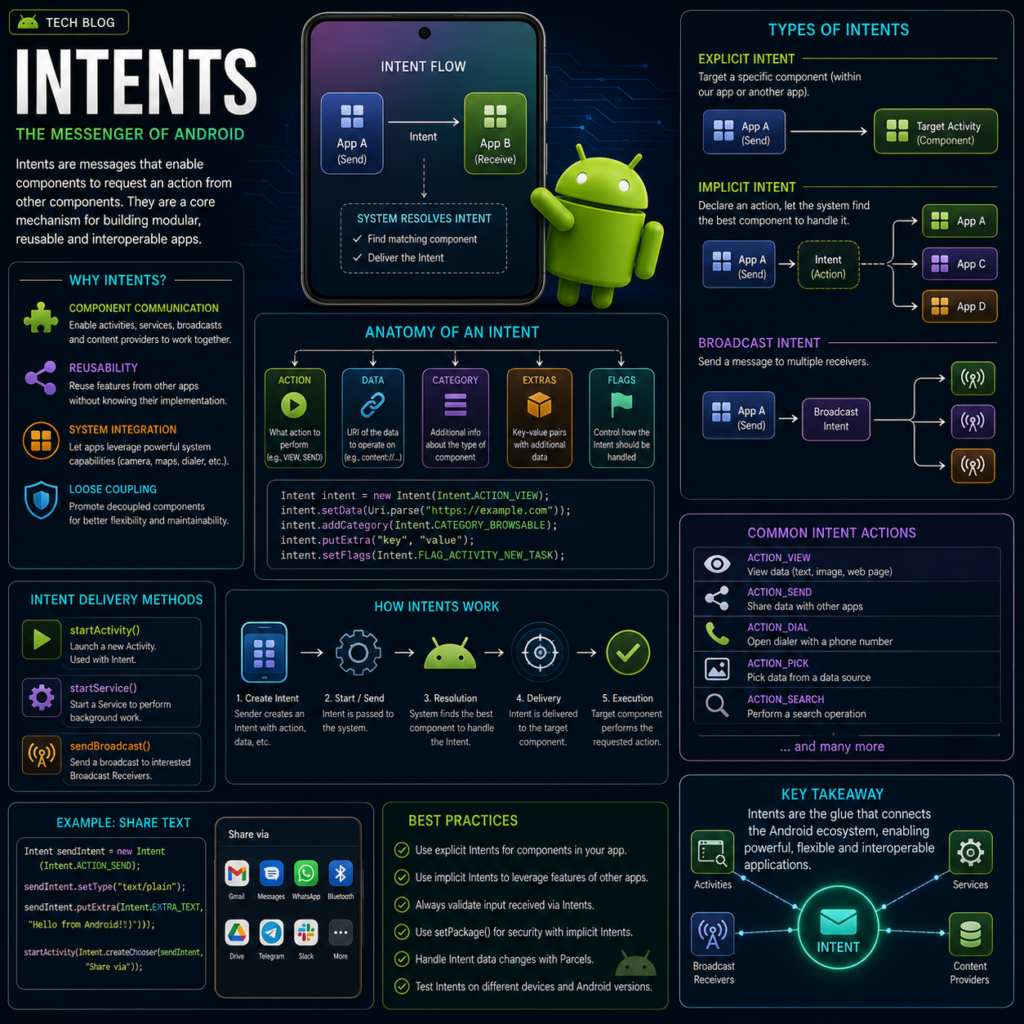

13. Intents

An Intent represents an operation or request that can be handled by another Android component.

For example:

Application
    ↓
Intent
    ↓
Android System
    ↓
Matching Component

A user might select a photograph.

An application can request a system-supported picker rather than implementing its own complete storage-selection environment.

An application can request that another application handle a web URL.

The operating system provides the mechanism for connecting those components.

14. Window Management

The Android Window Manager and related display infrastructure coordinate application windows and surfaces.

This becomes increasingly important as Android supports:

split-screen;
picture-in-picture;
foldables;
large screens;
desktop-style interfaces;
external displays;
multiple display environments.

The operating system therefore has to understand more than a single full-screen application.

It must coordinate multiple visual surfaces.

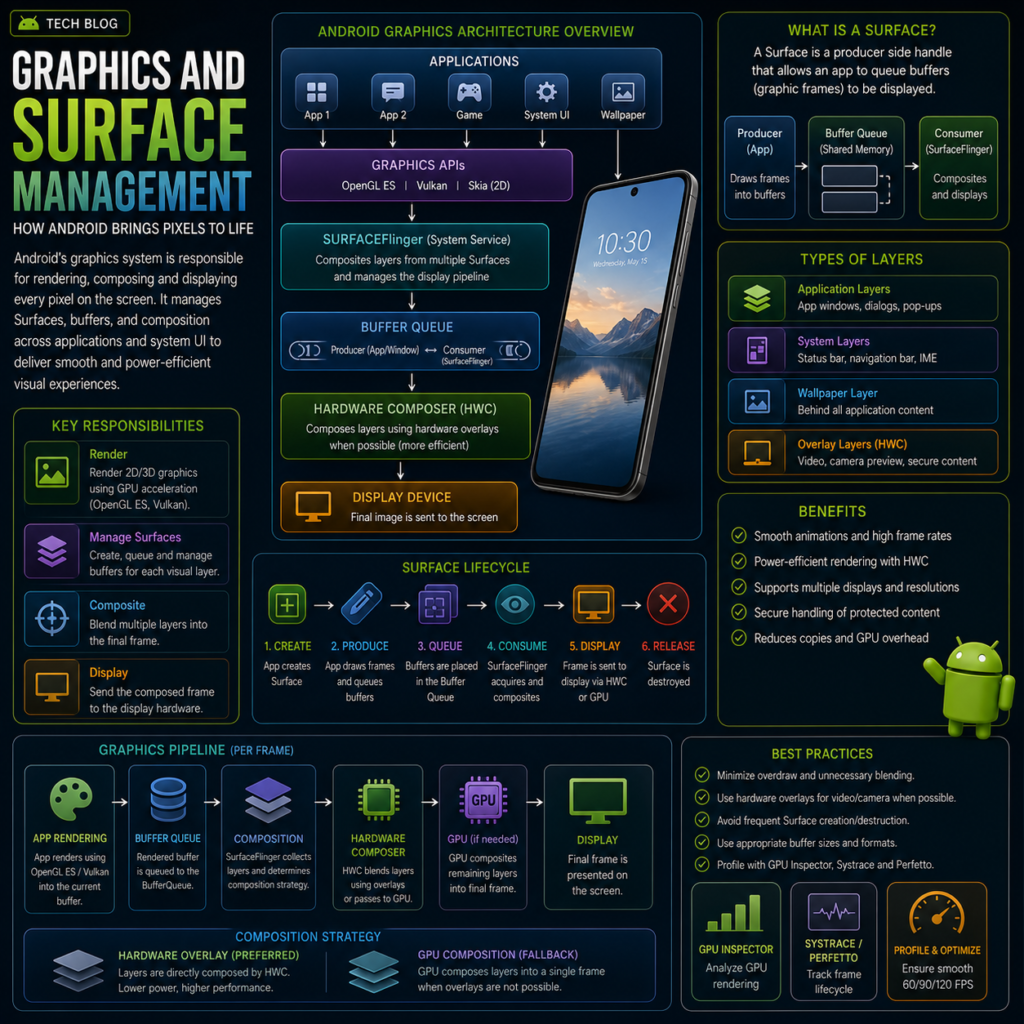

15. Graphics and Surface Management

Applications generate graphical content.

Android must then coordinate that content with:

display surfaces;
compositing;
graphics APIs;
GPU hardware;
display controllers.

A simplified model is:

Application UI
      ↓
Android Graphics APIs
      ↓
Surface / Window System
      ↓
Graphics Stack
      ↓
GPU
      ↓
Display Controller
      ↓
Panel

This architecture becomes increasingly complex at high refresh rates, HDR resolutions and multi-display configurations.

16. Notification System

Notifications are another example of operating-system mediation.

Applications submit notification information to Android.

The operating system then manages:

notification permissions;
channels;
priority;
grouping;
presentation;
lock-screen behaviour;
user controls.

This centralization prevents applications from independently controlling every aspect of the user’s attention.

It also gives users a common interface for managing application notifications.

17. Permission Architecture

Android applications operate within a permission system.

Sensitive capabilities may include:

camera;
microphone;
location;
contacts;
photos and videos;
nearby devices;
notifications.

The Android platform determines which permissions exist, how they are requested and what access they provide.

This is important because an application should not automatically have unrestricted access to every device capability.

The permission system forms one layer of Android’s larger security architecture.

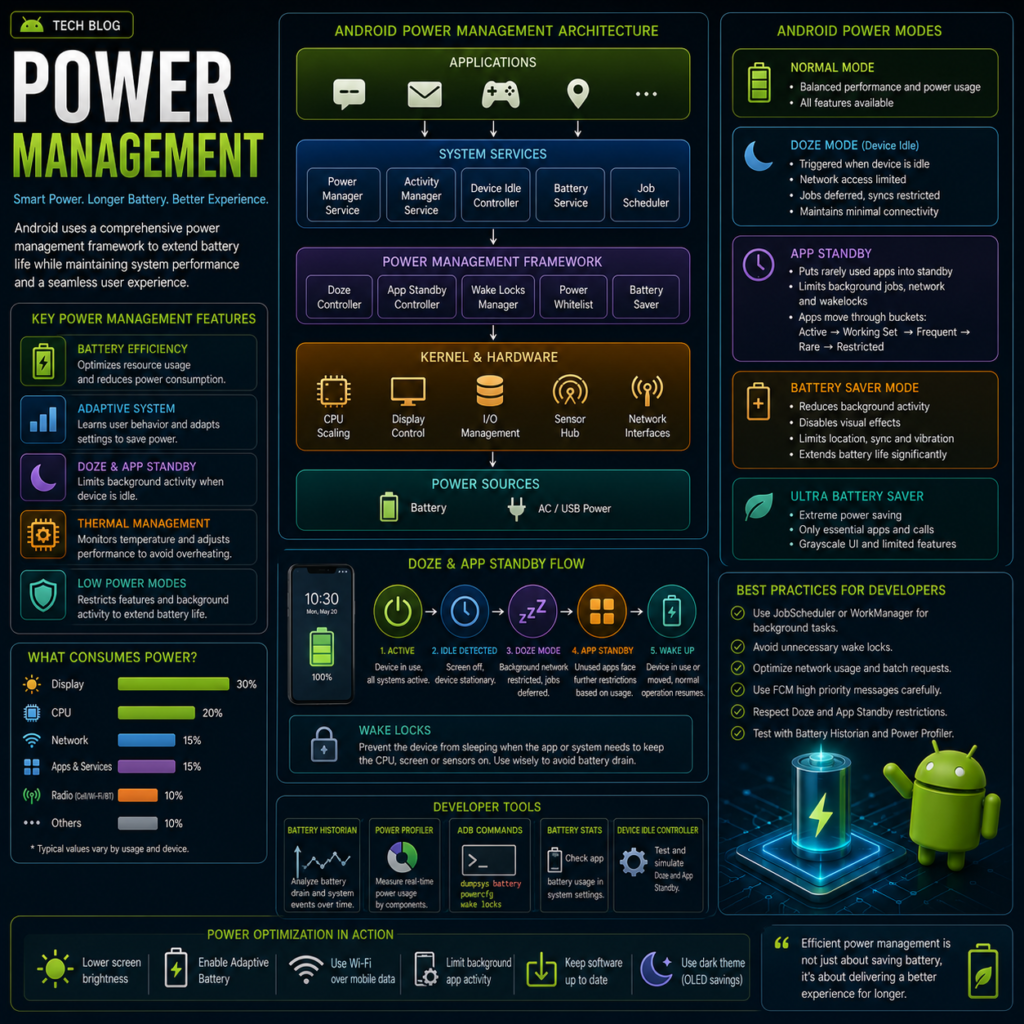

18. Power Management

Power management is a fundamental mobile OS problem.

A smartphone must provide high performance when required while minimizing unnecessary energy consumption.

Android therefore manages:

CPU activity;
background execution;
network access;
wakeups;
application activity;
device idle states;
charging;
thermal conditions.

Power management can interact with almost every other subsystem.

For example, an AI workload can increase CPU/NPU usage.

A camera workload can increase ISP, GPU and display activity.

A game can simultaneously stress CPU, GPU, memory and display.

The operating system has to coordinate those competing requirements.

19. Connectivity

Modern Android devices may support:

cellular connectivity;
Wi-Fi;
Bluetooth;
NFC;
USB;
VPN;
tethering;
hotspot functionality.

Applications access these capabilities through framework APIs and system services.

Again, the application does not normally communicate directly with the modem or Wi-Fi chipset.

The platform abstracts the underlying implementation.

20. Location

Location demonstrates how multiple technologies can be combined behind one API.

A smartphone may derive location from:

GNSS;
cellular networks;
Wi-Fi;
Bluetooth;
other sensors.

An application generally requests location through Android’s location framework rather than directly controlling each source.

This allows the platform to combine multiple sources and apply security and permission policies.

Digital Plaza Analysis

The Android Framework is where the architecture becomes recognizable as a modern operating system.

Part I answered:

How does Android communicate with hardware and execute application code?

Part II answers:

How does Android manage the entire computing environment around those applications?

The answer is Framework APIs and system services.

The Framework exposes capabilities.

System Services implement privileged operations.

Binder connects processes.

AIDL defines modern interfaces.

Package management controls applications.

Activity and task management controls application lifecycle.

Window systems control visual surfaces.

Permission systems regulate access.

Power and connectivity services manage shared resources.

The result is an operating environment in which applications can operate without directly controlling the hardware.

The architectural hierarchy is therefore:

APPLICATION
     ↓
FRAMEWORK API
     ↓
SYSTEM SERVICE
     ↓
BINDER / AIDL
     ↓
NATIVE / HAL
     ↓
KERNEL
     ↓
HARDWARE

This is the central abstraction model of Android.

What to Watch Next

The more powerful Android becomes, the more important security becomes.

An application may request access to:

private data;
camera;
microphone;
location;
files;
network;
connected devices.

Android therefore needs security mechanisms operating at multiple levels.

That leads to the next major architectural dimension:

application sandboxing, permissions, SELinux, Verified Boot, hardware-backed security, encryption and update integrity.

At the same time, AI is beginning to introduce a new system-level consumer of these resources.

The future Android architecture will therefore have to manage both security-sensitive applications and increasingly powerful AI workloads.

Conclusion

The Android Framework and System Services form the operational core of Android.

They transform the lower platform into an environment capable of managing applications, windows, packages, permissions, notifications, connectivity, media, sensors, power and countless other functions.

Binder provides the communication infrastructure that connects these processes and services, while AIDL provides modern interface definitions for many platform IPC boundaries.

This architecture gives developers a stable programming model while allowing Android to evolve internally.

It also explains why Android can support an extraordinary range of hardware and form factors.

But abstraction alone is not enough.

The operating system must ensure that applications and system components cannot misuse the capabilities they receive.
